Relay Module Accessories; 2098-9737 Relay Module Wiring - Simplex 4098 Applications Manual

Relay Module Accessories

The 2098-9737 Relay module is used with 4098-9791 sensor base. Install the relay module using
2098-9737
Figure 3-7 and the figure below as a reference.
Relay Module Wiring
FROM PANEL
Notes:
1. 18 to 32 VDC 24 mA typical/35 mA maximum.
2. Contact A or B: dry, Form C, each rated 3 amps at 28 VDC/115 VAC, resistive.
3. Maximum wire length between sensor and relay module is 100 feet.
+ 4VDC
SEE NOTE 1
CENTER
CONTACT B
N.C.
SEE NOTE
N.O.

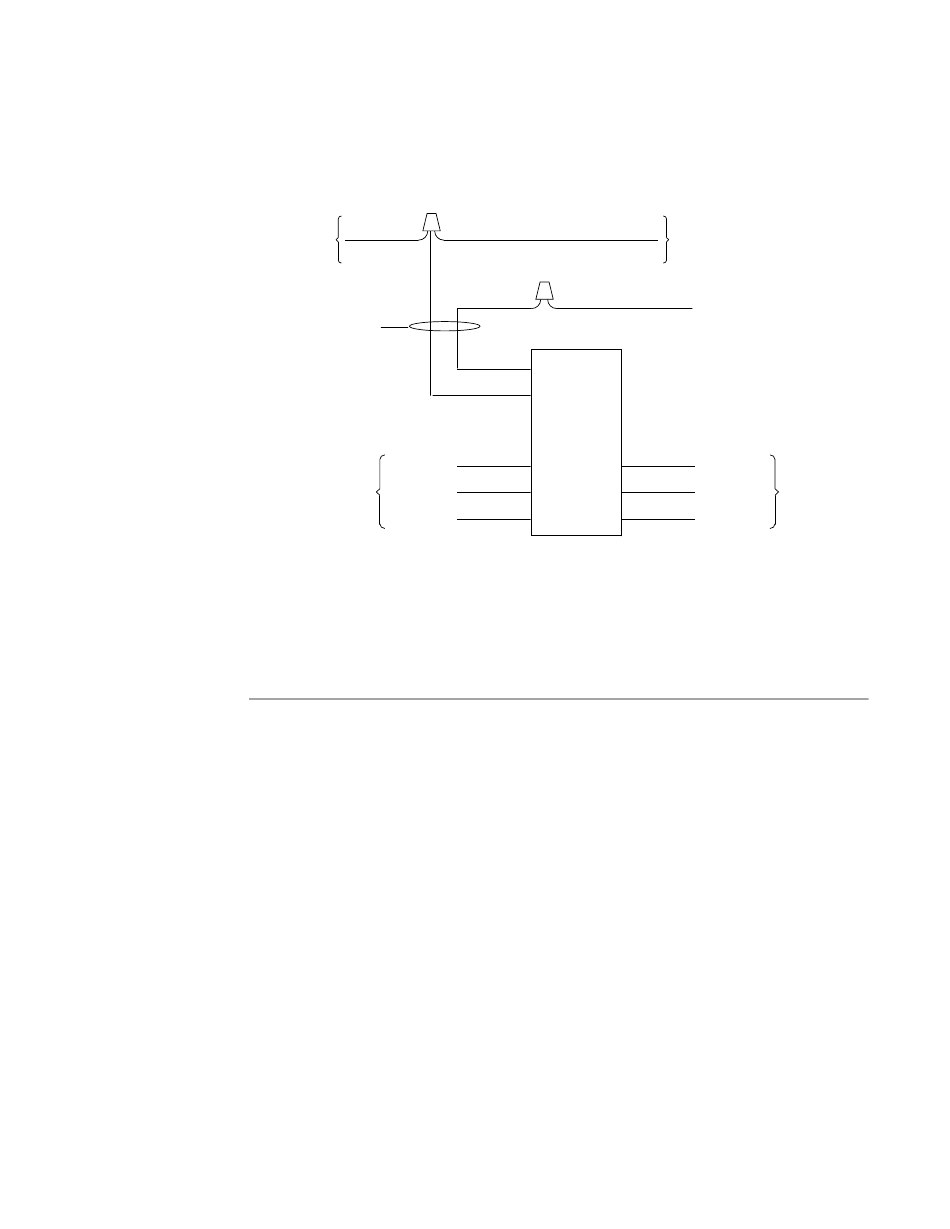

Figure 4-1. 2098-9737 Relay Module Wiring
firealarmresources.com
+ 4VDC
BLACK/WHITE
BLACK
098-9737
BLACK
RELAY
ORANGE
BLUE
VIOLET YELLOW
GREY GREEN
4-2
TO OTHER 4VDC
DEVICES OR
SUPERVISORY MODULE
TO 4098-9791
SENSOR BASE
SEE NOTE 3
CENTER
CONTACT A
N.C.
SEE NOTE
N.O.
Continued on next page
