Simplex 4098 Applications Manual page 41

4098 TrueAlarm Sensor Bases,
CRS Replacement Installing the replacement CORC (refer to photo below)
Instructions
1.
2.
3.
4.
5.
6.
Continued
Remove the replacement CORC from its packaging.
Hook the loop of the CORC on the tab in the outer rim of the base (center of the CORC below
the CO sensor cylinder)
Gently rotate the CORC inward until it snaps onto the CO SSD Sensor Base.
Re-install the detector head.
Remove the dust cover from the CORC (shown to the side below).
The CORC replacement is complete.

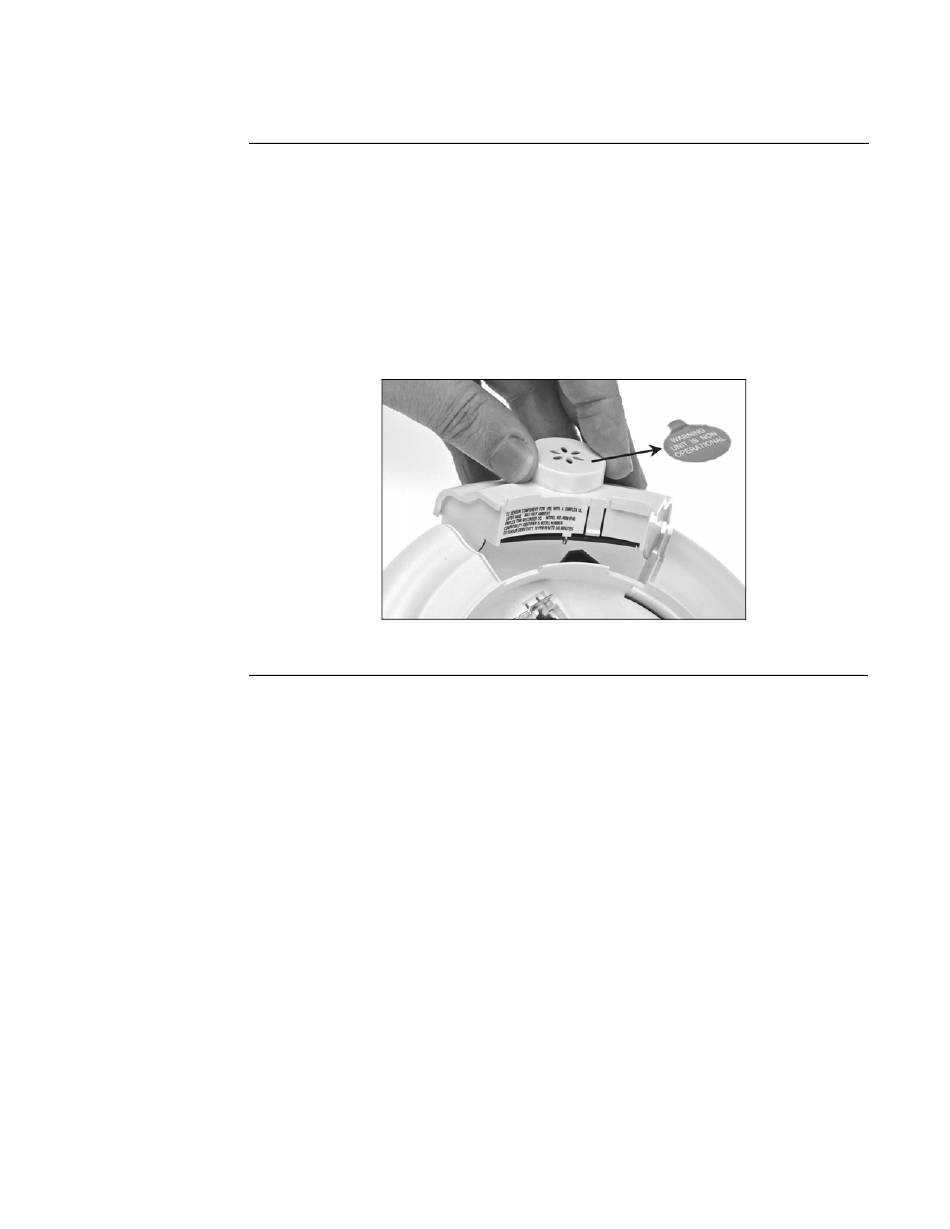

Figure 3-10. Installing the replacement CORC
firealarmresources.com
3-11
