4098 Smoke Detectors,

Specifications

Specifications
Detector
PID (4098)
Type of Detector
Working Voltage
(2-wire)
Rated Voltage
(4-wire)
Input Ripple
Voltage
Max. Alarm
Current
Surge Current
Standby Current
Heat Element
Rating
Humidity Range
(Non-Condensing)
Air Velocity
Range
Continued

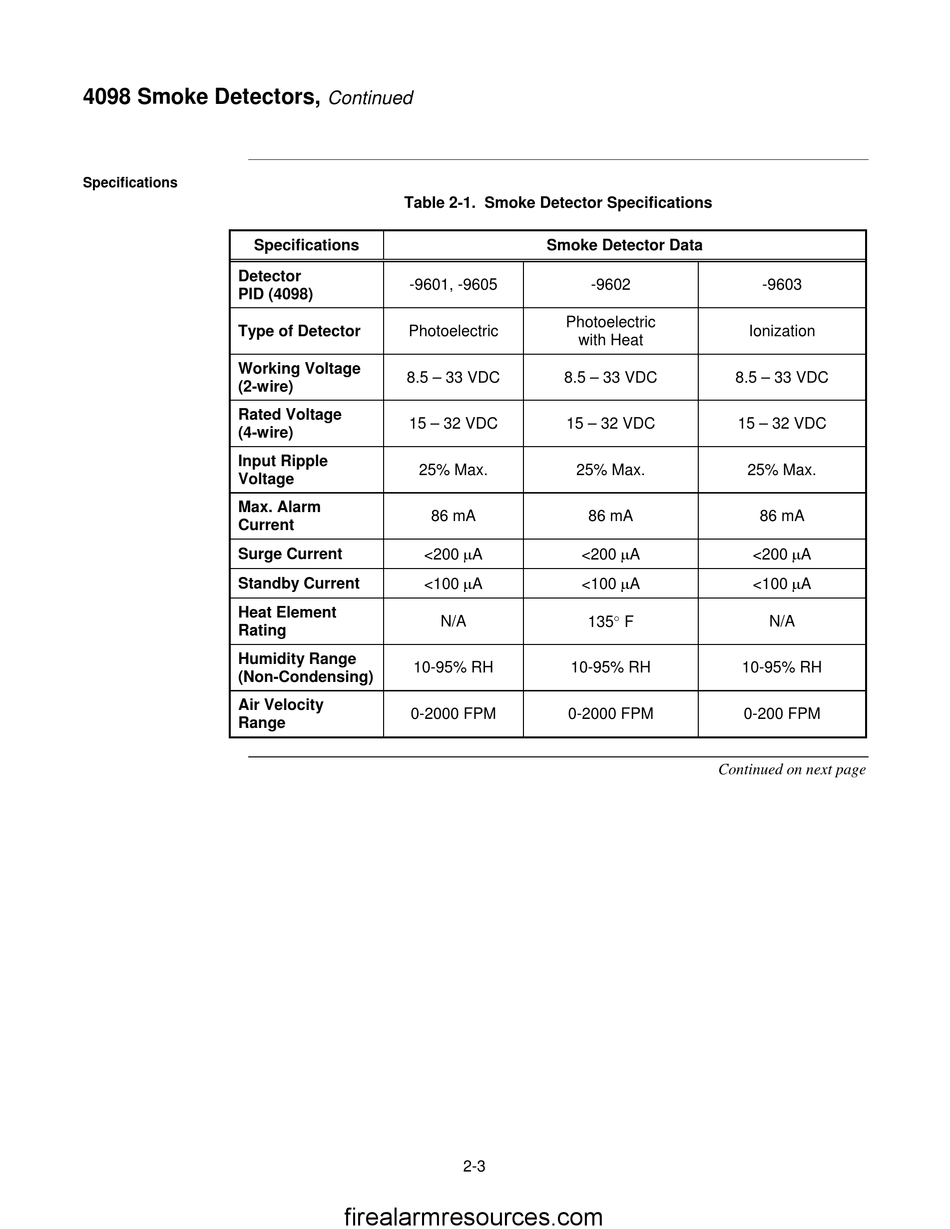

Table 2-1. Smoke Detector Specifications
-9601, -9605
Photoelectric
8.5 – 33 VDC
15 – 32 VDC
25% Max.
86 mA
<200 A
<100 A
N/A
10-95% RH
0-2000 FPM
2-3
firealarmresources.com
Smoke Detector Data
-9602
Photoelectric
with Heat
8.5 – 33 VDC
15 – 32 VDC
25% Max.
86 mA
<200 A
<100 A
135 F
10-95% RH
0-2000 FPM
Continued on next page
-9603
Ionization
8.5 – 33 VDC
15 – 32 VDC
25% Max.
86 mA
<200 A
<100 A
N/A
10-95% RH
0-200 FPM
