579-1167, for more information on how to enable/disable the operations on the Color Touchscreen LCD Annunciator. * = The user interfaces for the 4007ES and the 4007ES Hybrid FACPs are identical and referred to collectively as 4007ES in this document.

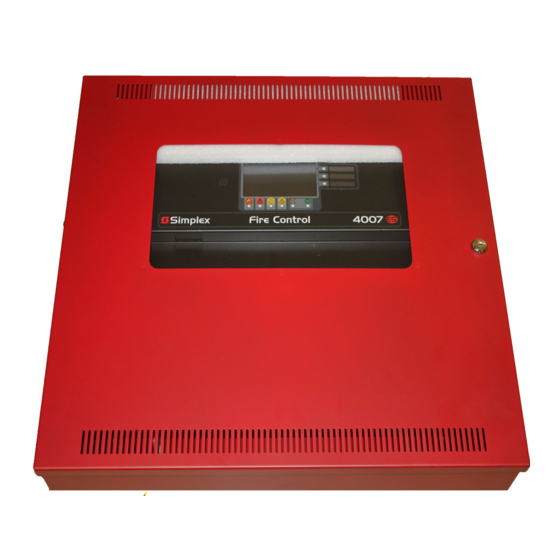

Bi-Color User Defined LEDs Slide-in Labels Fire LED Power LED Alarm Silenced LED Priority 2 LED Supervisory LED Trouble LED Figure 1. 4007ES User Interface Piezo Touchscreen Bi-Color User Defined LEDs Slide-in Labels Keyswitch Fire LED Power LED Alarm Silenced LED...
4007ES Operator’s Manual (579-1165) Alarm Conditions An alarm condition occurs when an initiating device (such as a manual pull station, Alarm Conditions smoke detector, etc.) activates. The panel indicates the presence of the alarm Overview: condition by: • Displaying messages on the user interface.
Page 6
4007ES Operator’s Manual (579-1165) Alarm Conditions, Continued Processing Alarms: There are three actions that may be taken when an alarm condition occurs: 1. Acknowledge an Alarm 2. Silence the Alarm 3. Reset the System Each step is explained in detail in the rest of this section.
Page 7
4007ES Operator’s Manual (579-1165) Alarm Conditions, Continued Silence the Alarm: Silencing an alarm turns off all the audible notification appliances that are programmed to turn off when it is pressed. 1. Tap the Alarm Functions button. Date Fire Alarm in System...
Page 8
4007ES Operator’s Manual (579-1165) Alarm Conditions, Continued Reset the System: Resetting the system allows it to return to a normal state after alarm activation. IMPORTANT: Reset the system only after the source of the alarm is determined and dealt with.
Page 9
4007ES Operator’s Manual (579-1165) Alarm Conditions, Continued Viewing the Alarm Condition Each alarm condition contains detailed information on the point (or points) that have Details: triggered it. To access that info: 1. Tap on a desired alarm condition from the Fire Alarm in System screen. That alarm condition can either be a point or a zone containing a variety of points.
4007ES Operator’s Manual (579-1165) Supervisory and Trouble Conditions A Supervisory condition indicates a problem with the building’s automatic sprinkler Supervisory and Trouble system or some other system used for the protection of life and property. Conditions Overview: A Trouble condition indicates the presence of a circuit break, or a ground, within a system point, or somewhere between the FACP and one of its points.
Page 11
4007ES Operator’s Manual (579-1165) Supervisory and Trouble Conditions, Continued Processing Supervisory and When a Supervisory or a Trouble event occurs, it needs to be acknowledged and the Trouble Conditions: cause of the event resolved for the system to return to normal. Two types of acknowledging modes can be configured on the panel.
Page 12
4007ES Operator’s Manual (579-1165) Supervisory and Trouble Conditions, Continued Viewing the Supervisory and Each Supervisory or Trouble condition contains detailed information on the point (or Trouble Conditions Details: points) that have triggered it. To access that info (Trouble screen is shown as an example): 1.
4007ES Operator’s Manual (579-1165) Main Menu Main Menu The Main Menu screen displays the functions available at the panel and can be accessed by: Overview: • Tapping anywhere on the touchscreen to remove the screensaver image. • Tapping the Menu button on the user interface if the user interface is in use.
Chart (Figure 6) shows functions with associated default user access levels. 3. The ES Panel Programmer can be used to modify default user access levels for each function, or set user access level passcodes. Refer to document 579-1167: 4007ES Panel Programmer’s Manual for more details.
Page 15
4007ES Operator’s Manual (579-1165) User Access Level, Continued Main Menu Diagnostics Alarm Log System Info Panel Setup Report Menu Clear TrueAlert NAC Test AlarmLog Earth Fault Latch TrueAlarm CO Card Swap Config HW Reset Revisions TroubleLog Trouble Log Active List...
4007ES Operator’s Manual (579-1165) System Info System Info Use the System Info function to obtain detailed information regarding the panel and its Overview: components. Tap on a menu icon to access that option’s main screen. Refer to Figure 6 for access levels required to use each option inside the System Info screen.
Page 17
Remote Annunciator. BOOTLOADER REV: 1.01.00.03 KERNEL REV: 1.01.00.10 FILESYSTEM REV: 1.01.01.15 PANELUI: 1.01.02.16 IP Info: Tap the IP Info button to see the IP and the MAC address of the 4007ES Date IP Info Time panel. IP ADDRESS: 192.168.1.150...
4007ES Operator’s Manual (579-1165) Panel Setup Panel Setup Overview: Use the Panel Setup function to modify the configuration of the basic panel components. Tap on a menu icon to access that option’s main screen. Refer to Figure 6 for access levels required to use each option inside the Panel Setup screen.
Page 19
4007ES Operator’s Manual (579-1165) Panel Setup, Continued Mass Storage: Tap the Mass Storage button to access the functions listed below. The Mass Storage USB key must be inserted in the USB Port slot of the 4007 CPU Card for the Mass Storage button to work.
4007ES Operator’s Manual (579-1165) Alarm Log Alarm Log Overview: The Alarm Log screen contains a list of alarms that the panel has received. Refer to Figure 6 for access levels required for each option inside the Alarm Log screen. Screen Buttons:...
4007ES Operator’s Manual (579-1165) Trouble Log Trouble Log Overview: The Trouble Log screen contains a list of Troubles that the panel has received. Refer to Figure 6 for access levels required for each option inside the Trouble Log screen. Screen Buttons:...
4007ES Operator’s Manual (579-1165) Search Search Overview: Use the Search screen to look for configured points under panel control. Refer to Figure 6 for access levels required for each option inside the Search screen. Screen Buttons: Scroll down Return Erase...
4007ES Operator’s Manual (579-1165) Diagnostics Diagnostics Overview: Use the Diagnostics function to run tests on the panel and the devices. Refer to Figure 6 for access levels required for each option inside the Diagnostics screen. Screen Buttons: Scroll Up Scroll down...
Page 24
4007ES Operator’s Manual (579-1165) Diagnostics, Continued Piezo Silence: Tap the Piezo Silence button to access the Piezo Silence Menu Piezo Silence Menu screen, where the On or Off buttons can be used to control the piezos USER at the panel and turn the Remote Annunciator’s piezo on or off.
Page 25
4007ES Operator’s Manual (579-1165) Diagnostics, Continued Earth Fault Latch: Tap the Earth Fault Latch button to access the Earth Latch Menu Date Earth Latch Menu Time screen, which can be used to latch intermittent earth fault Troubles to USER the panel. This allows the panel to consistently display a Trouble...
Page 26
4007ES Operator’s Manual (579-1165) Diagnostics, Continued TrueAlert Test: Tap the TrueAlert Test button to access the TrueAlert Tests Menu Date TrueAlert Tests Menu Time screen, where tests for TrueAlert addressable notification appliances TrueAlert USER TrueAlert TrueAlert ES TrueAlert Silent can be performed. The following functions are available:...
Page 27
4007ES Operator’s Manual (579-1165) Diagnostics, Continued Install Mode: Install Mode is a feature that minimizes the number of Troubles Date Install Mode Menu Time that occur when the system is being installed or is undergoing USER IViewMod IAddMiss IAddOpens IRemvNorm...
1. Press the Options button and then press 1. Insert the USB key inside the USB Select to choose a printer. Port of the 4007ES CPU Card. 2. In the Report Menu screen, press a 2. Press a report button to save the report button to print the report.
Page 29
4007ES Operator’s Manual (579-1165) Report Menu, Continued TrueAlarm Service: Tap the TrueAlarm Service button to generate a report which contains the following information: • Device Number • Custom Label • Alarm Level (sensitivity level of the device) • Average Value •...
Page 30
4007ES Operator’s Manual (579-1165) Report Menu, Continued Active List: Tap the Active List button to access the Print Active List screen, where the Install Mode button can be used to generate a report containing the following Install Mode list information: •...
