Simplex 4098 Applications Manual page 29

Detectors, sensors, and bases
Hide thumbs Also See for 4098:
Table of Contents

Advertisement

4098 Bases,
Continued
Wiring
FigureTag FD4-709-06
RESETABLE
POWER
SOURCE
24VDC
INITIATING
CIRCUIT
LISTED
SIMPLEX
FIRE ALARM
CONTROL
PANEL
2120,
4001, 4002
4020, 4100+, 4100U
4100ES ,
4004, 4005 OR 4006
Notes:
1. If used, 4098-9830 remote LED is polarized, observe color-coded wiring.
2. Aux. Alarm contacts - Form C - each rated 3 amps at 28 VDC/115 VAC, resistive.
3. Refer to wiring diagrams provided with system panel for proper EOL resistor value.
+
REMOTE LED
-
4098-9830
(SEE NOTE 1)
RED
+
-
BLK
RED
ORG
ORG
GRN
GRN
N/C
VIO
BLU
N/O
GRY
BLK
BLK
RELAY

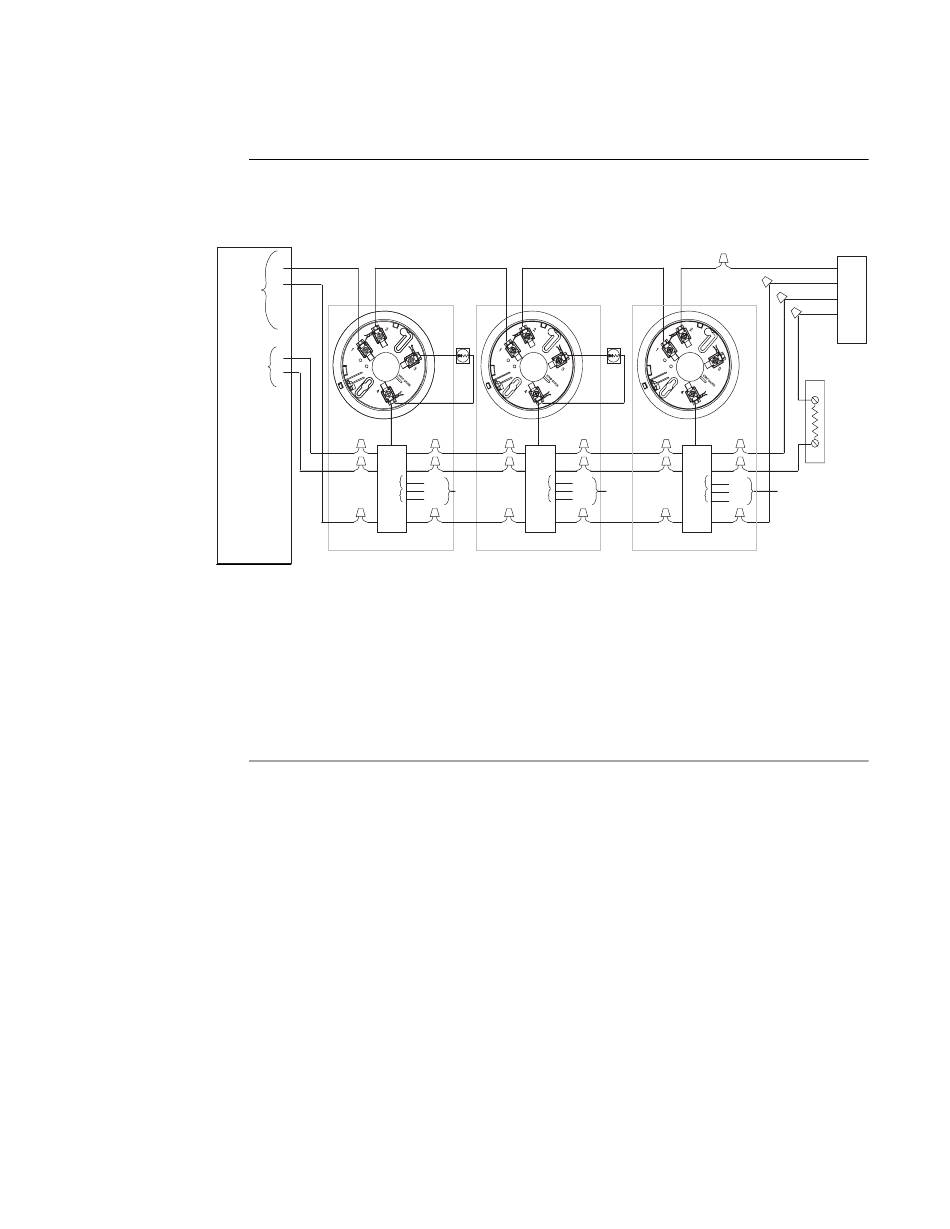

Figure 2-5. 4098-9682 4-Wire Base Connections for Style B Initiating Circuits
(Refer to Figure 2-6 to wire remote LED to heat detector.)
firealarmresources.com
REMOTE LED
4098-9830
(SEE NOTE 1)
RED
BLK
RED
ORG
ORG
GRN
GRN
N/C
VIO
SEE
SEE
BLU
NOTE
NOTE
N/O
GRY
6
6
BLK
BLK
RELAY
2-13
RED
BLK
YEL
YEL
RED
ORG
ORG
GRN
GRN
N/C
VIO
SEE
BLU
NOTE
N/O
GRY
6
BLK
BLK
RELAY
Continued on next page
24VDC
EOL RELAY
2098-9735
OR
2098-9739
EOL
RESISTOR
(SEE NOTE 3)
