4098 TrueAlarm QuickConnect Smoke Sensors,
Specifications
The 4098-9757 QuickConnect2 sensor requires the 4098-9788 base.
The 4098-9757 QuickConnect2 sensor is only compatible with the 4010, 4100U and 4100ES (with
4100-3106). The sensors obtain both power and data over IDNet wiring.
Setting the
Each QuickConnect sensor has a unique address. This address is associated with a custom label
Sensor's Address
that identifies its physical location within a building. The sensor's address and location must
match up with the address listed in the Programmer's Report for the 4010, 4100U or the 4100ES.
Use the method described in the "4098 TrueAlarm Sensor Bases" section of this chapter to
complete the sensor setup. Refer to the figure below for the location of the DIP Switches.
Double-check the location of the QuickConnect sensor and its address before proceeding to
electrical installation (see Figures 3-12 and 3-13).

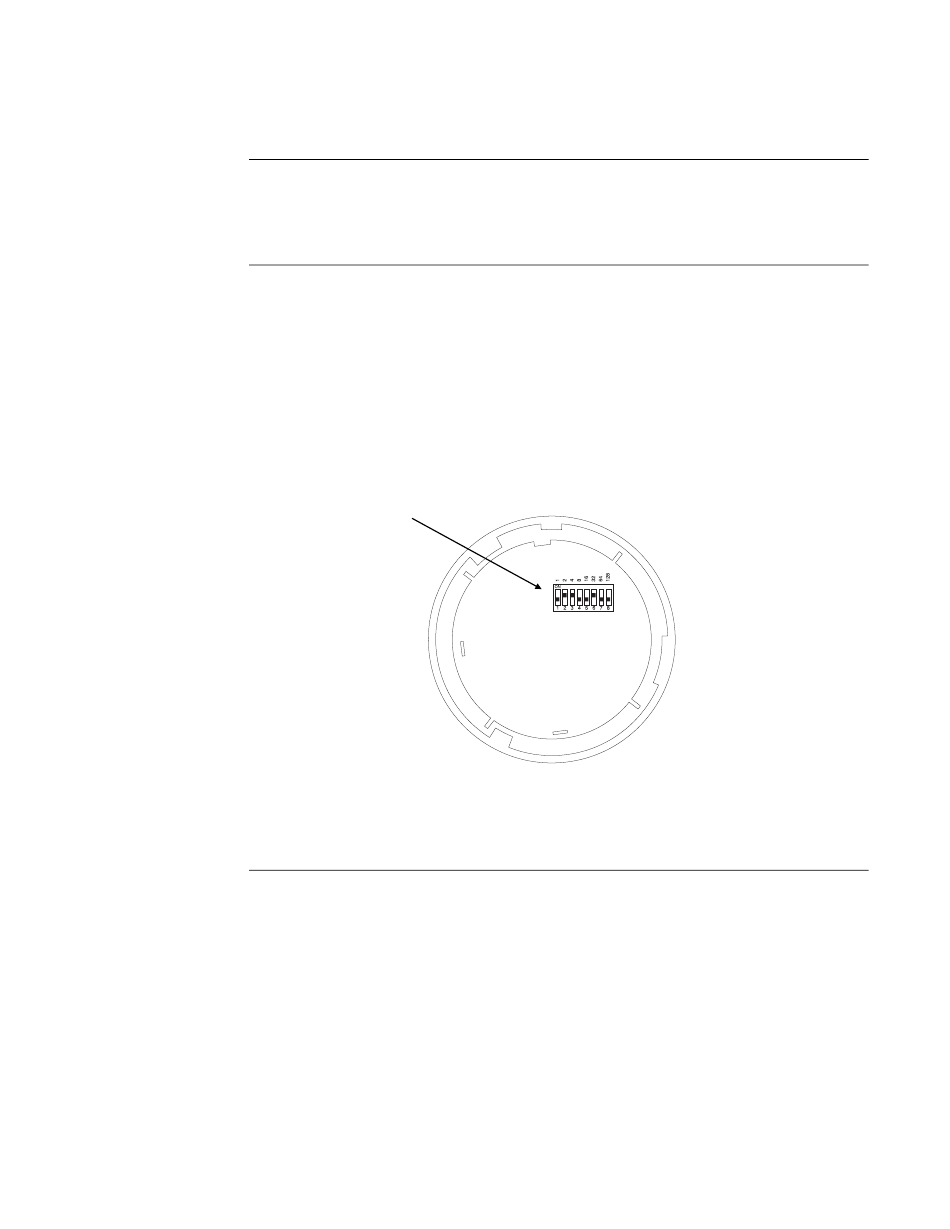

Address DIP Switches
Figure 3-11. Location of DIP Switches on QuickConnect Sensor
3-13
firealarmresources.com
Continued
4098-9757
Continued on next page
