5. Punch out the knockout for the door lock and install the lock
To install a CHS-4, complete the following steps and refer to Figure 12.
Installing the
CHS-4 Chassis
1. Place the CHS-4 over the screw mounts on the cabinet.
2. Connect a grounding cable assembly (71073) to one of the screw
3. Secure the assembly with the two nuts provided.
Repeat this procedure for each CHS-4 in the cabinet.
All manuals and user guides at all-guides.com
mechanism. Make sure you do this last, so that you knock out the
correct side.

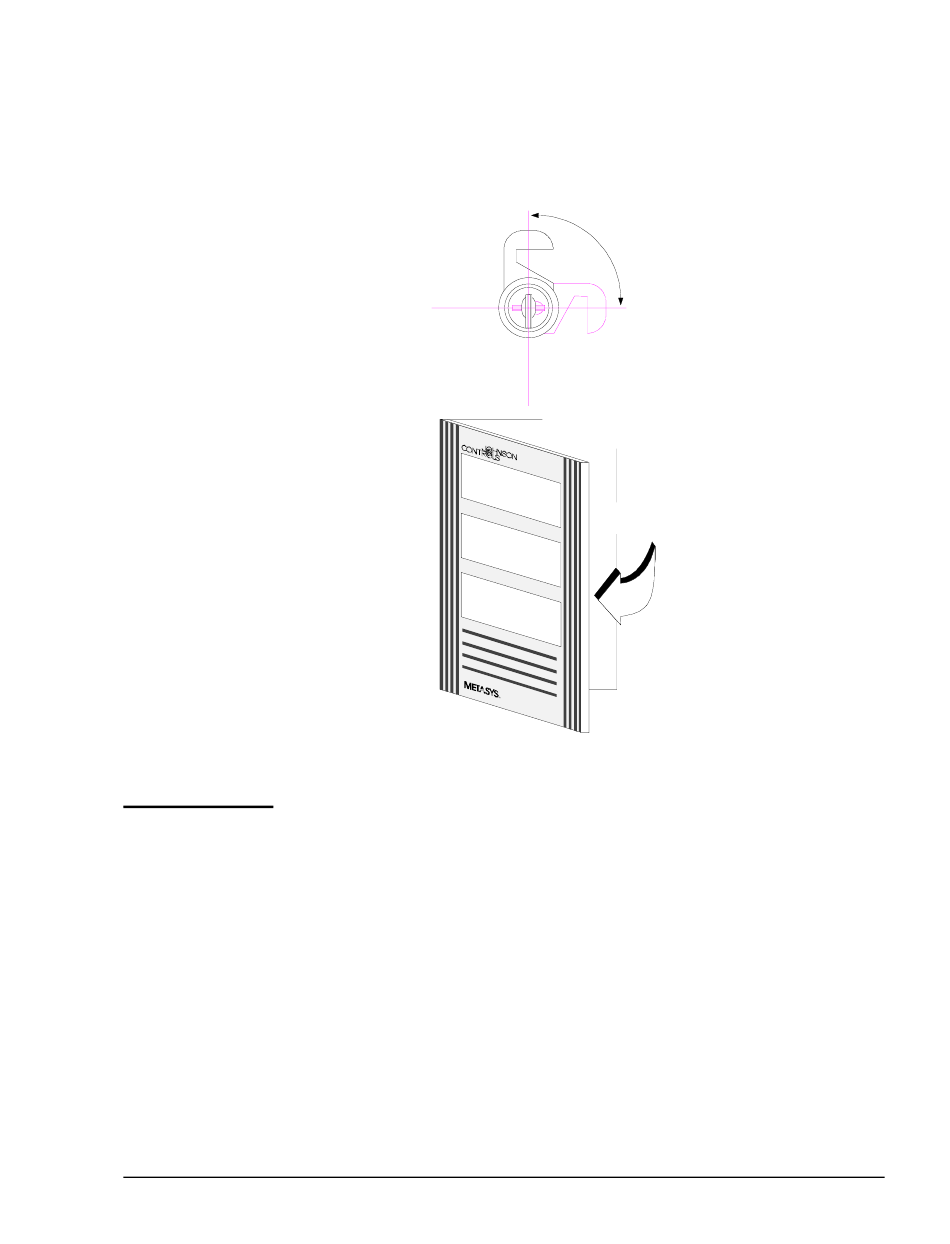

Figure 11: Lock Mechanism Installation
mounts.
Open
Locked
The lock mechanism as viewed in a
left-hinged mounting application.
The lock would be placed in the
right side of the door
(as shown below).
Install
Lock Here
cabx3aa4
Installation—Installing the FC-2000 19
