Field Wiring the Modules

The system's modules feature removable terminal blocks that ease
installation and servicing of the control panel.

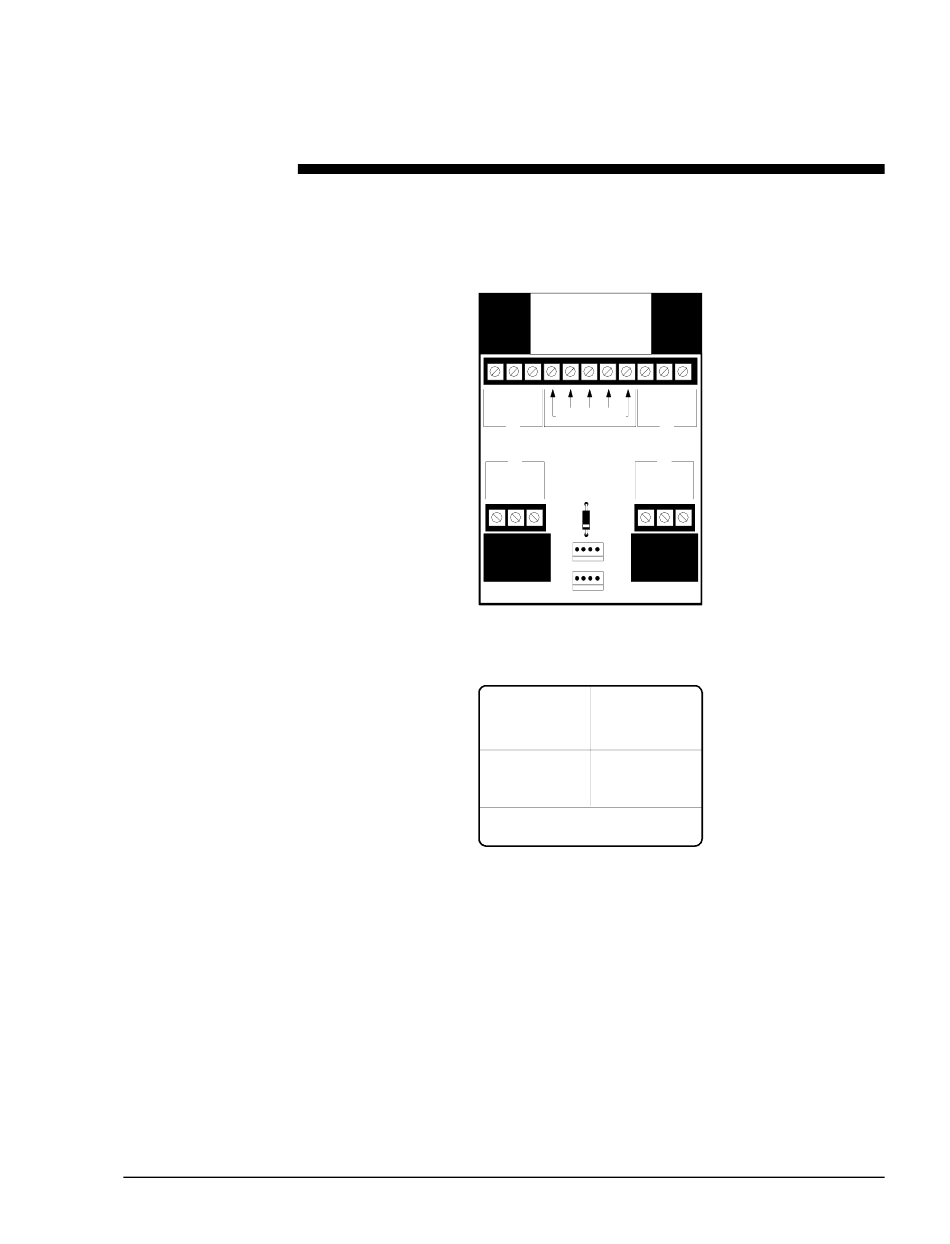

Figure 22: Terminal Assignments for Module Control of the
ARM-4 Auxiliary Relay Module
K1 K2
NC NO C NC NO C
No Connections
K1 K2
K3 K4
NC NO C NC NO C
P2
P1
K3 K4
Resistive Resistive
Load Load
1 2 5 V A C 20A 10A
3 0 V D C 20A 10A
C o n ta ct R a tin g s
arm4mod2
Installation—Installing the FC-2000 31
