Remote Command Inputs - Johnson Controls FC-2000 Installing

The function of Acknowledge, Signal Silence, and Reset can be executed
Remote
from remote switches. The switches are wired to IZM-8 circuits, which
Command
must be programmed for this special operation. Additional functions,
Inputs
outlined below, can also be accomplished through IZM-8 circuits.
Presignal Inhibit IZM-8 Zone 1: Program zone as non-alarm and supervisory. This
command is issued to inhibit presignal operation. Upon entering
presignal, the CPU checks Zone 1 on all IZM-8 and AIM-200 modules.
If the zone is active (shorted), all presignal or PAS operation will be
ignored.
Telephone Page
IZM-8 Zone 2: Program zone as non-alarm and supervisory. Telephone
Page is used for remote paging when the fire fighter wishes to manually
select speaker circuits. Telephone Page will be activated when a telephone
call-in is received and Zone 2 has been activated (shorted). The CPU will
then activate the telephone circuit and transmit a Telephone Page
command to the AMG-1 Audio Message Generator which will patch the
call through to the AMG-1 output. When Zone 2 returns to normal, the
CPU will deactivate the telephone circuit and transmit a page off
command to the AMG-1. Never program a telephone circuit for
silenceable operation or inhibit its switch function.
All Call
IZM-8 Zone 3: Program zone as non-alarm and supervisory. All Call
Telephone Page
Telephone Page operates the same as Telephone Page, with the exception
that the CPU will initiate the All Call function, which activates all
silenceable circuits not programmed for switch inhibit. When Zone 3
returns to normal, the CPU will deactivate the All Call Telephone Page
function (re-execute all zone-to-output mapping). Indicating appliance
circuits that should not activate during All Call telephone page must be
programmed for non-silenceable and/or switch inhibit operation.
All manuals and user guides at all-guides.com

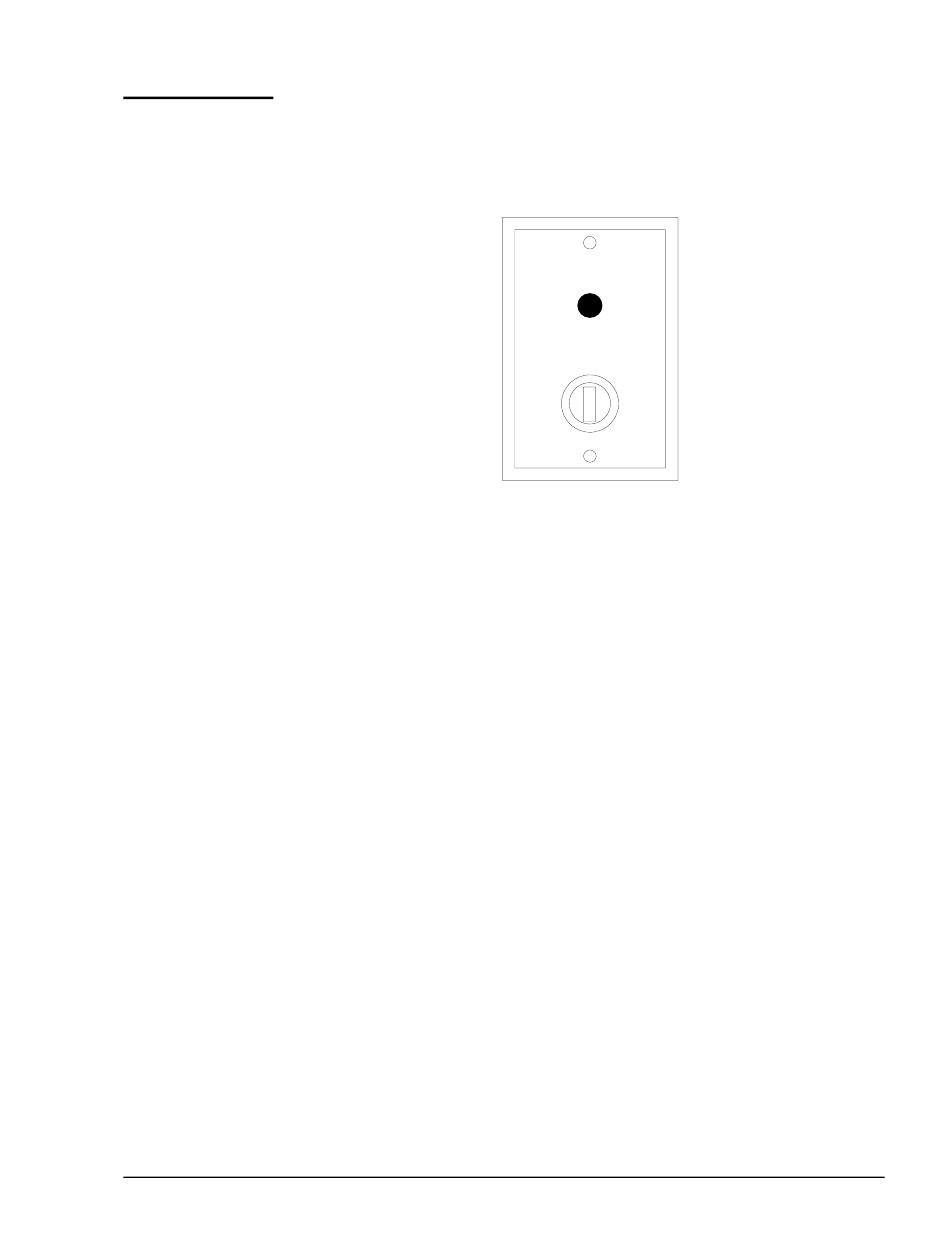

Figure 47: RPJ-1 Remote Paging Jack
