Installing the
CHS-4 Chassis
5. Punch out the knockout for the door lock and install the lock
mechanism. Make sure you do this last, so that you knock out the
correct side.

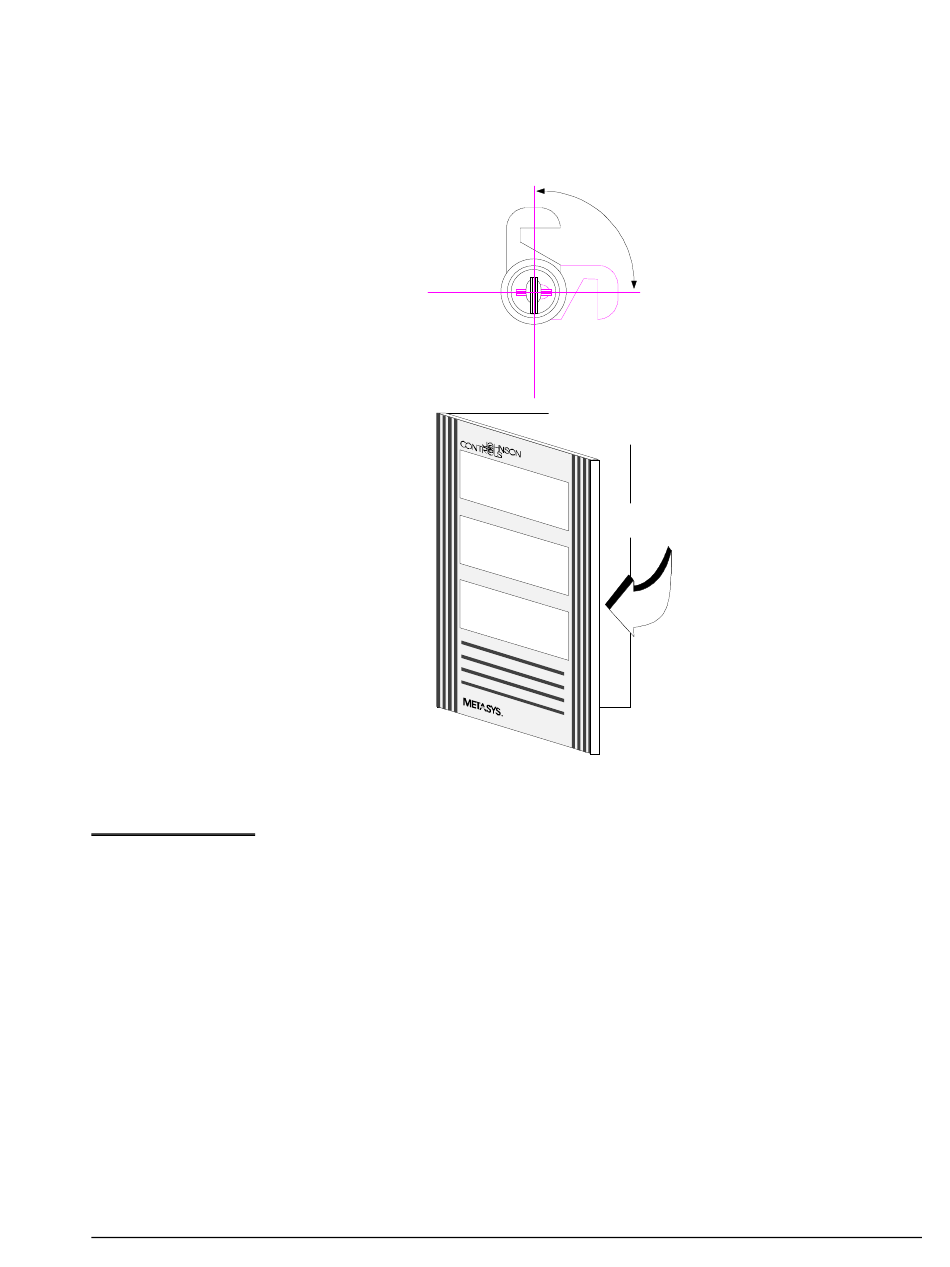

Figure 11: Lock Mechanism Installation
To install a CHS-4, complete the following steps and refer to Figure 12.
1. Place the CHS-4 over the screw mounts on the cabinet.
2. Connect a grounding cable assembly (71073) to one of the screw
mounts.
3. Secure the assembly with the two nuts provided.
Repeat this procedure for each CHS-4 in the cabinet.
Open
Locked
The lock mechanism as viewed in a
left-hinged mounting application.
The lock would be placed in the
right side of the door
(as shown below).
Install
Lock Here
cabx3aa4
Installation—Installing the FC-2000 19
