Safety Vision ICOP PRO HD HVR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

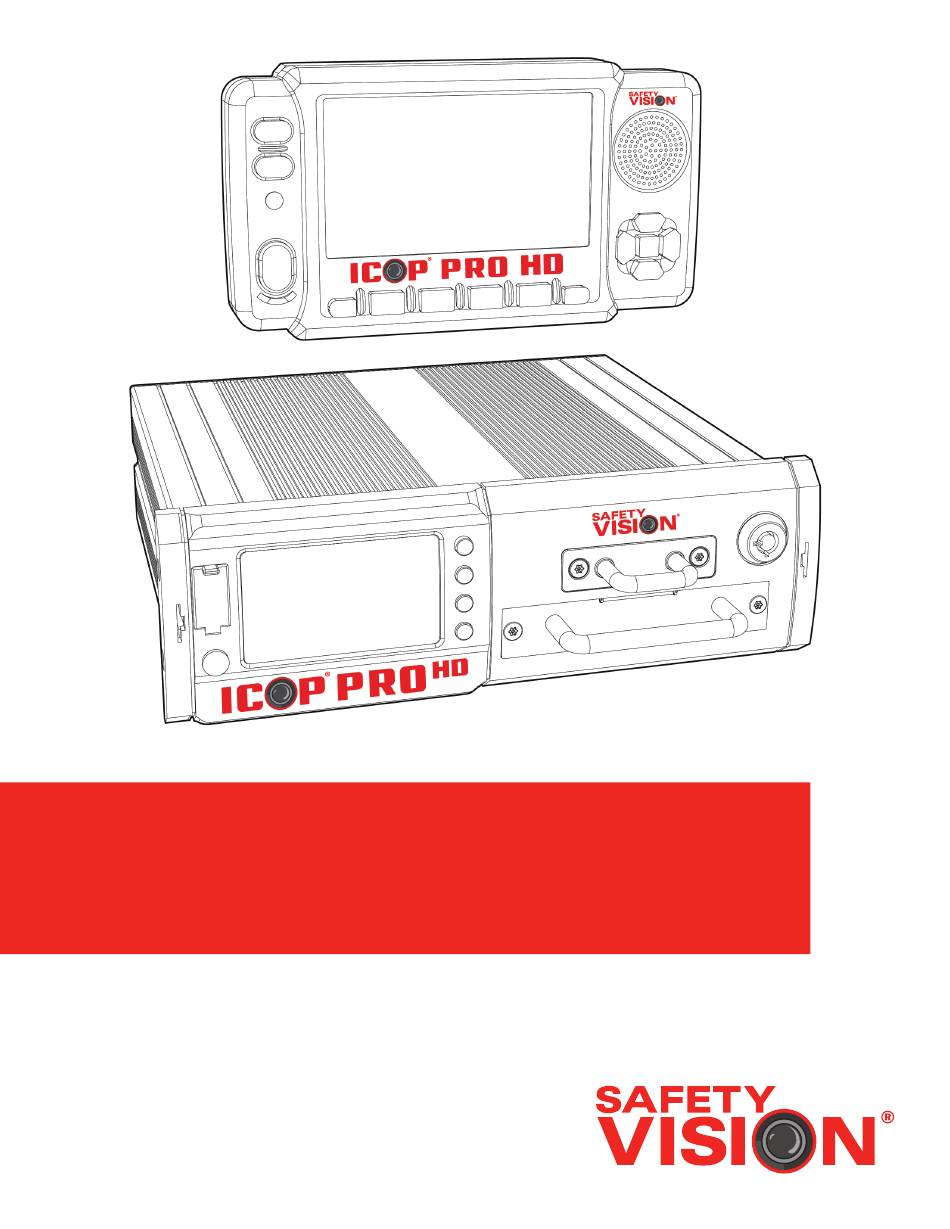

ICOP PRO HD HVR
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICOP PRO HD HVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safety Vision ICOP PRO HD HVR

Summary of Contents for Safety Vision ICOP PRO HD HVR

  • Page 1 ICOP PRO HD HVR USER GUIDE...
  • Page 2 However, because of Safety Vision’s policy of continual product improvement, Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision.

  • Page 3: Table Of Contents

    ICOP PRO HD HVR USER GUIDE Contents Main Overview Main Wiring Diagram ICOP PRO HD Hybrid Video Recorder Installation Components Storage Media Status LCD Front Panel Buttons ICOP PRO HD Touch Screen Monitor Installation Components ICOP PRO HD Windshield Camera...
  • Page 4 ICOP PRO HD HVR USER GUIDE Network Application Other Setup Live OSD WMIC IPC setup Data Setup General Advanced Alarm Panel Alarm HDD/SD Video Motion Cover Advanced Maintenance Config Category File Data Data Export Upgrade Storage Reset Officer Login Appendix A: Specifications...

  • Page 5: Main Overview

    ICOP PRO HD HVR USER GUIDE Main Overview The ICOP PRO HD system is comprised of several advanced pieces of hardware that provide the complete law enforcement solution: Hybrid Video Recorder (HVR) The heart of the system, the HVR contains video storage and provides a convenient status LCD display.

  • Page 6: Main Wiring Diagram

    ICOP PRO HD HVR USER GUIDE Main Wiring Diagram Table A Table B Color Sensor Description Sensor Description +12V Constant 1 INPUT SENSOR 1 6 INPUT SENSOR 6 Yellow +12V Switch IGN 2 INPUT SENSOR 2 7 INPUT NOT USED...

  • Page 7: Icop Pro Hd Hybrid Video Recorder

    ICOP PRO HD Hybrid Video Recorder Installation Console Mount The ICOP PRO HD HVR can be installed in any standard console with an available single DIN slot. Thread the HVR cable pigtails through the console mount and slide it up from the back as shown.

  • Page 8: Components

    SD cards in a secure container. NOTE: USB port is not to be used to change external devices. 4 - Lock The Lock secures the storage media devices and turns the ICOP PRO HD HVR on and off.

  • Page 9: Storage Media

    ICOP PRO HD HVR USER GUIDE Storage Media To access the SD card(s) or hard drive: Insert the key into the lock and turn it clockwise. Unlocking the lock powers the HVR off. 2. Pull storage canister straight out. 3. When finished, replace the storage media back into recorder.

  • Page 10: Status Lcd

    ICOP PRO HD HVR USER GUIDE Status LCD 2. Record Status 3. Server Connection Status 4. Video Loss 5. Hard Disk Status 6. Main SD Status Mirror SD Status Front Panel Buttons ICON TYPE ICON DESCRIPTION GPS signal not acquired...

  • Page 11: Icop Pro Hd Touch Screen Monitor

    ICOP PRO HD HVR USER GUIDE ICOP PRO HD Touch Screen Monitor Installation The Touch Screen Monitor can be mounted by three different means: RAM Mount Attach the RAM mount to the back of the touch screen monitor with the two provided Phillips head screws horizontally in either the high or low position.

  • Page 12: Components

    ICOP PRO HD HVR USER GUIDE Components 1 - Power Button Press the Power button to turn the touch 7 - Menu Button Press the Menu button to access the video screen monitor on or off. The Power button turns off playback and configuration menus.

  • Page 13: Icop Pro Hd Windshield Camera

    ICOP PRO HD HVR USER GUIDE ICOP PRO HD Windshield Camera Components 1 - Zoom 4 - Auto Zoom Adjusts zoom out. Zoom to a preset value for 10 seconds, then return to original position. • Single Press: Decrease zoom •...

  • Page 14: Icpmickit Microphone Cradle

    ICOP PRO HD HVR USER GUIDE ICPMICKIT Microphone Cradle Installation Use the following procedure to mount the ICPMICKIT Microphone cradle: Secure the bracket to the rear of the cradle with the four supplied Phillips-head screws as shown. 2. Secure the cradle / bracket assembly to a...

  • Page 15: Components

    ICOP PRO HD HVR USER GUIDE Components 1 - Beep/Vibration Switch Use the Beep/Vibration Switch 4 - Status LEDs The In-USE and Low Batt LEDs display the to toggle notifications. microphone’s current status: • BEEP: Audible beeps sound In-USE (green): •...

  • Page 16: Icop Pro Hd Configuration

    ICOP PRO HD HVR USER GUIDE ICOP PRO HD Configuration Monitor Log In and Home Screen Log In Tap the screen once to display the shortcut bar. Tap the large Log In Icon on the right to display the Log In Window.

  • Page 17: Recording Search

    ICOP PRO HD HVR USER GUIDE Recording Search On the Main Menu, tap the REC search Icon to search for previously recorded video, review it, and export it. Calendar The Calendar screen appears. Tap the arrows to scroll through the months and year on the left. On the right, select to search for Main record, Sub record, or Mirror record video.
  • Page 18 ICOP PRO HD HVR USER GUIDE Playback Tapping the Playback button on the results screen begins video playback immediately. You can slide your fingers along the timeline at the top of the screen to quickly advanced to a specific point in the video.
  • Page 19 ICOP PRO HD HVR USER GUIDE Tap the Export button The Export prompt window appears on the screen, displaying the exported video clip’s length and file size, as well as the capacity of the inserted USB flash drive. 8. Select the desired export file format: •...

  • Page 20: System

    ICOP PRO HD HVR USER GUIDE System Tap the System icon on the Main Menu to view the System menus. System menus mainly provide detailed information regarding the current status of the recorder and the accessories connected to it. This information can be useful when troubleshooting certain issues.
  • Page 21 ICOP PRO HD HVR USER GUIDE Modules The Modules menus provide information about the internal/ external wireless and GPS modules of the recorder WIFI • Built-in WIFI status: Displays if the internal WiFi module is currently connected to a wireless network •...
  • Page 22 ICOP PRO HD HVR USER GUIDE Server Status The Server Status menu displays the status of the DVMS PRO server(s) to which the recorder is connected. • Server status: Connection status • Network type: Type of network used to communicate with the DVMS PRO server •...

  • Page 23: Log Search

    ICOP PRO HD HVR USER GUIDE Log Search On the Main Menu, tap the Log Search icon to search for and display a list of current and past events or errors. Calendar The Calendar screen appears. Tap the arrows to scroll through the months and year on the left.
  • Page 24 ICOP PRO HD HVR USER GUIDE Results After tapping the Search button, the results of the log search are displayed. Tap the up and down arrow icons on the right side of the screen to scroll through the page results. Or, tap the page number field to display an onscreen keypad to manually enter a specific page to display.

  • Page 25: Setup

    ICOP PRO HD HVR USER GUIDE Setup On the Main Menu, tap the Setup icon to view the Setup menus. Setup menus allow configuration of the system. Navigate the Setup menus by tapping on the icons at the top of the screen. Once in a top menu, tap the tabs on the left of the screen to view the different sub-menus.

  • Page 26: Time Setup

    ICOP PRO HD HVR USER GUIDE Time Setup General • Date format: Select from MONTH/DAY/YEAR (MM/ DD/YYYY); DAY/MONTH/YEAR (DD/MM/YYYY); or YEAR-MONTH-DAY (YYYY-MM-DD) • Time format: Select 12 or 24 hour time format • Time Zone: Select the appropriate time zone Then tap the Save button.

  • Page 27: Startup

    ICOP PRO HD HVR USER GUIDE Startup ON/OFF • ON/OFF mode: ◦ Select Timer to power the recorder on and off set specific times ◦ Select Ignition to power the recorder on and with the vehicle’s ignition ◦ Select Ignition or Timer to power the recorder on during both conditions •...

  • Page 28: User Setup

    ICOP PRO HD HVR USER GUIDE User Setup Idle Time Select the number of minutes after no activity that the touch screen monitor automatically exits a Menu and displays the live camera views. Select Never to keep this function disabled.

  • Page 29: Network

    ICOP PRO HD HVR USER GUIDE Network Local • DHCP mode: Select this option to have the recorder automatically receive an IP address and associated information from the network it is attempting to communicate with • Static IP: If the checkbox is checked, device will be considered as static device •...
  • Page 30 ICOP PRO HD HVR USER GUIDE WiFi Tap in the Enable field and select Client to enable the internal WiFi module. Enter the following information: • ESSID • Encryption • Password: Enter an alphanumeric password NOTE: This password will also be used when adding the ICOP PRO HD vehicle to the DVMS PRO software •...
  • Page 31 ICOP PRO HD HVR USER GUIDE Comm External Cell Modem Under Development Server Select a Center Server to configure from the dropdown menu. Multiple servers/configurations can be saved. To add a new server, tap the Add button. To activate a server, select the Enable box option and enter the following information: •...

  • Page 32: Application

    ICOP PRO HD HVR USER GUIDE Application FTP Server Select FTP Enable to enable the FTP server option, which allows you to log into the recorder as an FTP server with an external PC, as well as allows snapshots to be uploaded to the FTP (See Snap Setting under Data Setup for more information).

  • Page 33: Other Setup

    ICOP PRO HD HVR USER GUIDE Other Setup Voice Setup The Voice Setup menu configures the voice commands that are sounded when certain events happen. • Disable Voice Alert: Select this option to turn off all voice notifications • TTS Voice and CP4 Voice: Enter a volume level,...
  • Page 34 ICOP PRO HD HVR USER GUIDE Video Setup The Video Setup menus configure how video is displayed and recorded. Live View Cam Views • Preview Audio: Select this option to enable audio while viewing the Live View • Image Setup: Tap the Setup button to display the Image Setup screen ◦...
  • Page 35 ICOP PRO HD HVR USER GUIDE Auto Loop The Auto Loop tab allows you to program the Live View to automatically cycle through different camera channels. The screen will cycle in the order listed on the monitor. To enable the Auto Loop feature, select the Auto Loop Enable option at the bottom of the screen.

  • Page 36: Live Osd

    ICOP PRO HD HVR USER GUIDE Live OSD Select which pieces of metadata appear overlaid on the on-screen display (OSD) of the Live View: • Date/Time • Speed • Vehicle plate • GPS • Alarm • Channel name • Vehicle num •...
  • Page 37 ICOP PRO HD HVR USER GUIDE Record General • System: Select either NTSC or PAL video type • Overwrite: Select the option of when the primary storage device begins to overwrite: ◦ By days: Enter the time, between 1 and...
  • Page 38 ICOP PRO HD HVR USER GUIDE Main stream • Channel: Select a channel in the Channel field to configure • Channel Name: Enter a name for the selected channel that will appear overlayed on recorded video • Enable: Select this option to enable the channel;...
  • Page 39 ICOP PRO HD HVR USER GUIDE Dual Stream The Dual Stream page configures a dual stream recording setup, when the recorder records one video stream to one storage device, and a secondary stream can be configured to stream to another storage device or viewed live in DVMS PRO.
  • Page 40 ICOP PRO HD HVR USER GUIDE Select which pieces of metadata appear overlaid on recorded video: • Date/Time • Speed • Vehicle Plate • GPS • Channel Name • Vehicle Num Then tap the Save button. Where the metadata appears overlaid relative to its position on the screen can be adjusted.

  • Page 41: Ipc Setup

    ICOP PRO HD HVR USER GUIDE IPC setup The IPC Setup tab allows you to configure a number of IP camera networks. (This menu is only configurable when an IP camera is connected to the recorder.) • Select Enable for the channel you would like to use.

  • Page 42: Ptz

    ICOP PRO HD HVR USER GUIDE The PTZ tab allows you to configure the capabilities of any optional PTZ (pan-tilt-zoom) equipped cameras attached. For each attached PTZ camera, configure the following: • Channel Enable: Select this option to enable PTZ functions •...

  • Page 43: Data Setup

    ICOP PRO HD HVR USER GUIDE Data Setup The Data Setup menus configure how the recorder communicates with external devices. General Sensor The Sensor tab configures the sensor inputs connected to the sensor harness • Sensor number: Select a sensor in the Sensor number field to configure •...
  • Page 44 ICOP PRO HD HVR USER GUIDE • Navigation mode: Under development Mileage The Mileage tab tracks the total miles the recorder has been installed in the vehicle.

  • Page 45: Advanced

    ICOP PRO HD HVR USER GUIDE Advanced CAN: Under development Snap Setting The Snap Setting menu configures the snapshot feature. Still image snapshots can be taken at set intervals, instead of full motion video, in order to conserve storage space in certain applications.
  • Page 46 ICOP PRO HD HVR USER GUIDE Snap Setting Setup Screen • Channel: Select a channel in the Channel field to configure • Snap enable: Select this option to enable snapshots to be taken for the selected channel • Resolution: Select the resolution of the snapshots •...

  • Page 47: Alarm

    ICOP PRO HD HVR USER GUIDE Alarm The Alarm menus configure the various alarms and their triggers. Base Speed Alarm • Select the Overspeed option to enable speed alarms. An alarm is triggered when the configured speed is exceeded. • Alarm type: Select either Sensor (When a Sensor...
  • Page 48 ICOP PRO HD HVR USER GUIDE Linkage Setup Tap the Setup button under Linkage to display the setup screen to configure the recording, monitor display, and additional options specific to the Speed Alarm. • Channel: Select the channels that are recorded for the duration of this alarm •...

  • Page 49: Panel Alarm

    ICOP PRO HD HVR USER GUIDE Panel Alarm • Select the Panic option to enable panel alarms. An alarm is triggered when the ‘REC’ button on the touch screen monitor is pressed. • Alarm type: Select either Sensor (When a Sensor...
  • Page 50 ICOP PRO HD HVR USER GUIDE Linkage Setup Tap the Setup button under Linkage to display the setup screen to configure the recording, monitor display, and additional options specific to the Panel Alarm. • Channel: Select the channels that are recorded for the duration of this alarm •...
  • Page 51 ICOP PRO HD HVR USER GUIDE IO Alarm • Select Enable next to each sensor to enable IO alarms. An alarm is triggered when the sensor is activated • Alarm type: Select from the following options: ◦ OFF: Disables any OSD display ◦...
  • Page 52 ICOP PRO HD HVR USER GUIDE Trigger Setup Tap the Setup button under the Trigger field to display the setup screen to configure the parameters specific to the IO Alarm for each selected sensor. • Trigger: Select if the sensor sends a High or Low signal •...

  • Page 53: Hdd/Sd

    ICOP PRO HD HVR USER GUIDE HDD/SD • Select the Low Space option to enable HDD/SD alarms. An alarm is triggered when the selected storage device is approaching low available space • Alarm type: Select either Sensor (When a Sensor...

  • Page 54: Video

    ICOP PRO HD HVR USER GUIDE Video Video Loss • Select the Video Loss option to enable video loss alarms. An alarm is triggered whenever video loss or camera failure is detected. • Alarm type: Select either Sensor (When a Sensor...
  • Page 55 ICOP PRO HD HVR USER GUIDE Linkage Setup Tap the Setup button under Linkage to display the setup screen to configure the recording, monitor display, and additional options specific to the Video Loss Alarm. • Channel: Select the channels that are recorded for the duration of this alarm •...

  • Page 56: Motion

    ICOP PRO HD HVR USER GUIDE Motion Select the Motion option to trigger alarms when motion is detected in the selected camera channels. During configuration, select the portion of the field of view in which motion will trigger an alarm.

  • Page 57: Cover

    ICOP PRO HD HVR USER GUIDE Cover • Select the Cover option to enable cover alarms. An alarm is triggered when it is detected that a camera lens may have been covered or otherwise obstructed. • Alarm type: Select either Sensor (When a Sensor...
  • Page 58 ICOP PRO HD HVR USER GUIDE Linkage Setup Tap the Setup button under Linkage to display the setup screen to configure the recording, monitor display, and additional options specific to the Cover Alarm. • Channel: Select the channels that are recorded for the duration of this alarm •...

  • Page 59: Advanced

    ICOP PRO HD HVR USER GUIDE Advanced ACC Alarm • Select the ACC alarm option to enable ACC alarms. An alarm is triggered due to shock detected by an accelerometer • Alarm type: Select either Sensor (When a Sensor alarm is triggered, it is recorded in video as metadata only), or Event (When an Event alarm is triggered, it marks recorded video as ‘Alarm Video’...
  • Page 60 ICOP PRO HD HVR USER GUIDE Linkage Setup Tap the Setup button under Linkage to display the setup screen to configure the recording, monitor display, and additional options specific to the ACC Alarm. • Channel: Select the channels that are recorded for the duration of this alarm •...

  • Page 61: Maintenance

    ICOP PRO HD HVR USER GUIDE Maintenance The Maintenance menus provide access to useful tasks, such as configuration file import/export, data export, and storage device formatting. Config Insert a USB flash drive into the USB port on the front panel of the recorder and tap Export to download a configuration file of the recorder.

  • Page 62: File Data

    ICOP PRO HD HVR USER GUIDE File Data The File Data menu allows you to export certain data from the recorder for analysis. Data Export Select All to export all of the selected data available, or select Export time to request only data in a specific time range.

  • Page 63: Upgrade

    Note: Any previously exported configuration files will need to be re-exported after updating the firmware. Obtain the firmware upgraded file from Safety Vision technical support. 2. On an otherwise blank USB flash drive, place the firmware upgrade file in a folder titled upgrade in the root directory.

  • Page 64: Officer Login

    ICOP PRO HD HVR USER GUIDE Officer Login Tap the Officer Login icon on the Main Menu. The Officer Login menu allows you to log in multiple officers simultaneously, if more than one officer is assigned to the vehicle. Tap the Login icon to display the log in window. Tap...

  • Page 65: Appendix A: Specifications

    ICOP PRO HD HVR USER GUIDE Appendix A: Specifications SPECIFICATIONS Part No. ICPPROHVR Operating System Embedded Real-Time Linux Form Factor 1 DIN Coordinate, alarm, temperature, acceleration, voltage, software On-Screen Display version, network status, officer information, real-time status of the vehicle...

  • Page 66: Appendix B: Dimensions

    ICOP PRO HD HVR USER GUIDE Appendix B: Dimensions ICOP PRO HD HVR Power Control Monitor...

  • Page 67: Fcc Compliance Statement

    ICOP PRO HD HVR USER GUIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 68 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com...
