Safety Vision RoadRecorder 7000 User Manual

Roadrecorder 7000 series dvr
Hide thumbs Also See for RoadRecorder 7000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
ROADRECORDER® 7000 SERIES
DVR USER GUIDE
Includes 7000 and 7000S Models

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoadRecorder 7000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Safety Vision RoadRecorder 7000

Summary of Contents for Safety Vision RoadRecorder 7000

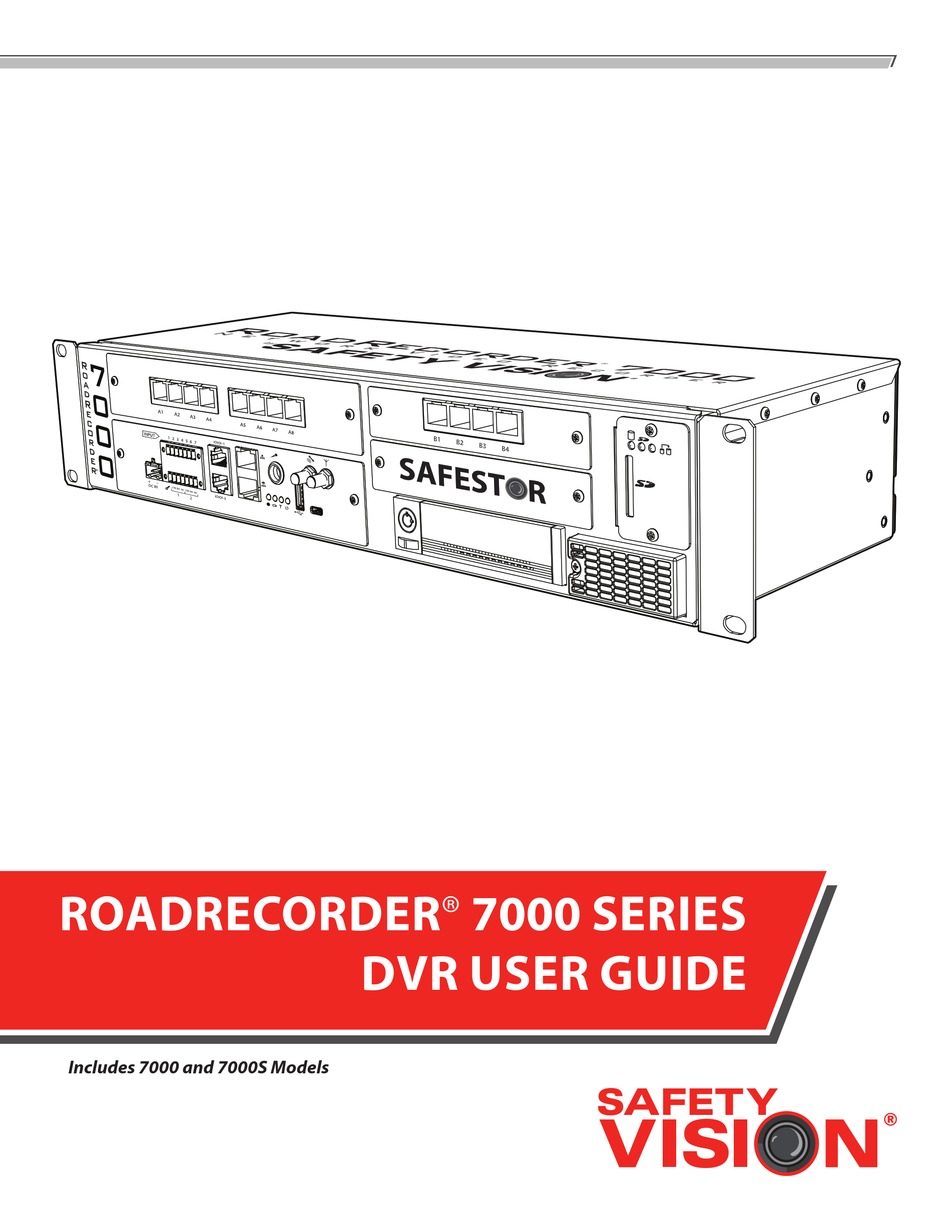

  • Page 1 ROADRECORDER® 7000 SERIES DVR USER GUIDE Includes 7000 and 7000S Models...

  • Page 2: Important Notices

    It is shared with your company for the sole purpose of helping you with the operation of the described equipment. Safety Vision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 3: Table Of Contents

    Table of Contents Components Front Panel Communications Module SD Card/UPS Module LCD Control Panel Installation Main Wiring Diagram Rack Mount Flat Mount Lock Box Air Filter Replacement Video Retrieval 50-000001 LCD Control Panel Configuration Connecting to the NVR Help Windows RoadRecorder 7000S Model Note Product Details Admin Settings...

  • Page 4: Components

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Components Front Panel 1 - Primary Modular Slot - Camera inputs A1 through A8. Each input is power over Ethernet (POE) enabled. 2 - Secondary Modular Slot - Camera inputs 9 through 12 (labeled B1 through B4, respectively).

  • Page 5: Communications Module

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Communications Module 1 - Sensor Inputs - Attach up to 7 sensor inputs with the appropriate Phoenix connector. 2 - External GPS Input - Connect the Garmin® GPS antenna (part number 333401). 3 - WAN Ethernet - For Service Technician use only.

  • Page 6: Sd Card/Ups Module

    ROADRECORDER® 7000 SERIES NVR USER GUIDE SD Card/UPS Module 1 - SSD Status LED LED Color Status 1, 2, 3 - Status LEDs - See tables at right. Green On: SSD OK (mounted) Blink: SSD activity Orange On: SSD in offload 4 - SD Card Slot - Insert or remove the SD card.

  • Page 7: Lcd Control Panel

    RoadRecorder 7000 NVR.) 50-000001 The 50-000001 LCD Control Panel is designed to provide advanced functionality with the RoadRecorder 7000 NVR. See the 50-000001 LCD Control Panel chapter for more information. 1 - LCD Display - Displays alerts and statuses.

  • Page 8: Installation

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Installation Main Wiring Diagram...
  • Page 9 ROADRECORDER® 7000 SERIES NVRUSER GUIDE Typical Configuration Sensor Wire Color Description Blue Brake Yellow Right Turn Green Left Turn Violet Head Lights Brown Front Door White Wheel Chair Grey Stop Request Orange Ignition Open Open Open Open Open Open Main Power Black Main Ground Fuse Requirements...

  • Page 10: Rack Mount

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Rack Mount Use the following procedure to install the RoadRecorder 7000 NVR in a standard 19 inch (482.6 mm) equipment rack. Position the included rack mount L-brackets on the side of the unit as shown in the diagram at right.

  • Page 11: Lock Box

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Lock Box Use the following procedure to install the RoadRecorder 7000 NVR inside a lock box. Install the rack mount L-brackets as described in steps 1 and 2 of the Rack Mount procedure. Insert the RoadRecorder 7000 NVR into the lock box as you would an equipment rack.

  • Page 12: Air Filter Replacement

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Air Filter Replacement The RoadRecorder 7000 NVR includes a replaceable air filter behind the front air intake to protect the internal components from potential contaminates. Use the following procedure to replace the air filter.

  • Page 13: Video Retrieval

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Video Retrieval The RoadRecorder 7000 NVR can be configured to record video on the hard drive or both the hard drive and the SD card. See the SD Card Settings section of the Configuration chapter for more information.
  • Page 14 The computer recognizes the SD card as an external storage device. Use only SD cards obtained from Safety Vision. Reinsert the SD card in the same manner: push it straight in until a “click” is felt, then release.

  • Page 15: 50-000001 Lcd Control Panel

    When the offload is taking place, the bottom LED currently installed on the NVR. This information may be status light displays red. When the process it complete, the LED useful when speaking with Safety Vision Technical Support. reverts to displaying green. To HDD System Logs Press the center navigation key to select To HDD.

  • Page 16: Configuration

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Configuration The RoadRecorder 7000 NVR can be configured through the on-board web interface, which must be accessed with a PC and web browser. Connecting to the NVR Use the following procedure to access the configuration web server using the default IP address: Connect the PC to the NVR’s Ethernet LAN RJ-45 port...

  • Page 17: Help Windows

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Help Windows Each screen of the RoadRecorder 7000 NVR configuration interface includes a comprehensive help menu. The help menus explain the functionality and parameters of each field. To access the help menu for a screen,...

  • Page 18: Product Details

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Product Details The Product Details page displays factory configured identification fields as well as the status of SafeStor and the HDD. Product name: Model series of the NVR. Serial #: Individual serial number of the NVR (assigned at the factory).

  • Page 19: Admin Settings

    Click the Extract Now button to automatically download the NVR’s log file into a USB flash drive inserted into the standard USB port on the front of the NVR. The log file may be helpful to Safety Vision Technical Support when troubleshooting potential issues. Cell Modem First select internal or external in the Cell Modem type field.

  • Page 20: Network Settings

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Network Settings The Network settings page configures the WLAN interface and SMTP server settings. Wireless Radio Interface Enter the IP address, Netmask, and the Gateway for the wireless local area network (WLAN) in 12 digit IP address format.

  • Page 21: Firmware Update

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Firmware Update The Firmware Update page provides a convenient means of uploading a firmware file directly from an attached PC. The upgrade the NVR’s firmware: Click the Browse button. A navigation prompt appears. Navigate to the location of the new firmware file (.tgz file).

  • Page 22: System Settings

    ROADRECORDER® 7000 SERIES NVR USER GUIDE System Settings The System settings page configures allows modification of the NVR’s name and time zone. MDVR name (25 alphanumeric characters, no spaces) Enter a facility-defined ID of the NVR or the vehicle it is installed in.

  • Page 23: Audio/Video Settings

    For Click the Reconfigure Cameras button to reconfigure more information, see Appendix D: the cameras the next time the RoadRecorder 7000 NVR Axis Device Configuration. is rebooted. This is required if a camera is replaced or removed.

  • Page 24: Audio/Video Settings (Cont.)

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Audio/Video Settings (cont.) Select the device number (port number) you want to configure from the drop-down menu and click Go to display a page of settings for each individual device. Camera name, Static IP address, and External device Enter a unique name (alphanumeric, spaces permitted)

  • Page 25: Startup & Shutdown

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Startup & Shutdown The Startup & Shutdown page configures conditions when the NVR can automatically start and shut down. Startup Select the Enable startup due to acceleration option to automatically start the NVR and record an event when the vehicle begins moving.

  • Page 26: Threshold Settings

    Temperature Enter the minimum and maximum temperature (between 0 and 50 degrees Celsius) the RoadRecorder 7000 NVR can sustain before an event is recorded in the respective Min. Temperature and Max. Temperature fields. Fan Control (7000 model only)

  • Page 27: Firmware Settings

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Firmware Settings The Firmware settings page configures how events are recorded and how they are retained. Snapshot Enter the time in seconds that a static JPEG snapshot is taken in the Capture interval field. These snapshots appear in the Snapshot Viewer page.

  • Page 28: Tag Events

    Tag Supervisor Event. This feature is useful in emergency situations where the web interface can be accessed wirelessly by a supervisor vehicle. (For more information regarding this feature, contact Safety Vision Technical Support.)

  • Page 29: Live View

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Live View The Live View allows you to see the field of view of a compatible connected camera, allowing you to focus and properly adjust the image. The Live View requires the installation of VLC Media Player, available free from the developer.

  • Page 30: Change Password

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Change Password A password is required for the web interface and for offloading data via the LCD control panel. webUI Password To set a new password, enter the old password in the Old password field, and the new password in the New password and Confirm password fields, then click Change...
  • Page 31 ROADRECORDER® 7000 SERIES NVRUSER GUIDE...

  • Page 32: Appendix A: Specifications

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Appendix A: Specifications SPECIFICATIONS RoadRecorder 7000 Maximum Video Resolution 720p High-definition Accelerometer 3-axis, 0.1 G resolution Maximum Framerate 30 fps per camera Camera Inputs 12 PoE 7 (plus ignition) / 2 Inputs / Outputs...

  • Page 33: Appendix B: Recording Time Matrices

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Appendix B: Recording Time Matrices Fleet Configuration Number of Vehicles All based on events/day (not required for calculation) Avg. events per day Includes events and scheduled downloads Length of event minutes DVR storage size 1000 Event retention requirement days Hours per day...

  • Page 34: Appendix C: Dimensions

    ROADRECORDER® 7000 SERIES NVR USER GUIDE Appendix C: Dimensions 17.06...

  • Page 35: Appendix D: Axis Device Configuration

    ROADRECORDER® 7000 SERIES NVRUSER GUIDE Appendix D: Axis Device Configuration The RoadRecorder 7000 NVR supports both the Safety Vision SVC-2200 series cameras in addition to Axis network cameras. Configuration is identical except Axis cameras must be configured with the login and password both set to root.

  • Page 36: Appendix E: Gps Coordinate

    Enter the address of the required GPS location in Google Maps. Google Maps can be accessed at www. google.com/maps Safety Vision’s headquarters is used as an example. Confirm the appropriate address appears on the map as a red balloon marker.
  • Page 37 ROADRECORDER® 7000 SERIES NVRUSER GUIDE...
  • Page 38 When a product requires service, only the affected component must be returned. If returning the RoadRecorder Safety Vision, LLC (“SV”) makes the following limited 7000 NVR unit, please include the SD card and HDD that was warranty, which is effective at the time of the original end- in use at the time the issue occured.
  • Page 39 ROADRECORDER® 7000 SERIES NVRUSER GUIDE...
  • Page 40 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com 2/14...
