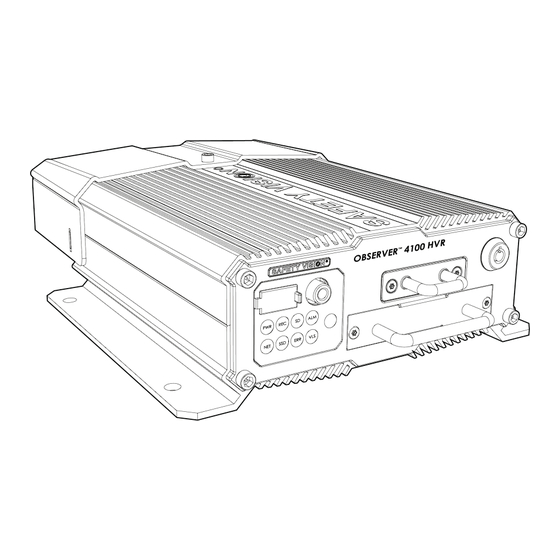

- Page 1 OBSERVER™ 4100 HVR HARDWARE USER GUIDE...
-
Page 2: Important Notices
Safety Vision. Safety Vision® is a registered trademark of Safety Vision, LLC. All other products or name brands mentioned in this document are trademarks of their respective owners. For more information about Safety Vision and its products, go to www. -
Page 3: Table Of Contents
OBSERVER 4100 HVR HARDWARE USER GUIDE Table of Contents Main Wiring Diagram With 41-UPS Without 41-UPS Components Installation Appendix A: Specifications Appendix B: Recording Time Calculator Appendix C: Dimensions... -
Page 4: Main Wiring Diagram
OBSERVER 4100 HVR HARDWARE USER GUIDE Main Wiring Diagram With 41-UPS CAN BOX COLOR BLACK 485B-1 GREEN 485B-1 WHITE... -
Page 5: Without 41-Ups
OBSERVER 4100 HVR HARDWAREUSER GUIDE Without 41-UPS CAN BOX COLOR BLACK 485B-1 GREEN 485B-1 WHITE... -
Page 6: Components
OBSERVER 4100 HVR HARDWARE USER GUIDE Components 1 - USB Port - Insert a USB flash drive to download events quickly without having to remove the Secure Digital (SD) card. 2 - External Monitor Output - Attach an external monitor to the Observer 4100 with an RCA plug here to configure the mobile digital video recorder (MDVR). - Page 7 OBSERVER 4100 HVR HARDWARE USER GUIDE 1 - CAN Bus Port (J1939) - Connection for optional J1939 accessories (under development). 2 - AV Port(s) - Connection for the main camera wiring harness. 3 - LAN Port (RJ45) - Connection for optional network accessories.
-
Page 8: Installation
OBSERVER 4100 HVR HARDWARE USER GUIDE Installation Flat Mount Secure the HVR to the surface with self-tapping screws or rivets. Ensure that the front panel of the HVR remains accessible and there is a minimum 2.5 inches of clearance for cables.. Do not install the HVR in an area of the vehicle cabin that could interfere with the safe operation of the vehicle. - Page 9 OBSERVER 4100 HVR HARDWARE USER GUIDE Hard Drive/SD Card Cannister Removal To remove the hard drive or the SD card cannister from the HVR: Ensure the HVR is powered off. Insert the key into the hard drive lock and turn it clockwise.
-
Page 10: Appendix A: Specifications
OBSERVER 4100 HVR HARDWARE USER GUIDE Appendix A: Specifications SPECIFICATIONS Part No. 4100-HVR OS Support Linux 3.0.8 Access Control CP4, web interface (Wi-Fi or interface), mouse (wireless) Cameras Supported Up to 4 AHD or analog + 1 IP Audio/Video Outputs 2 video outputs ports (BNC and RCA) and 1 audio output port (BNC) -
Page 11: Appendix B: Recording Time Calculator
OBSERVER 4100 HVR HARDWARE USER GUIDE Appendix B: Recording Time Calculator HDD CAPACITY CALCULATIONS Resolution Quality Cameras Hours of Recording 4 - Medium 4 - Medium 4 - Medium 4 - Medium Half D1 4 - Medium Half D1 4 - Medium... -
Page 12: Appendix C: Dimensions
OBSERVER 4100 HVR HARDWARE USER GUIDE Appendix C: Dimensions... - Page 13 OBSERVER 4100 HVR HARDWARE USER GUIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a commercial environment.
- Page 14 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com...
