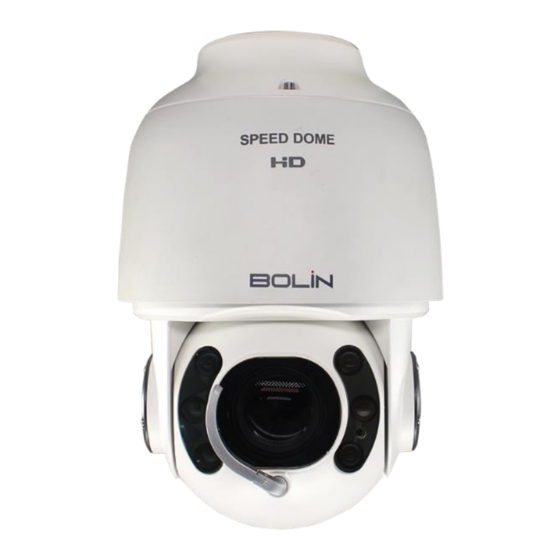

- Page 1 Dual Output SDI+IP FHD PTZ Camera USER MANUAL Part Two: IP Network Camera User Manual (For EX1000/SD500 Series) Version: SN-IP-M-EX/SD-02232022 © 2022 Bolin Technology...
-
Page 2: Table Of Contents
Contents USER QUICK NOTICE GUIDE ..............................3 NETWORK CONNECTION ................................6 ..................................6 OGIN REPARATION ..................................6 HECK BEFORE LOGIN LOGGING IN TO THE WEB INTERFACE ............................7 NOTE: F ? ................................7 ORGOT ASSWORD IP S : ....................................7 EARCH INTRODUCTION TO THE WEB INTERFACE .......................... -
Page 3: User Quick Notice Guide
Live view latency may be 1-2 seconds longer than IE browser. In this User Guide, illustration drawings and screen captures are taken from SD500 camera’s IP Web Interface, other applicable cameras have the same software. This User Guide can be also used for Bolin’s EX1000 series PTZ cameras. Login The default static IP address of the camera is 192.168.0.13, and default subnet mask is 255.255.255.0. - Page 4 • Intel mode, using the Intel graphics card to do decoding, select this mode if your PC/laptop graphics card is Intel. • Nvidia mode, using Nvidia graphics card to do decoding, select this mode if your PC/laptop graphics card is Nvidia. NOTE: The Default is Adaptation mode, and the decoding strategy is automatically selected by the system, if is it not satisfied, please select the...
- Page 5 IP Video Format IP video resolution and SDI/HDMI video resolution are bounded to PAL/NTSC format. e.g. if SDI/HDMI video is set to 1080p60 resolution, then IP video can only be selected under the PAL format resolution, such as 1080p60, 1080p30, 720p60 and 720p30, etc. At this moment, the IP video cannot be selected 1080p50, 1080p25 and 720p50, etc.
-
Page 6: Network Connection
Part Two: Network Camera User Manual Network Connection Before accessing a network camera (also known as IP Camera or IPC) from a PC, you need to connect the network camera to the PC directly with a network cable or via a switch or router. Use a Shielded Twisted Pair (STP) cable to connect the network interfaces of the network camera and the PC. -
Page 7: Logging In To The Web Interface
• A BOLIN Technology Support team will provide a temporary password that is only valid for 24 hours, which can be used to log in to the camera to create a new password. Please use the temporary password within 24 hours, you will have to repeat the above process to get a new temporary password if it gets expired. -
Page 8: Introduction To The Web Interface
Introduction to the Web Interface After login to the web interface, you will locate at Live View page, there are three functional modules, as followings: 1. Menu Bar • Used to navigate between Live View, Fast Setting, Camera, Audio, Network, System, Local, Operation, as well as Log Out 2. -
Page 9: Home Position
Capture: to take a screenshot of the camera video image; Speaker: to turn on / off the preview audio on live view panel; Mic: to enable/disable the Mic which built-in the camera; Enlarge: to enlarge the camera preview image. Click the Enlarge button, the button color will turn yellow, then you can click the preview image to zoom in, it supports for zooming in by 3 times;... -
Page 10: Scanning
Trace: A Trace is a series of presets, recalled in a given order. This causes the camera to iterate through the series, moving to each preset in the selected order, support create 8 traces at maximum. To create a new trace: 1. -
Page 11: Configuring The Camera From The Menu Bar
Configuring the camera from the Menu Bar Camera Setting page can be accessed by clicking the Camera listed in the Menu Bar Menu Bar is divided into tabs. Under each tab is a collection of settings and parameters that the user can configure. -
Page 12: True Dual Output Video Format Setting
▪ 1~60 fps adjustable Bit Rate: The amount of data transmitted per second. Measured in Kilobits Per Second (Kbps). 1000 kbps = 1Mbps ▪ 128~16384kb/s adjustable Bitrate Type: ▪ CBR – Constant Bit Rate ▪ VBR – Variable Bit Rate I Frame Interval: ▪... -
Page 13: Camera-Camera Setting-Snapshoot
Camera-Camera Setting-Snapshoot This setting page is used to set the camera to capture the snapshot of the live view, and the snapshot can be uploaded to FTP server, this setting is work with FTP upload function together. Channel 1: Main stream Level: Quality level of screenshots, supports Lower, Middle and High selectable Interval: snapshot frequency, 1000ms by default... -
Page 14: Camera-Camera Setting- Privacy Mask
• You can click Adjust button (the button will switch to displaying Stop), and then set the Title position by the right-side Position adjustment module. • It supports two ways to adjust the Title position, by region or by step •... -
Page 15: Camera-Camera Setting- Preset Cmd
This area will be covered in black color by default on the video, you can change the color by click PVMKBackground, there have 7 colors selectable. Any Privacy Mask can be deleted by clicking the Delete button or Clear All button. NOTE: Privacy Mask function is not supported in non-IE browsers, and it will not to display this page in web interface Camera-Camera Setting- Preset CMD The presets that shown on this page are the pre-programmed commands can be used directly by recalling the relevant... -
Page 16: Audio-Audio Settings
Audio-Audio Settings This setting page is to select the audio compression parameters for the Audio input (microphone) • Audio Compression Options: G.711A – Pulse Code Modulation (PCM), often used to decode voice frequencies with regard to Telephony G.711U – Standard for speech compression and decompression within digital transmission systems AAC –... -
Page 17: Network-Network Setting-Rtmp
default, therefore it is not recommended that this port number be changed. URL for receive RTSP streaming is: rtsp://IP address:554/PSIA/Streaming/channels/0 VISCA Port (Visca over IP) Default is 52381, it is match with Bolin Keyboard Controller User can change the port number to others to match with third part keyboard controller HTTP: Default 80 HTTP is the protocol used to access the web interface. -
Page 18: Network-Network Setting-Srt
Network-Network Setting-SRT To establish the communication flow, SRT employs a handshake mechanism in which each device is identified as a caller or listener. In some cases, two devices can negotiate an SRT session in rendezvous mode at the same time. SRT Mode What it can do? Set the source or destination device as the initiator of the SRT streaming session... -
Page 19: Network-Network Setting-Ftp
Rendezvous: SRT Rendezvous mode, the page will expand the rendezvous mode settings menu, enable Main Stream or Sun Stream as you want, and configure the corresponding parameters. • IP Address: The IP address of the other end SRT device (configured in Rendezvous mode) •... -
Page 20: System-System Setting- Device
Input the copied multicast URL address into the Network URL bar; Click Play button and now you can get the multicast of Main Stream System-System Setting- Device This setting page is to get the basic product information of the camera. •... -
Page 21: System-System Settings-Maintenance
“CAM-00-FPGA-xxx.dat” A firmware file can be obtained from BOLIN Technology website: www.bolintechnology.com Click the Browse button, and navigate to the file (xx… .dat) Click Remote Update, and allow the camera to load the new firmware It takes a few minutes for the camera to finish the upgrade. -
Page 22: System-System Setting-Online User
check the User Right option to allow this account to do this operation. Account modification: After created the user account, you also can modify the account details later 1. Select one account, it will extend the User Rights setting on the right side, you can modify. -
Page 23: Local-Storage Setting-Storage Setting
• Nvidia mode, using Nvidia graphics card to do decoding, select this mode if your PC graphics card is Nvidia; NOTE: The default is adaptation mode, and the decoding strategy is automatically selected by the program. If it is not satisfied, select the actual graphics card to do decoding according to your PC hardware configuration. -
Page 24: Firmware Upgrade
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process Upgrading MCU Firmware MCU Firmware can be upgraded by following these steps: 1. - Page 25 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
