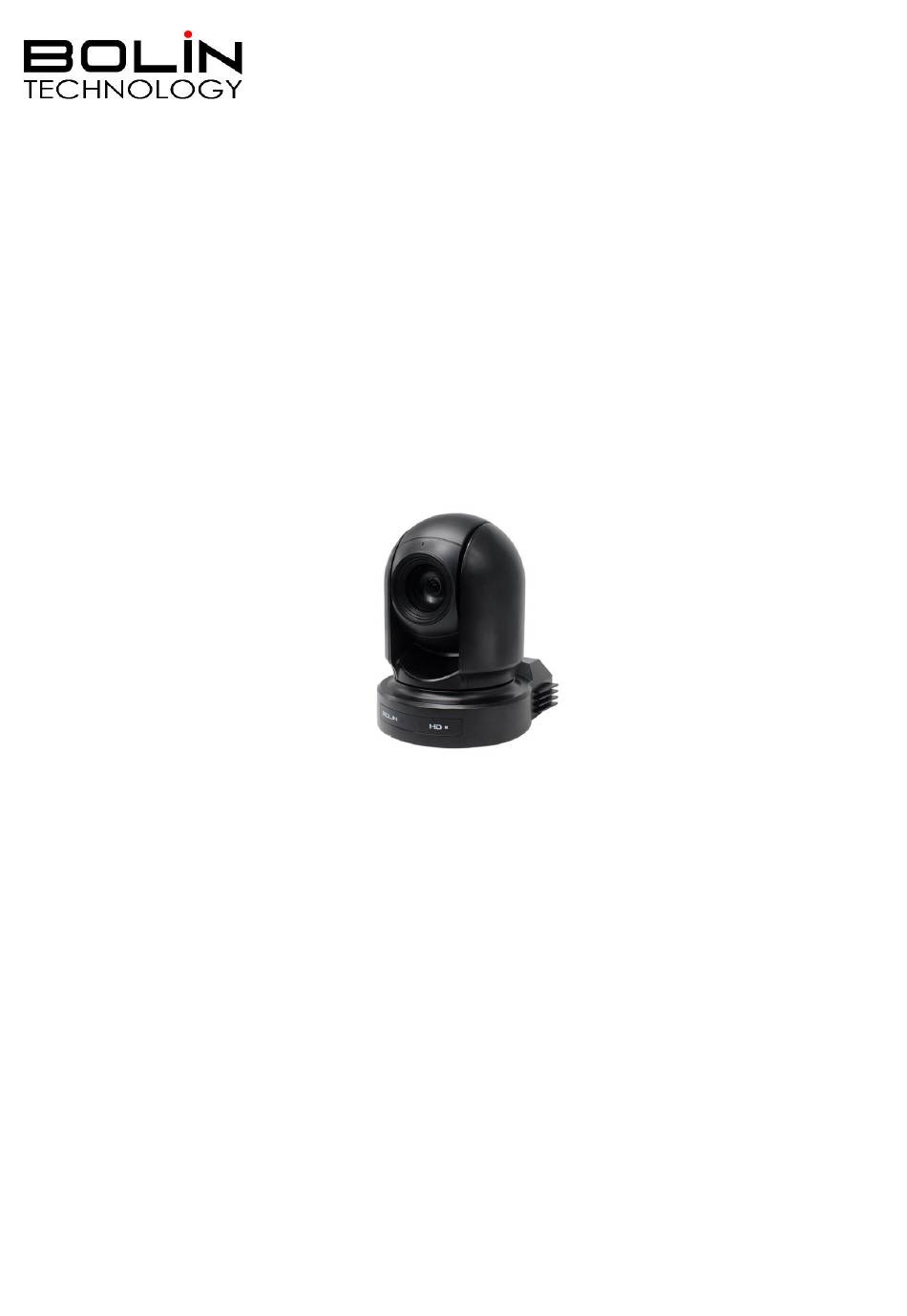

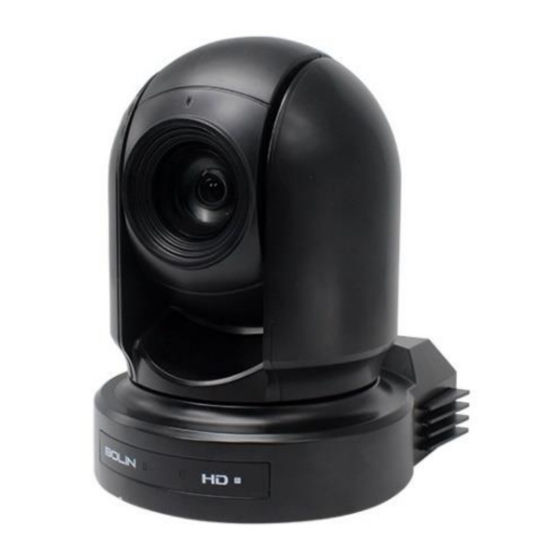

- Page 1 7 Series HD SDI+IP Dual Output PTZ Camera USER MANUAL VERSION: VCC-7HD-M-12222018 VCC-7HD20S-3SMN VCC-7HD30S-3SMN © 2018 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................. 6 OVERVIEW ....................................7 FEATURES ....................................7 CAMERA DIAGRAMS ................................. 8 ..................................9 EMOTE ONTROLLER SYSTEM CONFIGURATION ............................... 10 ..................................11 BTAIN IDEO IGNAL IN / OUT .................................... 12 UDIO SD C ....................................... -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2018 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement, information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical errors in this manual.
- Page 5 using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed. Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface. Regulatory Compliance FCC Part 15 This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC...
-
Page 6: What's In The Box
WHAT’S IN THE BOX Note: The camera color may be in white or black per the item that is purchased. Accessories (Optional) -
Page 7: Overview
Overview This user guide is suitable for the following models: VCC-7HD20S-3SMN VCC-7HD30S-3SMN Features Resolution: Up to 1080P60, 1080i59.94 IP Resolution: Up to 1080P60, 1080P30 Zoom: Optical 20X, 30X Image stabilizer(20X) and true WDR 130dB Video Output: HDMI, 3G-SDI, IP, CVBS simultaneously ... -
Page 8: Camera Diagrams
Camera Diagrams 1. 12V DC Power Port Connect the supplied DC power adaptor and cord. 2. USB2.0 Port For firmware upgrade only 3. RS232 Control Port (RJ45) RJ45 to RS232 convertor cable is provided. 4. Video Format Selector For video format selection 5. -
Page 9: Remote Controller
This is a 20X/30X magnification optical zoom lens 16. Fix Mounting Holes For original wall/ceiling mount bracket 17. Tripod mounting holes 18. Bottom DIP Switch Remote Controller 1. Power Power ON the camera to turn the camera in operation status. -
Page 10: System Configuration
System Configuration Connection In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain these third- party components or accessories, Power Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other DC power adaptor. -
Page 11: Obtain Video Signal
Conductor: Stranding Material Nominal Diameter Solid Bare Copper 0.04 in. Shield Material Type Layer Material Coverage Tape Aluminum / Polyester / Aluminum 100% Braid Tinned Copper Nom. Capacitance Nom. Inductance Nom. Char. Impedance Conductor to shield 16.2 pF/ft 0.106 µ H/ft 75 Ohm Obtain Video Signal The camera can simultaneously have SDI video output and HDMI video output and IP video output. -
Page 12: Audio In / Out
Information of the camera initial setting status will display for 5 seconds. Camera Status Info Display 1. Camera PELCO ID for RS-485 control PELCO ID 2. Camera ID for IR Remote Controller IR ID 3. IR remote control signal receive current setting IR-RECEIVE 4. -
Page 13: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the camera and various system configuration capabilities using optional products. This section describes the ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 14 You can make RS232 connection cable if you have the following applications: Use extension cables included RJ45 to RS232 8 pin Mini Din adaptor to make RS232 connection for your control device. 10. Use extension cables included RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232 connection for your control device.
-
Page 15: Use Rs-422(Visca) / Rs485 (Pelco P/D)
12. How to make RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as below: Use RS-422(VISCA) / RS485 (PELCO P/D) You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. - Page 16 How to make RS422 connection and RS422 Daisy Chain multiple cameras connection with SONY controller as below SONY Keyboard RS422 Connection 10. How to make RS422 connection and RS422 Daisy Chain multiple cameras connection with Non-Sony controller as below: VISCA (Non-Sony) Keyboard RS422 Connection 11.
-
Page 17: Pelco P/D Keyboard Rs485 Connection
13. How to make RS422 Daisy Chain multiple camera connection with RS422 standard serial port controller: PELCO P/D Keyboard RS485 Connection Set RS422 control method on Bottom Dip Switch. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. ... -
Page 18: How To Make The Connection With Bolin Products
Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS485 connection by following the pin definition below: How to make RS485 multiple cameras connection with RS485 standard serial port controller: Note For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras. -
Page 19: Visca Over Ip Control
VISCA over IP Control With VISCA over IP function, you can control the camera using VISCA protocol on a controller equipped with IP communication capabilities via LAN. The communication specifications of VISCA over IP are followings: Interface: RJ-45 10/100M ... -
Page 20: Dip Switch Settings
DIP SWITCH SETTINGS The Dip switches are for setting the camera configuration for following items: 1. Camera ID Address for RS-485 PELCO protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. RS-232 / RS-422/485 baud rate 5. - Page 21 Numbers & Letters Video Resolution 1080i59.94 1080P29.97 720P59.94 1080P59.94 1080P50 1080I60 1080P30 1080P60 1080I50 1080P25 720P50 1080P50 720P25 720P30 720P60 IR Remote Controller ID Setting Set the IR SELECT switch on the back panel of the camera to 1, 2 or 3, which is the camera ID number that you want to operate on the Remote Controller.
-
Page 22: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 23: Exposure Menu
When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command. EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) FULL AUTO: The exposure is adjusted EXPOSURE MENU: FULL AUTO... -
Page 24: White Balance Menu
AE Response: The slow AE Response function allows you to reduce the exposure response speed. Usually the camera is set up so that the optimum exposure can be obtained automatically within about 1 second. However, using the slow AE response function allows you to lengthen the auto exposure response speed from the initial setup speed EX-COMP: (Exposure Compensation) When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable exposure... -
Page 25: Picture1 Menu
USER: This is a mode that enables you to manually set the control of WHITE BALANCE MENU R and B gain up to 256 steps. WB MODE USER NOTE: When you select USER, R. GAIN (red gain) and B. GAIN R GAIN B GAIN (blue gain) appear. -
Page 26: Picture2
PICTURE2 PICTURE2 CHROMA: CHROMA EXPOSURE HLC MODE You can set the brightness from OFF, LOW, MID, WHITE BALANCE BACKLIGHT COM. >PICTURE1 HIGH STABILIZER >PICTURE2 in each mode of the variable gamma mode. STABLE ZOOM PAN TILT ZOOM HLC MODE: GAMMA >SYSTEM HLC (Highlight Light Compensation) is a function to adjust AE and AF, and to perform the masking of light... -
Page 27: System Menu
PRESET SPEED: Set preset speed value from 0 to 5 to change the preset speed. PAN DIR: Camera horizontal Left and right orientation setting, option: Normal/Invert TILT DIR: Camera tilt up and down orientation setting, option: Normal/Invert SYSTEM Menu PELCO ID When using RS485 (PELCO P/D) control, Set Camera ID to the address that you want to control to. -
Page 28: Upgrading Mcu Firmware
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process... -
Page 29: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 30: Operating Multiple Cameras With The Infrared Remote Controller
When the STANDBY lamp is blinking If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to memorize the pan/tilt position. Press the PAN-TILT RESET button to reset the pan/tilt position. Zooming Button [T] - Zoom-IN and [W] - Zoom-OUT. -
Page 31: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. -
Page 32: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. The initial settings of each item are in bold. SDI Menu Configuration Menu EXPOSURE MODE FULL AUTO SLOW SHUTTER ON, OFF S. SHUTTER LIMIT 1/1, 1/2, 1/4, 1/8, 1/15, 1/30 AE RESPONSE 1 - 48 10.7dB, 14.3dB, 17.8dB, 21.4dB, 25dB, 28.6dB, 32.1dB, 35.7dB,... -
Page 33: Dimension
PAN TILT ZOOM DIGITAL ZOOM OFF, ON ZOOM RATIO OSD OFF, ON AF SEN. LOW , NORMAL MF SPEED 0 - 7 OVER, 1cm, 11cm, 30cm , 80cm, 1.2m, 1.4m, 1.6m, 2.0m, 2.5m, NEAR LIMIT 3.1m, 4.2m, 6m, 10m, 20m ADAPTIVE PT OFF, ON P/Z SPEED... - Page 34 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
