Summary of Contents for Bolin Technology BC-7-M-12262019

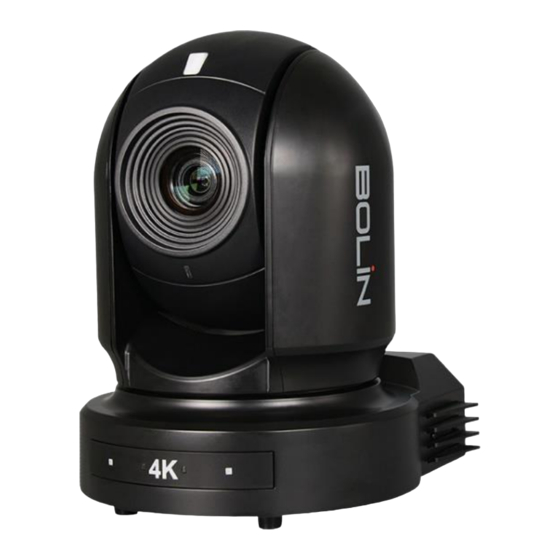

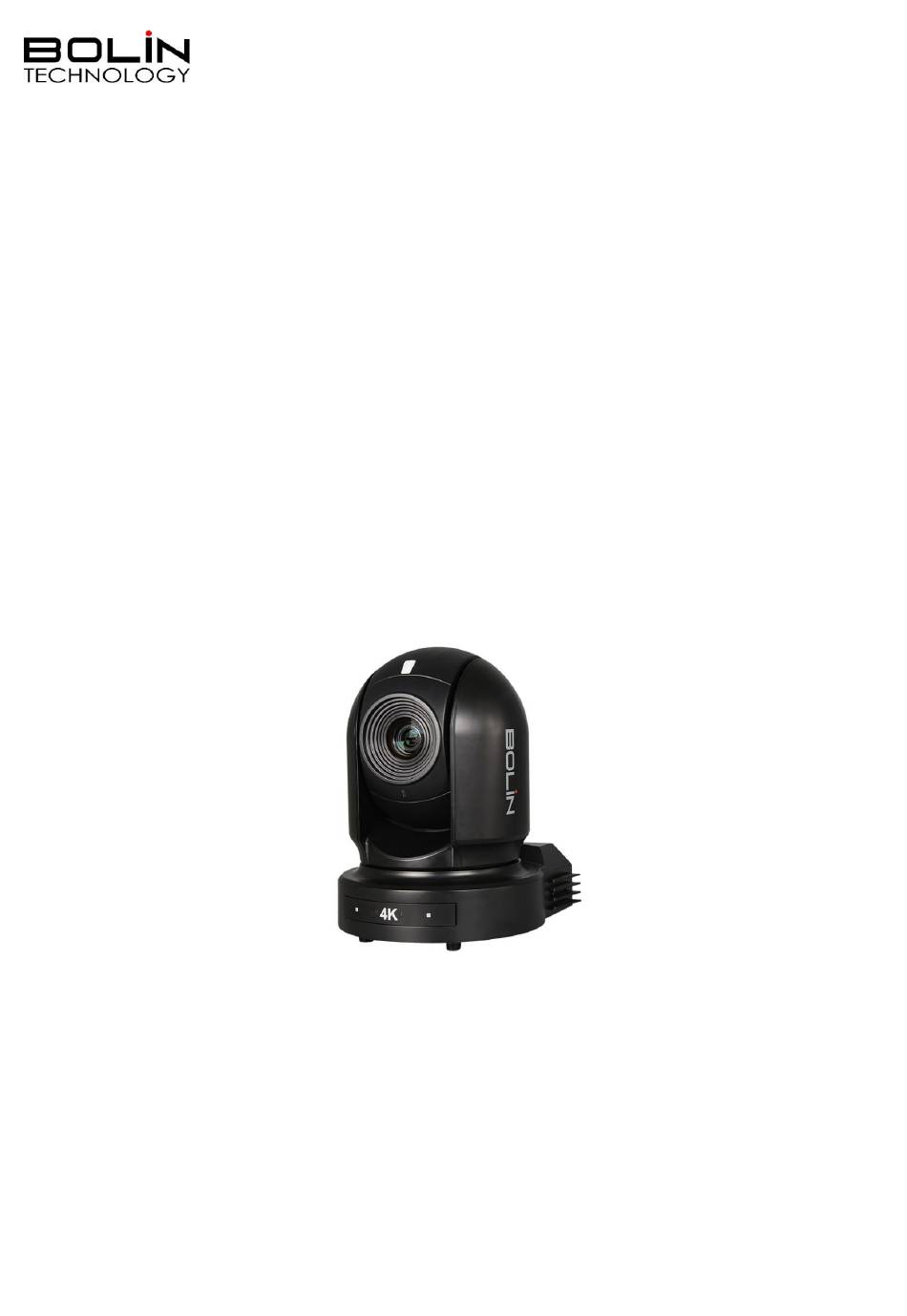

- Page 1 BC-7 Series 4K SDI+IP True Dual Output PTZ Camera USER MANUAL Part One: Camera User Manual VERSION: BC-7-M-12262019 BC-7-4K20S-S6MNB © 2020 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................4 WHAT’S IN THE BOX ................................. 7 OVERVIEW ....................................8 ......................................8 EATURES ................................... 9 AMERA IAGRAMS ..................................11 EMOTE ONTROLLER .................................. 12 YSTEM ONFIGURATION ......................................13 OWER ..................................13 ABLE EQUIREMENTS OBTAIN SIGNAL ..................................14 .................................... - Page 3 GAMMA ...................................... 42 NETWORK ....................................42 PAN TILT ZOOM M ................................. 43 SYSTEM MENU .................................... 43 ............................45 UTPUT VIDEO FORMAT SETTING FIRMWARE UPGRADE ................................45 MCU F ................................46 PGRADING IRMWARE ..............................46 PGRADING ENCODER FIRMWARE FPGA ................................46 PGRADING FIRMWARE ................................
-
Page 4: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2020 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 5 Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement, information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical errors in this manual.
- Page 6 using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed. Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface. Regulatory Compliance FCC Part 15 This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC...
-
Page 7: What's In The Box
WHAT’S IN THE BOX Note: The camera color may be in white or black per the item that is purchased. Accessories (Optional) -
Page 8: Overview
Overview This user guide is suitable for the following models: BC-7-4K20S-S3MNB/W (FHD, White) BC-7-4K20S-S3MNB/B (FHD, Black) BC-7-4K20S-S6MNB/W (4K, White) BC-7-4K20S-S6MNB/B (4K, Black) BC-7-4K20S-LS-4K (FHD-4K Upgrade License) Features 1/2.5 Inch CMOS sensor, Effective pixel number: 8.51 Megapixels Resolution: Up to 2160P29.97, 1080P59.94, 1080i59.94; ... -
Page 9: Camera Diagrams
Camera Diagrams... - Page 10 1. Front Tally Light 2. IR Remote Controller Sensors These are sensors to receive commands from infrared remote controller. 3. Lens This is a 20X magnification optical zoom lens of 4K image 4. Power LED Indicator Turns green when the camera is connected to power outlet. When the power is turned on, it takes about 15 to 30 seconds to display the image after LED turns on.
-
Page 11: Remote Controller
Remote Controller 1. Power Power ON the camera to turn the camera in operation status. Power OFF the camera to turn the camera in standby status. When the camera is powered OFF, the camera turns to the back and would be on standby mode. -
Page 12: System Configuration
System Configuration Connection In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain these third- party components or accessories, Connection with Serial + IP control with SDI/HDMI + IP video output Connection with Serial + IP control with SDI/HDMI + IP video output via HDBaseT output. -
Page 13: Power
Power Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other DC power adaptor. If using POE to power the camera, PoE+(IEEE802.3bt) is supported Ensure that the POE power source has sufficient power budget to power the camera, or some features may not function properly ... -
Page 14: Obtain Signal
Conductor: Stranding Material Nominal Diameter Solid Bare Copper 0.04 in. Shield Material Type Layer Material Coverage Tape Aluminum / Polyester / Aluminum 100% Braid Tinned Copper Nom. Capacitance Nom. Inductance Nom. Char. Impedance Conductor to shield 16.2 pF/ft 0.106 µ H/ft 75 Ohm Obtain Signal The camera can simultaneously have SDI video output and HDMI video output and IP video output. -
Page 15: Sd Card
SD Card Micro SD card can be inserted to the camera for local recording. Ensure that the Micro SD card’s pins are faced downward (logo faced Slide the card into the slot, and click into place To remove the card, click inward, and it will pop outward and may be removed ... -
Page 16: Use The Infrared Remote Controller
Use the Infrared Remote Controller To operate the camera from a short distance. For IR remote control details, refer to Operation Using the Infrared Remote Controller. Use RS-232 (VISCA) You can use RS-232 port to connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. - Page 17 Use extension cables included RJ45 to RS232 8 pin Mini Din adaptor to make RS232 connection for your control device. 10. Use extension cables included RJ45 to RS422/232 Phoenix terminal contact adaptor to make RS232 connection for your control device. 11.
-
Page 18: Use Rs-422(Visca) / Rs485 (Pelco P/D)
12. How to make RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as below: Use RS-422(VISCA) / RS485 (PELCO P/D) You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. - Page 19 SONY Keyboard RS422 Connection 10. How to make RS422 connection and RS422 Daisy Chain multiple cameras connection with Non-Sony controller as below: VISCA (Non-Sony) Keyboard RS422 Connection 11. Use extension cables RJ45 to RS422 Phoenix connecter adaptor included to make RS422 connection for your control device. 12.
-
Page 20: Pelco P/D Keyboard Rs485 Connection
13. How to make RS422 Daisy Chain multiple camera connection with RS422 standard serial port controller: PELCO P/D Keyboard RS485 Connection Set RS422 control method on Bottom Dip Switch. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. ... - Page 21 Use extension cables included RJ45 to RS422 Phoenix connecter adaptor to make RS485 connection for your control device. Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS485 connection by following the pin definition below: ...
-
Page 22: How To Make The Connection With Bolin Products
Note For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras. For control details, refer to Operating Instructions of control keyboard/station software. You need to match the communication speed (Baud Rate) between the camera and the joystick controller. ... -
Page 23: Use Hdbaset Video Output
Use HDBaseT Video Output This camera supports HDBaseT, which provides FHD/4K HDMI video, control (RS232/422, IR), audio, IP video streaming and IP control plus power for the camera transmit up to 80-100 meters via one Cat6 cable. HBBaseT Receiver must be used for HDBaseT signal transmit. HDBaseT Receiver 1. -
Page 24: Hdbaset Connection
HDBaseT Connection Use CAT6 cable to connect the HDBaseT receiver to the camera HDBaseT port. System connection with Bolin HDBaseT Rreceiver... -
Page 25: Power Up The Camera Using Hdbaset Receiver
Power up the camera using HDBaseT receiver Bolin HDBaset receiver uses 54V DC 2.77Amp power adaptor to provide power to the HDbaseT unit. The HDBaseT receiver unit provides power to the camera via CAT6 cable, the power standard is compatible with POH(Power-Over-HDBaseT), POE(IEEE802.3af/at/bt) which is up to 97W. - Page 26 Use the Infrared Remote Controller Via HDBaseT, you can use IR remote controller to control the camera from the remote side that is up to 100 meters away. RS232/RS422 Control Must set the camera in RS232 control method on Bottom Dip Switch. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.
- Page 27 RS232/422 Connection between the HDBaseT receiver and the controller: To make the RS232/RS422/RS485 control cable connection between the HDBaseT receiver and the controller: Use CAT6 network cable to make the RJ45 connector to connect to the HDBaseT Receiver. RS232: Make RJ45 connector for HDBaseT Receiver RS232 port as following: RS422: Make RJ45 connector for HDBaseT Receiver RS422 port as following: RS485: Make RJ45 connector for HDBaseT Receiver RS485 port as following:...
- Page 28 NOTE: Use RS422 ports for RS485 connection. Only use TX+ and TX- for RS485 connection. The RS232/RS422 serial port connection on controller side, please refer to the user guide of the controller. Use extension cables included to connect the RS232/RS422/RS485 control to the controller: RJ45 to RS232 extension adapter cable.
- Page 29 d) RS485 Connection: RJ45 to RS422/232 Phoenix terminal contact adaptor: Use extension cables included to make RS485 connection for your control device. NOTE: Use RS422 ports for RS485 connection. Only use TX+ and TX- for RS485 connection. Make the RS485 connection as following pinout definition instruction: ...
- Page 30 RS422 Daisy Chain multiple camera connection via HDBaseT receivers: RS485 Daisy Chain multiple camera connection via HDBaseT receivers: Operating Multiple Cameras Using RS-422/485 Using RS-422 (VISCA), you can connect up to 7 cameras. Using RS-485 (PELCO), you can connect up to 255 cameras. ...
-
Page 31: Use Ip Streaming And Control Via Hdbaset
Use IP Streaming and Control via HDBaseT Bolin HDBaseT Receiver supports IP Pass-Thru feature, which allows the camera transmit IP video streaming and IP control via the HDBaseT receiver. NOTE: This HDBaseT receiver is not an IP video encoder. The LAN Port is IP Pass-Thru for the camera with IP control or IP streaming functionality. -
Page 32: Visca Over Ip Control
VISCA over IP Control With VISCA over IP function, you can control the camera using VISCA protocol on a controller equipped with IP communication capabilities via LAN. The communication specifications of VISCA over IP are followings: Interface: RJ-45 10/100M ... -
Page 33: Tally Light Gpi I/O Connection
Tally Light GPI I/O connection GPI connection with RS422 VISCA control connection GPI connection with VISCA OVER IP control connection... -
Page 34: Dip Switch Settings
DIP SWITCH SETTINGS The Dip switches are for setting the camera configuration for following items: 1. Camera ID Address for RS-485 PELCO protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. RS-232 / RS-422/485 baud rate 5. - Page 35 Setting of the back panel Rotate DIP Switches The Rotate Dip Switch is for setting video format. Use small screw driver to turn the switch, the arrow points to the Numbers or the Letters. The video format that the Number or Letter stands for refer to the video format as the chart following: Numbers &...
-
Page 36: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 37: Exposure Menu
When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command. EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) EXPOSURE MENU: FULL AUTO FULL AUTO: Iris, Gain and Shutter Speed can... - Page 38 When you select one from various exposure modes, some of the following setting items that are required for the selected mode will appear. GAIN: Select the gain from the following: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB GAIN LIMIT: The gain limit can be set at Full Auto, Iris Priority, Shutter Priority mode.
-
Page 39: White Balance Menu
enable exposure compensation. When you set EX-COMP to ON, LEVEL appear and you can select the exposure compensation level from the following: –10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5 If you set the level to 0, exposure compensation will be disabled. Level +10.5 is the brightest and –10.5 is the darkest compensation value. -
Page 40: Detail Menu
NOTE: When you select the OPW (One Push White Balance) Perform the following operations: 1. Place an image of white subject (For example: A piece WHITE BALANCE MENU of white paper) in the center of the screen. WB MODE 2. Press the HOME button of the infrared remote controller. The one-push white balance adjustment is activated. -
Page 41: Picture Menu
H/V BALANCE: You can choose the ratio for horizontal and vertical contour correction signal elements. Choose a value from –2 to 0 to +2. When you choose a higher value, the horizontal contour correction elements become greater compared to the vertical elements. B/W BALANCE: You can adjust the balance between contours in black on the low brightness side of the spectrum and contours in white on the high brightness side. -
Page 42: Gamma
When the image stabilizer function is set to ON, you can obtain the image with less screen blur caused by shaking. The correction effect can be achieved at the vibration frequency around 10 Hz. The image stabilizer function uses the digital zoom method. Although there are changes in the angle of view and resolution, the sensitivity is maintained. -
Page 43: Pan Tilt Zoom Menu
PAN TILT ZOOM Menu The PAN TILT ZOOM menu is used to select the PAN TILT ZOOM MENU pan/tilt/ zoom mode. DIGITAL ZOOM EXPOSURE DIGITAL ZOOM: ZOOM RATIO OSD WHITE BALANCE Set to DIGITAL ZOOM ON, 12X digital zoom (with AF SENSITIVITY NORMAL DETAIL... - Page 44 When this item is set to ON, the message of the camera configuration appears for about 10 seconds on the screen, after the camera is powered on or rebooted. PRESET MEMORY: This feature allows you to save the image parameter to PRESET memory, turn it on to save most image parameters like as picture, white balance, exposure, focus mode, zoom positions when you call the preset.
-
Page 45: True Dual Output Video Format Setting
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process... -
Page 46: Upgrading Mcu Firmware
Upgrading MCU Firmware MCU Firmware can be upgraded by following these steps: 1. Load the .bin file onto a flash drive (Formatted as FAT32), and name the file “HD20.bin” 2. With the camera powered off, insert the flash drive to the USB port on the back panel of the camera 3. -
Page 47: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 48: Operating Multiple Cameras With Infrared Remote Controller
When the STANDBY lamp is blinking If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to memorize the pan/tilt position. Press the PAN-TILT RESET button to reset the pan/tilt position. Zooming Button (Slow Zoom) [T] - Zoom-IN and [W] - Zoom-OUT slowly Button (Fast Zoom) [T] - Zoom-IN and [W] - Zoom-OUT quickly... -
Page 49: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 9 sets of camera shooting conditions can be stored and recalled. 9 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. -
Page 50: Adjusting The Camera
Adjusting the camera Adjusting the camera, including camera image parameter (Gain, Color, Contrast, White Balance (Red & Blue), Black Level), camera speed (Pan/Tilt speed, zoom speed and preset speed), as well as Freeze, Back Light and One Push White Balance. Gain-Adjust Gain Press Gain button, the Gain button light will on, then press “+”... -
Page 51: Fn Mode Key
AI Button: Press AI button, the IR controller will switch to AI mode. Zoom: AI Feature, it is available when AI button is pressed. Adjust the zoom position of the person within the image, for example Close Up, Half-Body, Full-Body. i: AI feature Single target mode, use this mode when there is only one person as a tracking target in the camera image. -
Page 52: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. The initial settings of each item are in bold. SDI Menu Configuration Menu EXPOSURE MODE FULL AUTO SLOW SHUTTER OFF, ON S. SHUTTER LIMIT 1/1, 2/3, 1/2, 1/3, 1/4, 1/6, 1/8, 1/10, 1/15, 1/20, 1/30, 1/50 AE SPEED 1-48 GAIN LIMIT... - Page 53 MODE AUTO SPEED WHITE BALANCE OFFSET -7 to 0 to +7 OFF, ON MATRIX (When set to ON, the below items can be adjusted) SELECT STD, HIGH SAT, FL LIGHT LEVEL 0-14 PHASE -7 to 0 to +7 -99 to 0 to +99 -99 to 0 to +99 -99 to 0 to +99 -99 to 0 to +99...
- Page 54 IPv4 ADDRESS NETWORK 192.168.0.13 SUBNET MASK 255.255.255.0 GATEWAY 192.168.0.1 MAC ADDRESS xx-xx-xx-xx-xx-xx PAN TILT ZOOM DIGITAL ZOOM OFF, ON, SRZ ZOOM RATIO OSD OFF, ON AF SENSITIVITY NORMAL, LOW MF SPEED NEAR LIMIT OVER, 5m, 3m, 2m, 1,5m, 1.2m, 1.0m, 80cm, 55cm, 35cm, 25cm, 18cm, 14cm, 10cm, 8cm ADAPTIVE PT ON, OFF...
-
Page 55: Dimensions
Dimensions Unit: mm... - Page 56 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
