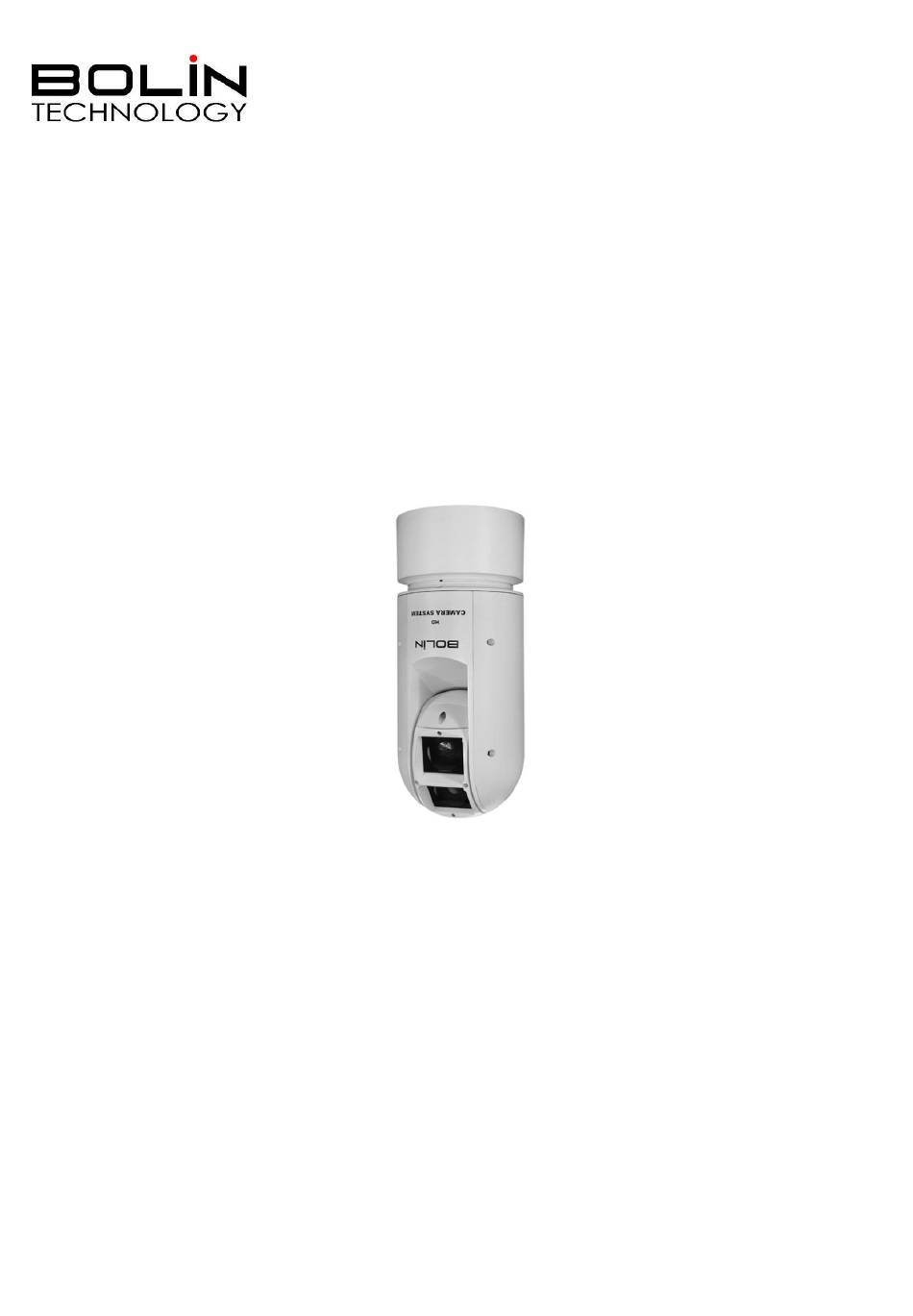

- Page 1 EX1000 SDI+IP SERIES IR LASER PTZ CAMERA USER MANUAL Part One: Camera User Manual VERSION: EXSN-B-M-10162017 © 2017 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION................................ 3 OVERVIEW ....................................5 WHAT’S IN THE BOX ..................................6 CAMERA DIAGRAMS ................................... 7 INSTALLING YOUR CAMERA ................................ 8 ..................................... 9 OWER NPUT ..................................10 OUNTING THE AMERA LASER ILLUMINATOR................................. 11 USE SDI VIDEO OUTPUT ................................12 .................................. -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2016 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 Warnings: If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera yourself. (We will not assume any responsibility for problems caused by unauthorized repair or maintenance.) This installation should be made by a qualified service person and should conform to all the local codes. ...
-
Page 5: Overview
1. B Class – Use for broadcasting, SDI video format 1080P and 1080I supported, frame rate up to 60/59.94. 2. S Class – Use for video surveillance or other applications, SDI video format 1080P and 720P supported, frame rate up to 60. EX1030SHD-B-L5SA1 (SDI+IP, Nitrogen) EX1030SHD-B-L5SNAP1 (SDI+IP, Nitrogen, POE) EX1030SHD-S-L5SA1 (SDI+ IP, Nitrogen) EX1030SHD-S-L5SNAP1... -
Page 6: What's In The Box
WHAT’S IN THE BOX Accessories- Optional... -
Page 7: Camera Diagrams
Camera Diagrams Camera Tail-Cable All cables are tagged to indicate their functions separately. The cables available may vary with the product model. -
Page 8: Installing Your Camera
Cable Connection NOTE! Use water proof / IP67 rated junction box/ connection box to protect the RJ45 and other connections. A water proof RJ45 connector is available on some models. Installing Your Camera The following diagrams are for your reference only. See the actual product to mount your camera. -
Page 9: Power Input
Cable Requirements Network cable 10/100 Mbps Ethernet CAT 5/5E UTP cables are applicable to the ANSI/EIA/TIA-568A/B and ISO/D. Eight wires in the network cable need to be inserted in parallel into the top of the cable connector. The cable connector needs to be crimped in position. -
Page 10: Mounting The Camera
NOTE: Important: Power supply requirement is 24VAC 2.5 Amp to ensure proper functionality of PT motor and LED illumination. Using power supply lower than 24VAC 2.5Amp will cause camera crashing or insatiability. Power Connector: Phoenix Connector Description 1. The anode and the cathode are not distinguished for phoenix connectors of red and black cables. 2. -
Page 11: Laser Illuminator
Wall Mount Open the bracket cover, mount it onto the wall or pole (use pole adaptor). Put on 3 screws onto the bottom of the camera, leave enough space to fit in the screw holes on the bracket, not to screw tight. Hold up the camera close under the bracket, insert the tail-cable of the camera into the chest of the bracket. -
Page 12: Use Sdi Video Output
Use SDI video output Starting the Camera After you have mounted the camera properly, connect the camera to power. Each time the camera is powered on, it will perform a self-test to check the Pan/Tilt/Zoom (PTZ function). After self-test, you can operate the camera. NOTE! ... - Page 13 VISCA (None-Sony) Keyboard RS422 Connection 2. Setup Camera ID, Baud Rate and Control Protocol In order for you to control a camera, the camera ID, baud rate and control protocol have to be set up in advance, Baud rate and the camera ID setting on the camera have to be the same as baud rate and camera ID setting on the system/control keyboard.
-
Page 14: Controlling The Camera
Controlling the Camera The operation of the control systems or devices of different makers may be different. To operate the camera, please refer to the manual of the control system or the device. Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. -
Page 15: The On-Screen Menu Configuration
The On-Screen Menu Configuration FULL AUTO 95 Preset EXPOSURE AE MODE IRIS PRI CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, SHUTTER 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 s BRIGHT... - Page 16 FUNCTION SETTING PRESET SETUP PRESET NUMBER 001-256 SET NEW PRESET DELETE PRESET EXIT TOUR SETUP SEQUENCE NUMBER DEFAULT DWELL 003-255 EDIT SEQUENCE RUN CONTIONOUSLY EXIT PATTERN SETUP PATTERN NUMBER RECORD NEW PATTERN 003-255 RUN CONTIONOUSLY EXIT SCAN SETUP PANNING NUMBER SET LEFT LIMIT SET RIGHT LIMIT DEFAULT SPEED...
- Page 17 WIDE-D (Wide dynamic range mode): Wide Dynamic: ON, OFF. The camera distinguishes light and dark areas within the same scene, adjusts the brightness for dark areas, and also controls the blown out highlights. You can select the wide dynamic range mode between ON and OFF. DEFOG: Defog: ON, OFF.
- Page 18 NONE: No effect. A/F: After operating the camera, the mode of focus be changed to auto form DIGITAL ZOOM: OFF manual. JOYSTICK RECOVER：NONE A/F RECOVER TIME: 000 A/I: After operate the camera, the mode of IRIS be changed to auto form A/I PECOVER TIME: 000 manual.
-
Page 19: Video Format
INTERFACE SET: This menu is used to set the following parameters: CAMERA ID: CAMERA ID: 001 Factory Default Setting: 001 BAUD RATE: 9600 EXIT Use RS485 Pelco-D can control up to 255 cameras, camera ID from 001 to 255 has to be set. Use RS422 VISCA protocol can control up to 7 cameras, camera ID from 1 to 7 has to be set. - Page 20 Turn the camera to the north, and then save it by call preset 1. SYSTEM INFO: CAMERA ID ：001 CAMERA ID: Modify in the menu of “INTERFACE SET”. BAUD RATE ：9600 BAUD RATE: Modify in the menu of “INTERFACE SET”. SDI VIDEO ：1080P/30 IP VIDEO ：1080P SDI VIDEO: Modify in the menu of “INTERFACE SET”.
- Page 21 Manual white balance Call Image normal Image Flip Call Color mode Black and white mode Call Auto Day/Night Mode Open menu Call Start Patrol Set Patrol Route Call Auto focus Manual focus TOUR SETUP: The menu is used to manage the tours. Total of 4 tours can be managed. SEQUENCE NUMBER: The current tour number that you are managing.
- Page 22 1. Push the joystick to the right to enter this setting menu. 2. Move the camera to the right limit position that you want, and then call the preset 1 to save. DEFAULT SPEED: Set the interval time from left to right during Scanning, and select value from 3 to 255 sec. RUN CONTINOUSELY: start the above scan.
-
Page 23: Use Ip Video Output
Use IP video output Setting Camera over the LAN To view and configure your camera via the local area network (LAN), you need to install the VMS (Video Management System) to access the camera. 1. Connect your camera and your PC as shown in the figure below to ensure the routing is available. 2. -
Page 24: Installing The Activex
Accessing Your Camera Before you begin, please check: 1. Make sure the self-test is completed. 2. Your camera is operating properly and connected to the network. 3. The PC client you are using is installed with Internet Explorer 10 or higher. 4. -
Page 25: Dimensions
Dimensions Unit: mm... -
Page 26: Specifications
Specifications... - Page 27 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
