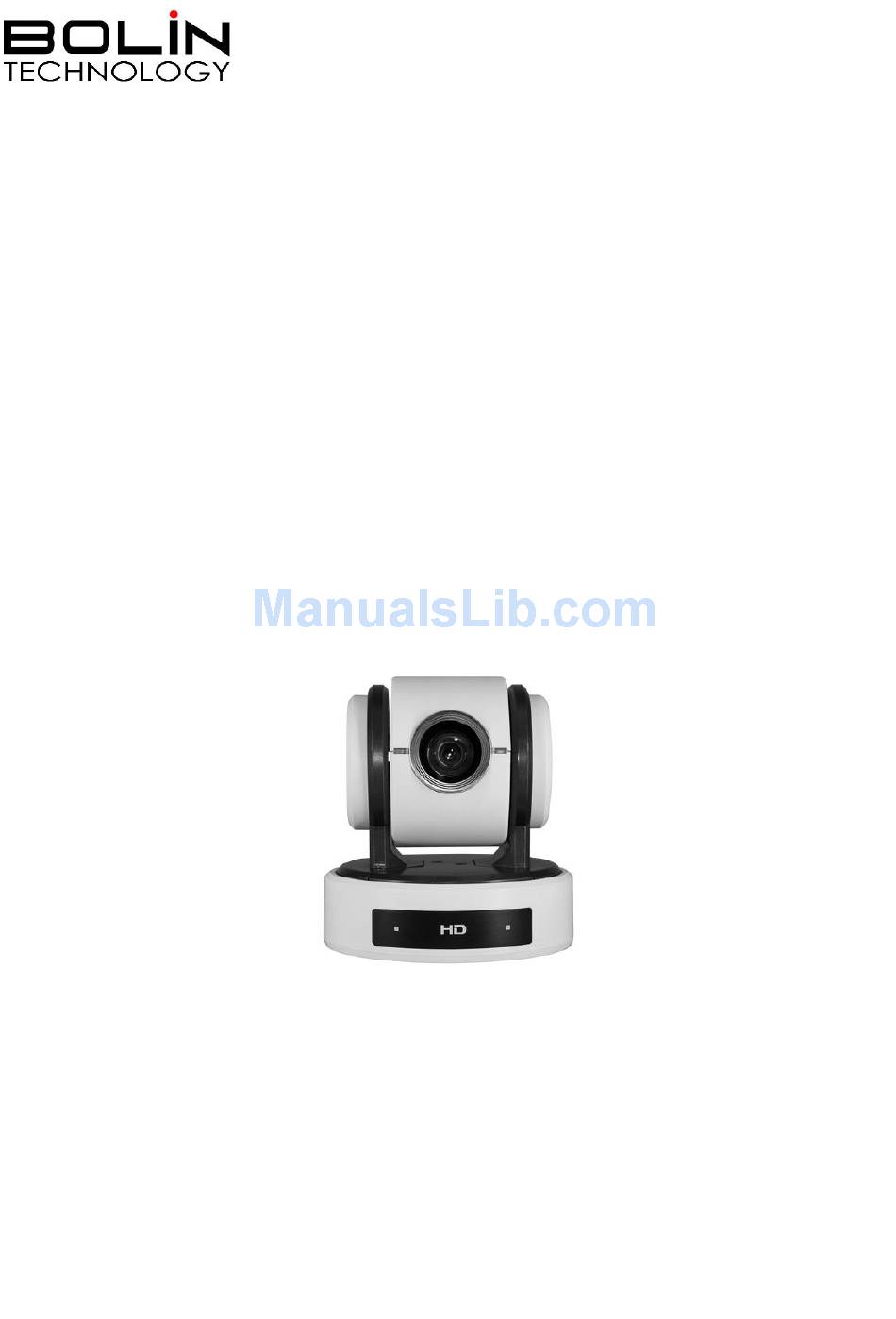

Page 1: Ptz Camera

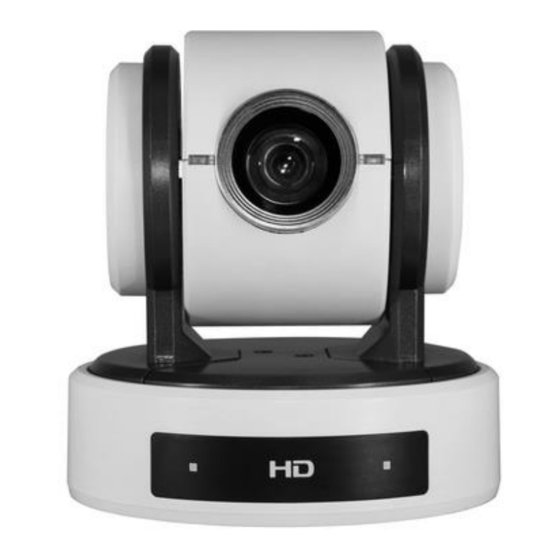

2 Series HD IP Dual Output PTZ Camera USER MANUAL VERSION: VCC-2HDSN-M-10162017 VCC-2HD10S-SN VCC-2HD10B-SN © 2017 Bolin Technology... -
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................. 5 OVERVIEW ....................................6 ....................................6 AMERA ERSION ..................................... 6 ODEL UMBERS ......................................6 EATURES CAMERA DIAGRAMS ................................. 7 ......................................7 AMERA ....................................7 XTENSION ABLE ..................................8 EMOTE ONTROLLER SYSTEM CONFIGURATION ................................. -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2016 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 Maintenance Precautions: If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber dust blowing ball. If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the center outward using anti-static gloves or an oil-free cloth.
-
Page 5: What's In The Box
WHAT’S IN THE BOX Accessories (Optional) -
Page 6: Overview
Overview Camera Version Hardware: HV:V.0A.000000eg.02.00A.02.A01 Software： SV:V0A0400A020401A01 Model Numbers This user guide is suitable for the following models: VCC-2HD10S-SN VCC-2HD10B-SN Features Resolution: 1080P,720P Zoom: Optical 10X Camera Body Video Output: HD-SDI(3G), DVI. Extension Cable Provides: o Video Output: IP, CVBS. -
Page 7: Camera Diagrams
Camera Diagrams Camera 1. 12V DC Power Port Connect the supplied AC power adaptor and cord. 2. Component Port for Extension Cable Extension Cable provides RS-232 port, RS-422/485 port, IP, CVBS video output and audio input/output. 3. SDI Port 3G-SDI 4. -
Page 8: Remote Controller
Remote Controller 1. CAMERA SELECT 2. FOCUS Auto Near Manual 3. DATA SCREEN On screen menu display ON/OFF 4. PAN-TILT Pan and Tilt direction control HOME: Home position, Resolution reset 5. L/R DIRECTION SET ... -
Page 9: System Configuration
System Configuration Connection In this connection configuration, DVI cable, CVBS video cable, data cable is required. To obtain these third party components or accessories, consult the dealer where you bought your camera. Notes Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other DC power adaptor. -
Page 10: Obtain Video Signal
Obtain Video Signal The camera can simultaneously have HD-SDI, IP video output and CVBS. SDI Video Signal The camera can simultaneously stream SDI video output with DVI video output. 1. Connect SDI cable in between the camera your SDI Device/display. 2. -
Page 11: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the camera and various system configuration capabilities using optional products. This section describes ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 12 RS232 Connection Set RS232 control method on Bottom Dip Switch. (See page 15). Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16). Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly. Does not need setting camera address in way of RS232 controlling.
- Page 13 RS422/482 Connection RS422 (VISCA) connection Set RS422 control method on Bottom Dip Switch (See page 15). Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16). Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly. Does not need setting camera address in way of RS422 (VISCA) controlling.
- Page 14 PELCO P/D Keyboard RS485 Connection 1. Use PELCO P/D compatible keyboard. Use preset 95# on the keyboard to bring up/exit camera OSD menu. Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu. To operate keyboard, please refer to the user manual of the keyboard you are using. Note For RS-232 VISCA control, this unit does not support daisy chain connection for using multiple cameras.
-
Page 15: Setup Camera Id, Baud Rate And Control Protocol
Setup Camera ID, Baud Rate and Control Protocol In order for you to control a camera, the camera ID, baud rate and control protocol have to be set up in advance, Baud rate and the camera ID setting on the camera have to be the same as baud rate and camera ID setting on the system/control keyboard. -
Page 16: Dip Switch Settings
DIP SWITCH SETTINGS The bottom dip switch is for setting the camera configuration for following items: 1. Camera ID Address for RS-485 PELCO protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. RS-232 / RS-422/485 baud rate 5. - Page 17 4. RS-232 / RS-422 Baud Rate Setting RS-232 / RS-422 Baud Rate Setting 2400 bps 4800 bps 9600 bps (Default) 38400 bps SW2: Factory Default Setting: OFF, OFF, OFF, ON, OFF, OFF, OFF, OFF Bit 1~4: Video resolution setting Bit5~6: Reserve Bit7~8: IR remote controller ID setting...
-
Page 18: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 19: Exposure Menu
EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris. BRIGHT: Adjust the brightness level (LEVEL) manually. SHUTTER PRI: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. -
Page 20: Picture Menu
PICTURE Menu The PICTURE menu is used to set the items related to the picture. SHARPNESS: Picture sharpness value ranges from 0 to 20. You can enjoy emphasized edge and high-resolution images. EFFECT: (Picture Effect) It consists of the following functions: Image effect from Off, B&W, NEG.ART NOISE REDUCTION: Noise reduction - you can enjoy clearer images by removing unnecessary noise. -
Page 21: System Menu
SYSTEM Menu PELCO ID This Camera ID setting on the menu is only for Pelco camera ID when using RS485 Pelco protocol. Set Camera ID to the address that you want to control to. This value is from 001-255. For VISCA CAMERA ID: Set the VISCA camera ID on DIP Switch (See page 16). -
Page 22: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. CAMERASELECT 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 23: Operating Multiple Cameras With The Infrared Remote Controller
Zooming Press either of the ZOOM buttons. Note When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky. Operating Multiple Cameras with the Infrared Remote Controller 1. -
Page 24: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. -
Page 25: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. For more details, refer to the pages in parentheses. The initial settings of each item are in bold. -
Page 26: Dimension
Dimension Unit: mm... -
Page 27: Specifications
Specifications... - Page 28 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
