Applications with restricted mounting space

Mounting with remote sensor
The device version with a remote sensor is suited for applications with restricted mounting
space. In this case the electronics housing is mounted at a separate position from which it
is easier accessible.
• Levelflex version (see product structure):
Feature 600 "Probe Design"
– Option MB "Sensor remote, 3m/9ft cable, detachable+mounting bracket"
– Option MC "Sensor remote, 6m/18ft cable, detachable+mounting bracket"
• On delivery, the connection cable is fixed to the probe.
– Length: 3 m (9 ft) or 6 m (19 ft)
– Minimum bending radius: 100 mm (4 inch)
• A mounting bracket for the electronics housing is supplied with this device version.
Mounting options:
– Wall mounting
– Pipe mounting; diameter: 42 to 60 mm (1-1/4 to 2 inch)
The probe with connection cable and the electronics are adjusted to match each other.
They are marked by a common serial number. Only components with the same serial
number shall be connected to each other.

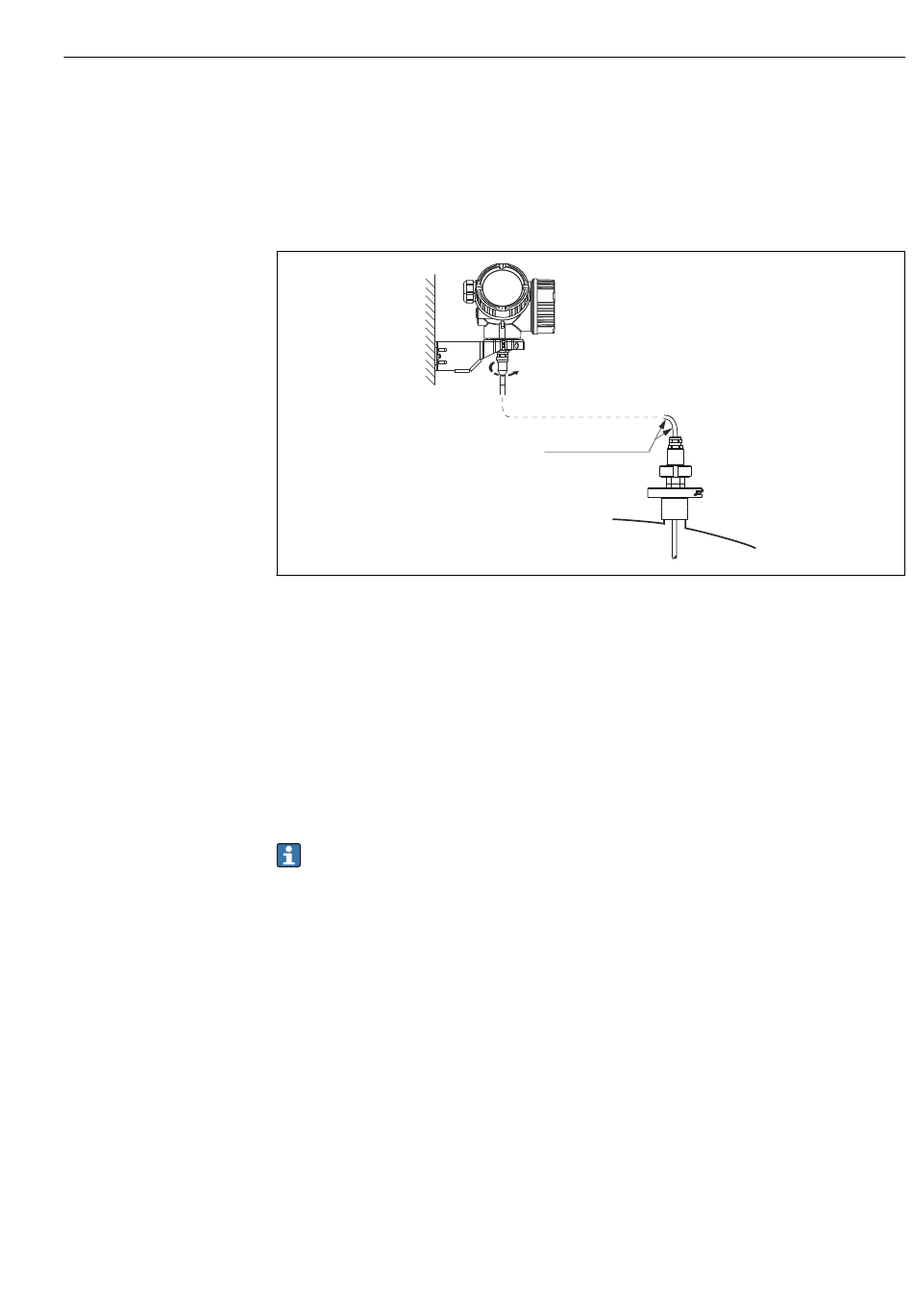

6 Nm (4.42 lbf ft)
3 m (9 ft) / 6 m (19 ft)
