KA01080F/00/EN/15.17
71385714
Products
Brief Operating Instructions

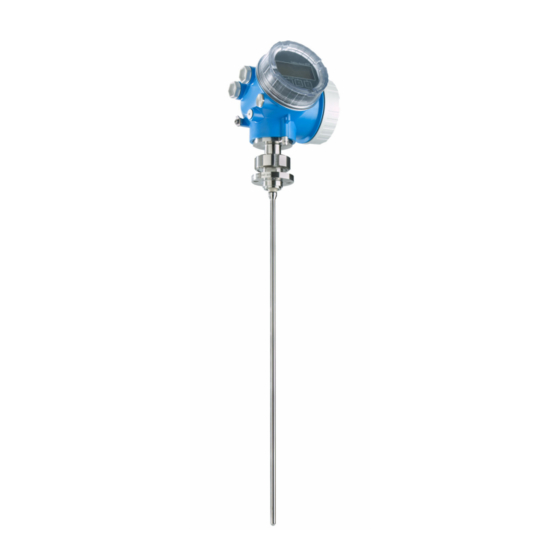

Levelflex FMP53
PROFIBUS PA
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levelflex FMP53 PROFIBUS PA and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Levelflex FMP53 PROFIBUS PA

Summary of Contents for Endress+Hauser Levelflex FMP53 PROFIBUS PA

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Levelflex FMP53 PROFIBUS PA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Levelflex FMP53 PROFIBUS PA Table of contents Table of contents Important document information ..........4 Symbols .

  • Page 4: Important Document Information

    Important document information Levelflex FMP53 PROFIBUS PA Important document information Symbols 1.1.1 Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in DANGER serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 5 Levelflex FMP53 PROFIBUS PA Important document information 1.1.4 Symbols for certain types of information Symbol Meaning Symbol Meaning Permitted Preferred Procedures, processes or actions that Procedures, processes or actions that are permitted. are preferred. Forbidden Procedures, processes or actions that Indicates additional information.

  • Page 6: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability.

  • Page 7: Workplace Safety

    Levelflex FMP53 PROFIBUS PA Basic safety instructions Workplace safety For work on and with the device: ‣ Wear the required personal protective equipment according to federal/national regulations. With divisible probe rods, medium may penetrate into the joints between the indivual parts of the rod.

  • Page 8: Product Description

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines.

  • Page 9: Incoming Acceptance And Product Identification

    ): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed.
  • Page 10 Incoming acceptance and product identification Levelflex FMP53 PROFIBUS PA 4.2.1 Nameplate Order code: Ser. no.: Ext. ord. cd.: Order code: Ser. no.: Ext. ord. cd.: A0021952  2 Example of a nameplate Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.)

  • Page 11: Storage, Transport

    Levelflex FMP53 PROFIBUS PA Storage, Transport Storage, Transport Storage conditions • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use the original packaging. Transport product to the measuring point WARNING Housing or probe may be damaged or break away.

  • Page 12: Mounting

    Mounting Levelflex FMP53 PROFIBUS PA Mounting Mounting requirements 6.1.1 Suitable mounting position A0014130  3 Mounting requirements for Levelflex Mounting distances • Distance (A) between wall and rod probe: – for smooth metallic walls: > 50 mm (2 in) – for plastic walls: > 300 mm (12 in) to metallic parts outside the vessel •...

  • Page 13: Mounting The Device

    Levelflex FMP53 PROFIBUS PA Mounting Mounting the device 6.2.1 Required mounting tools • To shorten rod or coax probes: Saw • For flanges and other process connections: appropriate mounting tools • To turn the housing: Hexagonal wrench 8 mm 6.2.2 Mounting the "Sensor remote"...
  • Page 14 Mounting Levelflex FMP53 PROFIBUS PA Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  4 Mounting the electronics housing using the mounting bracket; dimensions: mm (In) Wall mounting Pipe mounting Connecting the cable Required tools: •...
  • Page 15 Levelflex FMP53 PROFIBUS PA Mounting 6 Nm (4.42 lbf ft) 3 m (9 ft) / 6 m (19 ft) = 50 mm (2") A0015103 6.2.3 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: max.
  • Page 16 Mounting Levelflex FMP53 PROFIBUS PA 6.2.4 Turning the display module 3 mm A0032238 If present: Loosen the screw of the securing clamp of the electronics compartment cover using an Allen screw and turn the clamp 90° counterclockwise. Unscrew cover of the electronics compartment from the transmitter housing.

  • Page 17: Post-Installation Check

    Levelflex FMP53 PROFIBUS PA Mounting Post-installation check Is the device undamaged (visual inspection)? Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"...

  • Page 18: Electrical Connection

    Electrical connection Levelflex FMP53 PROFIBUS PA Electrical connection Connection conditions 7.1.1 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0011341  5 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Cable screen: Observe cable specifications...
  • Page 19 Levelflex FMP53 PROFIBUS PA Electrical connection Terminal for potential equalization line Cable entries Overvoltage protection module Endress+Hauser...
  • Page 20 Electrical connection Levelflex FMP53 PROFIBUS PA 7.1.2 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal +...
  • Page 21 Levelflex FMP53 PROFIBUS PA Electrical connection 7.1.3 Power supply PROFIBUS PA, FOUNDATION Fieldbus "Power supply; Output" "Approval" Terminal voltage E: 2-wire; FOUNDATION Fieldbus, switch output • Non-Ex 9 to 32 V G: 2-wire; PROFIBUS PA, switch output • Ex nA •...

  • Page 22: Connecting The Measuring Device

    Electrical connection Levelflex FMP53 PROFIBUS PA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K Connecting the measuring device...
  • Page 23 Levelflex FMP53 PROFIBUS PA Electrical connection Loosen the screw of the securing clamp on the connection compartment cover and turn the securing clamp 90° counterclockwise. Unscrew the connection compartment cover. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.

  • Page 24: Post-Connection Check

    Electrical connection Levelflex FMP53 PROFIBUS PA ≤ 3 (0.12) A0013661  7 Dimensions: mm (in) To remove cables from the terminal: Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two terminal holes while simultaneously pulling the cable end out of the terminal.

  • Page 25: Integration Into A Profibus Network

    Levelflex FMP53 PROFIBUS PA Integration into a PROFIBUS network Integration into a PROFIBUS network Overview of the device database files (GSD) Manufacturer ID 17 (0x11) Ident number 0x1558 Profile version 3.02 GSD file Information and files under: • www.endress.com GSD file version •...
  • Page 26 Integration into a PROFIBUS network Levelflex FMP53 PROFIBUS PA 2 + 8 = 10 A0015902  9 Example of hardware addressing: switch 8 is in position "OFF"; switches 1 to 7 define the address. 8.2.2 Software addressing Set switch 8 to "ON".

  • Page 27: Commissioning Via Wizard

    If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. DeviceCare is available for download at www.software-products.endress.com. The download requires a registration in the Endress+Hauser software portal. Endress+Hauser...

  • Page 28: Commissioning (Via Operating Menu)

    Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.1 Display and operating module 10.1.1 Display appearance User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635  11 Appearance of the display and operation module for on-site operation Measured value display (1 value max.
  • Page 29 Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.1.2 Operating elements Meaning Minus key For menu, submenu Moves the selection bar upwards in a picklist. A0018330 For text and numeric editor In the input mask, moves the selection bar to the left (backwards).
  • Page 30 Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA 10.1.3 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: • Setup • Conf. backup disp. • Env.curve •...

  • Page 31: Operating Menu

    Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.2 Operating menu Parameter/Submenu Meaning Description Language Defines the operating language of the on-site display. Setup When appropriate values have been assigned toall setup parameters, the measured should be completely configured in a standard application.

  • Page 32: Unlock The Device

    Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA 10.3 Unlock the device If the device has been locked, it must be unlocked before the measurement can be configured. For details refer to the Operating Instructions of the device: BA01007F (FMP53, PROFIBUS PA) 10.4...

  • Page 33: Configuration Of A Level Measurement

    Levelflex FMP53 PROFIBUS PA Commissioning (via operating menu) 10.5 Configuration of a level measurement 20 mA 100% 4 mA A0011360  13 Configuration parameters for level measurements in liquids LN = Length of probe R = Reference point of the measurement...

  • Page 34: User-Specific Applications

    Commissioning (via operating menu) Levelflex FMP53 PROFIBUS PA Setup → Full calibration  Enter distance F between the minimum (0%) and maximum (100%) level. Setup → Level  Displays the measured level L. 10. Setup → Distance  Displays the distance D between the reference point R and the level L.
  • Page 36 *71385714* 71385714 www.addresses.endress.com...
