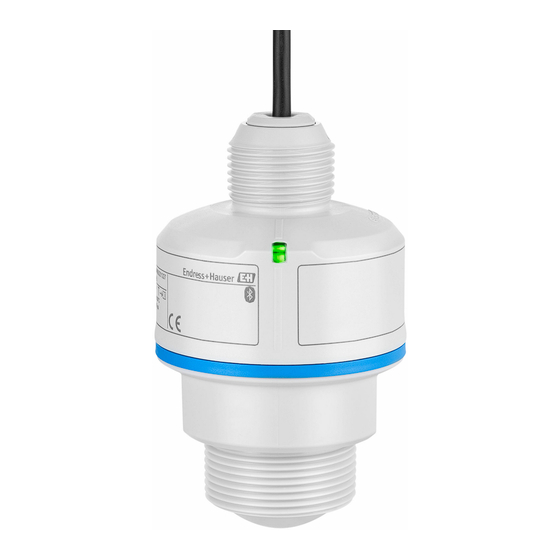

Endress+Hauser Micropilot FMR10B Operating Instructions Manual

Endress+Hauser Micropilot FMR10B Operating Instructions Manual

Free-space radar
Hide thumbs Also See for Micropilot FMR10B:

Advertisement

Quick Links

BA02372F/00/EN/01.24-00
71670077
2024-09-01
Products
Operating Instructions
Micropilot FMR10B
Free-space radar
Solutions
Services

Advertisement

loading
Need help?

Need help?

Do you have a question about the Micropilot FMR10B and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Micropilot FMR10B

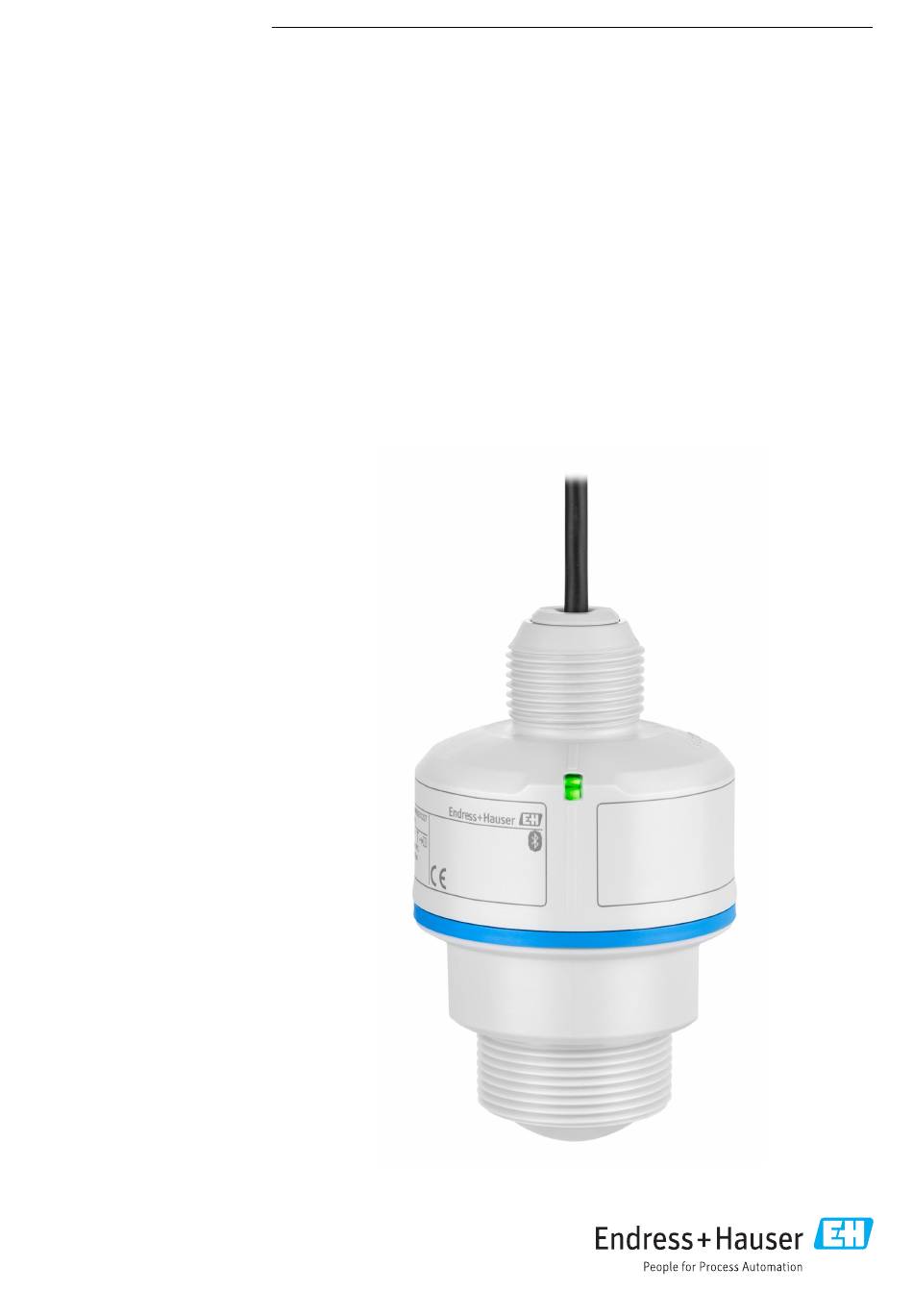

  • Page 1 Products Solutions Services BA02372F/00/EN/01.24-00 71670077 2024-09-01 Operating Instructions Micropilot FMR10B Free-space radar...
  • Page 2 The manufacturer reserves the right to modify technical data without prior notice. The Endress+Hauser sales organization will supply you with current information and updates to these instructions. Endress+Hauser...
  • Page 3: Table Of Contents

    Micropilot FMR10B Table of contents Table of contents About this document ....5 Commissioning ....21 Document function .
  • Page 4 Table of contents Micropilot FMR10B 13.13 UNI flange 2"/DN50/50, PP ....50 13.14 UNI flange 3"/DN80/80, PP ....51 13.15 UNI flange 4"/DN100/100, PP .
  • Page 5: About This Document

    Micropilot FMR10B About this document About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
  • Page 6: List Of Abbreviations

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser...
  • Page 7: Registered Trademarks

    Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Basic safety instructions...
  • Page 8: Workplace Safety

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
  • Page 9: Security

    The device fulfills general safety requirements and legal requirements. It also complies with the EU directives listed in the device-specific EU declaration of conformity. Endress+Hauser confirms this fact by affixing the CE mark to the device. IT security Our warranty is valid only if the product is installed and used as described in the Operating Instructions.
  • Page 10: Incoming Acceptance And Product

    Incoming acceptance and product identification Micropilot FMR10B Incoming acceptance and product identification Incoming acceptance DELIVERY NOTE 1 = 2 A0016870 Check the following during incoming acceptance: • Is the order code on the delivery note (1) identical to the order code on the product sticker (2)? •...
  • Page 11: Storage And Transport

    Micropilot FMR10B Mounting Storage and transport 4.3.1 Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks Storage temperature –40 to +80 °C (–40 to +176 °F) 4.3.2...
  • Page 12: Internal Vessel Fittings

    Mounting Micropilot FMR10B Internal vessel fittings α A0031777 Avoid internal fittings (point level switches, temperature sensors, struts, vacuum rings, heating coils, baffles etc.) inside the signal beam. Pay attention to the beam angle α. Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface.
  • Page 13: Mounting The Device

    Micropilot FMR10B Mounting Mounting the device 5.6.1 Installation types A0055956  2 Wall or ceiling mount Wall mounting adjustable Tightened at antenna end process connection Tightened at cable entry process connection Wall mounting with cable entry process connection Rope mounting...
  • Page 14 Mounting Micropilot FMR10B Please note the limits for the diameter and length of the nozzle. 40 mm (1.5 in) antenna, installation outside nozzle • D: min. 40 mm (1.5 in) • L: max. (D - 30 mm (1.2 in)) × 7.5 40 mm (1.5 in) antenna, installation inside nozzle...
  • Page 15 Micropilot FMR10B Mounting 5.6.5 Installation with mounting bracket, adjustable The mounting bracket can be ordered as an optional accessory. A0056001  6 Installation with mounting bracket, adjustable Mounting bracket, adjustable for 40 mm (1.5 in) antenna, wall mounting Mounting bracket, adjustable for 40 mm (1.5 in) antenna, ceiling mounting •...
  • Page 16: Post-Mounting Check

    Mounting Micropilot FMR10B 5.6.6 Cantilever installation, with pivot The cantilever, wall bracket and mounting frame can be ordered as accessories. A0028412  8 Cantilever installation, with pivot Cantilever with wall bracket (side view) Cantilever with mounting frame (side view) Cantilever can be turned, e.g. in order to position the device over the center of the flume (top view)
  • Page 17: Electrical Connection

    Micropilot FMR10B Electrical connection  Is the device properly secured?  Does the device comply with the measuring point specifications? For example:  Process temperature  Process pressure  Ambient temperature  Measuring range Electrical connection Connecting the device 6.1.1 Potential equalization No special measures for potential equalization are required.
  • Page 18: Ensuring The Degree Of Protection

    Operation options Micropilot FMR10B 6.1.6 Overvoltage protection The device satisfies the IEC/DIN EN 61326-1 product standard (Table 2 Industrial environment). Depending on the type of connection (DC power supply, input line, output line), different test levels are used to prevent transient overvoltages (IEC/DIN EN 61000-4-5 Surge) in accordance with IEC/DIN EN 61326-1: Test level for DC...
  • Page 19: Overview Of The Operating Menu

    Operation via Bluetooth® wireless technology Prerequisite: Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.07 or FieldXpert SMT70/SMT77 The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.
  • Page 20: Led Indicator

    The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous (Ex Zone 2) and non-hazardous areas. It is suitable for commissioning and maintenance staff. It manages Endress+Hauser and third-party field instruments with a digital communication interface and documents the progress of the work.
  • Page 21: Commissioning

    • The Bluetooth® function can be deactivated after initial device setup. A0033202  12 QR code for free Endress+Hauser SmartBlue App Download and installation: 1. Scan the QR code or enter SmartBlue in the search field of the Apple App Store (iOS) or Google Play Store (Android).
  • Page 22: Commissioning Via Smartblue App

    Commissioning Micropilot FMR10B Commissioning via SmartBlue app 8.3.1 SmartBlue App 1. Scan the QR code or enter "SmartBlue" in the search field of the App Store.  A0039186  13 Download link 2. Start SmartBlue. 3. Select device from livelist displayed.
  • Page 23 Micropilot FMR10B Commissioning 8.5.1 Level measurement in liquids 100% A0016933  14 Configuration parameters for level measurement in liquids Reference point of measurement Length of antenna + 10 mm (0.4 in) 50 to 80 mm (1.97 to 3.15 in); medium εr < 2...
  • Page 24 Commissioning Micropilot FMR10B 8.5.2 Level measurement in bulk solids 100% A0016934  15 Configuration parameters for level measurement in bulk solids Reference point of measurement Length of antenna + 10 mm (0.4 in) Distance Level "Empty calibration" parameter (= 0 %) "Full calibration" parameter (= 100 %) 8.5.3...
  • Page 25: Configuring "Frequency Mode" Parameter

    Micropilot FMR10B Commissioning Flow measurement configuration A0055824  17 Example: Khafagi-Venturi flume Empty calibration (= zero point) Distance Level A0055825  18 Example: Triangular weir Empty calibration (= zero point) Distance Level Configuring "Frequency mode" parameter The Frequency mode parameter is used to define country or region-specific settings for the radar signals.
  • Page 26: Simulation" Submenu

    Operation Micropilot FMR10B "Simulation" submenu Process variables and diagnostic events can be simulated with the Simulation submenu. Navigation: Diagnostics → Simulation During simulation of the switch output or current output, the device issues a warning message for the duration of the simulation.
  • Page 27: Adapting The Device To Process Conditions

    Remedial action: The standard user name is "admin" and the password is the device serial number indicated on the device nameplate (only if the password was not changed by the user beforehand) If the password has been forgotten, contact Endress+Hauser Service (www.addresses.endress.com) Connection via SmartBlue not possible •...
  • Page 28: Additional Tests

    For information on measures in the case of an error message: See   "Pending diagnostic messages" section. If the measures do not rectify the problem, contact your Endress+Hauser office. 10.1.4 Additional tests If no clear cause of the error can be identified or the source of the problem can be both the device and the application, the following additional tests can be performed: 1.
  • Page 29: Diagnostic Information Via Led Indicator

    Micropilot FMR10B Diagnostics and troubleshooting 10.2 Diagnostic information via LED indicator A0055146  19 LED indicator on the device • Operating status LED is continuously lit in green: everything is OK • Operating status LED is continuously lit in red: diagnosis type "Alarm" is active •...
  • Page 30: List Of Diagnostic Events

    Diagnostics and troubleshooting Micropilot FMR10B 10.6.1 List of diagnostic events Diagnoses 168, 203, 204, 242, 252, 420, 421, 806, 846, 847, 848 and 952 cannot occur with this device. For diagnoses 270, 273 and 805: The device must be replaced if the electronics are replaced.
  • Page 31 Micropilot FMR10B Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Configuration 1. Update firmware Alarm incompatible 2. Execute factory reset Dataset different 1. Check dataset file Warning 2. Check device parameterization 3.
  • Page 32: Event Logbook

    Diagnostics and troubleshooting Micropilot FMR10B Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] In safety distance 1. Check level Warning 2. Check safety distance 3. Reset self holding Foam detected Check process conditions...
  • Page 33: Overview Of Information Events

    Micropilot FMR10B Diagnostics and troubleshooting 10.7.3 Overview of information events Info number Info name I1000 --------(Device ok) I1079 Sensor changed I1089 Power on I1090 Configuration reset I1091 Configuration changed I11074 Device verification active I1110 Write protection switch changed I11104 Loop diagnostics...
  • Page 34: Device Information

    Diagnostics and troubleshooting Micropilot FMR10B 10.8.2 Resetting the password via the operating tool Enter a code to reset the current ' M aintenance' password. The code is deliverd by your local support. Navigation: System → User management → Reset password → Reset password  For details see the "Description of device parameters"...
  • Page 35: Maintenance

    12.1 General information 12.1.1 Repair concept The Endress+Hauser repair concept is devised in such a way that repairs can only be carried out through device replacement. 12.1.2 Replacing a device After the device is replaced, previously saved parameters can be copied to the newly installed device.
  • Page 36: Disposal

    Accessories Micropilot FMR10B 12.3 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste.
  • Page 37: Securing Nut G 2

    Micropilot FMR10B Accessories G1 1/2" DIN ISO 228 A0028849  21 Dimensions of securing nut. Unit of measurement mm (in) Material Order code 52014146 13.3 Securing nut G 2" Suitable for devices with G 2" and MNPT 2" antenna end process connection.
  • Page 38: Uni Adapter Mnpt 1½" > Mnpt 2

    Accessories Micropilot FMR10B 40 (1.57) A0055848  23 Dimensions of Uni adapter Material Order code 71662415 13.5 Uni adapter MNPT 1½" > MNPT 2" Temperature range –40 to 65 °C (–40 to 150 °F) 39.1 (1.56) A0055847  24 Dimensions of Uni adapter...
  • Page 39: Mounting Bracket, Adjustable, Wall/Rope/Ceiling, 75 Mm

    Micropilot FMR10B Accessories 60 (2.36) G1 1/2" 69 (2.72) A0055301  25 Flooding protection tube dimensions 40 mm (1.5 in). Unit of measurement mm (in) Material Order code 71091216 13.7 Mounting bracket, adjustable, wall/rope/ceiling, 75 mm The mounting bracket can be used for mounting on a wall, a rope or a ceiling.
  • Page 40: Mounting Bracket, Adjustable, Wall, 200 Mm

    Accessories Micropilot FMR10B Order number (G 1"/NPT 1") 71325079 13.7.2 Antenna end process connection G 1½"/NPT 1½" 92.5 (3.64) 75 (2.95) 70 (2.76) 9 (0.35) 12 (0.47) 9 (0.35) A0055372  27 Dimensions of mounting bracket. Unit of measurement mm (in) Consists of: •...
  • Page 41: Angle Bracket For Wall Mounting

    Micropilot FMR10B Accessories Consists of: • 1 × mounting bracket, 316L (1.4404) • 1 × angle bracket, 316L (1.4404) • 3 × screws, A4 • 3 × securing disks, A4 Order number (G 1"/NPT 1") 71662421 13.8.2 Antenna end process connection G 1½"/NPT 1½"...
  • Page 42: Cantilever, Pivotable

    Accessories Micropilot FMR10B Material 316L (1.4404) Order number for G 1½" process connection 71452324 Also suitable for MNPT 1½" Order number for G 2" process connection 71452325 Also suitable for MNPT 2" 13.10 Cantilever, pivotable 13.10.1 Installation type sensor cable entry process connection A0028885 ...
  • Page 43 Micropilot FMR10B Accessories Weight: 2.1 kg (4.63 lb) Material 316L (1.4404) Order number 71452315 • 35 mm (1.38 in) openings for all G 1" or MNPT 1" cable entry thread process connections • 22 mm (0.87 in) opening can be used for any additional sensor •...
  • Page 44 Accessories Micropilot FMR10B 13.10.2 Installation type sensor antenna end process connection A0028886  34 Installation type sensor antenna end process connection Installation with cantilever and wall bracket Installation with cantilever and mounting frame Cantilever Wall bracket Mounting frame 500 mm cantilever with pivot, sensor antenna end process connection G 1½"...
  • Page 45 Micropilot FMR10B Accessories 1 000 mm cantilever with pivot, sensor antenna end process connection G 1½" 1085 (42.7) 35 (1.4) 300 (11.8) 75 (2.9) 75 (2.9) 100 (3.9) 750 (29.5) 35 (1.4) A0037803  36 Dimensions of 1 000 mm cantilever with pivot, for sensor antenna end process connection G 1½". Unit of...
  • Page 46 Accessories Micropilot FMR10B 13.10.3 Mounting stand, 700 mm (27.6 in) for cantilever with pivot 3.2 (0.13) 60 (2.36) ø33.7 (1.3) 4 (0.16) 20 (0.8) 55 (2.17) 109 (4.29) (3.94) 130 (5.12) 150 (5.91) A0037799  37 Dimensions. Unit of measurement mm (in) Weight: 4.2 kg (9.26 lb)
  • Page 47: Pivotable Mounting Bracket

    Micropilot FMR10B Accessories Weight: 6 kg (13.23 lb) Material 316L (1.4404) Order number 71452326 13.10.5 Wall bracket for cantilever with pivot 3.2 (0.1) 4 (0.16) ø33.7 (1.3) 6.5 (0.3) 25 (1.0) 88 (3.5) 110 (4.3) 150 (5.9) A0019350  39 Dimensions of the wall bracket.
  • Page 48: Fau40 Alignment Unit

    Accessories Micropilot FMR10B 100 (3.94) 6.8 (0.27) 177 (6.97) 358 (14.1) A0038143  40 Dimensions of pivotable mounting bracket. Unit of measurement mm (in) 34 mm (1.34 in) openings for all G 1" or MNPT 1" cable entry thread process...
  • Page 49 Micropilot FMR10B Accessories 15° 15° (0.39) <360 NPT ¾ (14.2) NPT 1 70 (2.76) 500 (19.7) (0.8) (1.18) 19 (0.75) A0045330  41 Dimensions. Unit of measurement mm (in) Welding flange UNI flange Material • Flange: 304 • Pipe: Steel, galvanized •...
  • Page 50: Uni Flange 2"/Dn50/50, Pp

    Accessories Micropilot FMR10B 13.13 UNI flange 2"/DN50/50, PP 120 (4.72) 125 (4.92) 165 (6.5) A0037946  42 Dimensions of UNI flange 2"/DN50/50. Unit of measurement mm (in) Sensor connection in accordance with the product structure "Antenna end process connection" Material...
  • Page 51: Uni Flange 3"/Dn80/80, Pp

    Micropilot FMR10B Accessories 13.14 UNI flange 3"/DN80/80, PP 150 (5.91) 160 (6.3) 200 (7.87) A0037947  43 Dimensions of UNI flange 3"/DN80/80. Unit of measurement mm (in) Sensor connection in accordance with the product structure "Antenna end process connection" or "Cable entry process connection"...
  • Page 52: Uni Flange 4"/Dn100/100, Pp

    Accessories Micropilot FMR10B 13.15 UNI flange 4"/DN100/100, PP 175 (6.89) 190.5 (7.5) 228.6 (9.0) A0037948  44 Dimensions of UNI flange 4"/DN100/100. Unit of measurement mm (in) Sensor connection in accordance with the product structure "Antenna end process connection" or "Cable entry process connection"...
  • Page 53: Adjustable Flange Seal

    Micropilot FMR10B Accessories 13.16 Adjustable flange seal The adjustable flange seal is used to align the sensor. ød øD A0045324  45 Dimensions Technical data: version DN/JIS Order code 71074263 71074264 71074265 Compatible with DN80 PN10/40 DN100 PN10/16 • DN150 PN10/16 •...
  • Page 54: Devicecare Sfe100

    13.17 DeviceCare SFE100 Configuration tool for IO-Link, HART, PROFIBUS and FOUNDATION Fieldbusfield devices DeviceCare is available for download free of charge at www.software-products.endress.com. You need to register in the Endress+Hauser software portal to download the application. Technical Information TI01134S 13.18 Device Viewer All the spare parts for the device, along with the order code, are listed in the Device Viewer (www.endress.com/deviceviewer).
  • Page 55: Technical Data

    Micropilot FMR10B Technical data Technical data 14.1 Input 14.1.1 Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on E, the empty distance entered. 14.1.2 Measuring range The measuring range starts at the point where the beam hits the tank floor. Levels below this point cannot be measured, particularly in the case of spherical bases or conical outlets.
  • Page 56 • Relative permittivity (ε value), Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) Measurement in storage vessel Storage vessel - measuring conditions Calm medium surface (e.g. bottom filling, filling via immersion tube or rare filling from...
  • Page 57 Micropilot FMR10B Technical data 40 mm (1.5 in) antenna in storage vessel Media group Measuring range A (ε 1.4 to 1.9) 10 m (33 ft) B (ε 1.9 to 4) 10 m (33 ft) C (ε 4 to 10) 10 m (33 ft) D (ε...
  • Page 58: Operating Frequency

    Technical data Micropilot FMR10B Media group Measuring range C (ε 4 to 10) 10 m (33 ft) D (ε >10) 10 m (33 ft) 14.1.3 Operating frequency approx. 80 GHz Up to eight devices can be installed in a tank without the devices mutually influencing one another.
  • Page 59 Micropilot FMR10B Technical data R Lmax [ ] W U – 12V R Lmax £ 23 mA A0052602 Power supply 12 to 30 V maximum load resistance Lmax Supply voltage If load is too great: • Failure current is indicated and error message is displayed (indication: MIN alarm current) •...
  • Page 60: Environment

    Technical data Micropilot FMR10B Linearization tables for calculating the flow rate are pre-programmed into the device and include the following: • Flumes • Khafagi-Venturi flume • Venturi flume • Parshall flume • Palmer-Bowlus flume • Trapezoidal flume (ISO 4359) • Rectangular flume (ISO 4359) •...
  • Page 61: Electromagnetic Compatibility (Emc)

    Micropilot FMR10B Technical data 14.3.7 Electromagnetic compatibility (EMC) • Electromagnetic compatibility as per EN 61326 series and NAMUR recommendation EMC (NE21) • Maximum measured error during EMC testing: < 0.5 % of the span. For more details, refer to the EU Declaration of Conformity (www.endress.com/downloads).
  • Page 62: Process

    < =4 bar (58 psi) The pressure range may be further restricted in the case of a CRN approval. 14.4.2 Relative permittivity For liquids • ε ≥ 1.8 • Contact Endress+Hauser for lower ε values For bulk solids ε ≥ 1.6 Endress+Hauser...
  • Page 63: Additional Technical Data

    Micropilot FMR10B Technical data For applications with a lower relative permittivity than indicated, contact Endress+Hauser. For the relative permittivity values (ε values) of many media commonly used in industry, please refer to: • Relative permittivity (ε value), Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) 14.5...
  • Page 64: Index
