Endress+Hauser Levelflex FMP53 FOUNDATION Fieldbus Operating Instructions Manual page 156

Operating menu
Ramp at echo lost
Navigation
Prerequsite
Description
User entry
Factory setting
Additional information
Blocking distance
Navigation
Description
User entry
Factory setting
Additional information
156
 Setup → Advanced setup → Safety sett. → Ramp echo lost
Output echo lost (→  155) = Ramp at echo lost
Define the slope of the ramp in the case of a lost echo.
Signed floating-point number
0.0 %/min

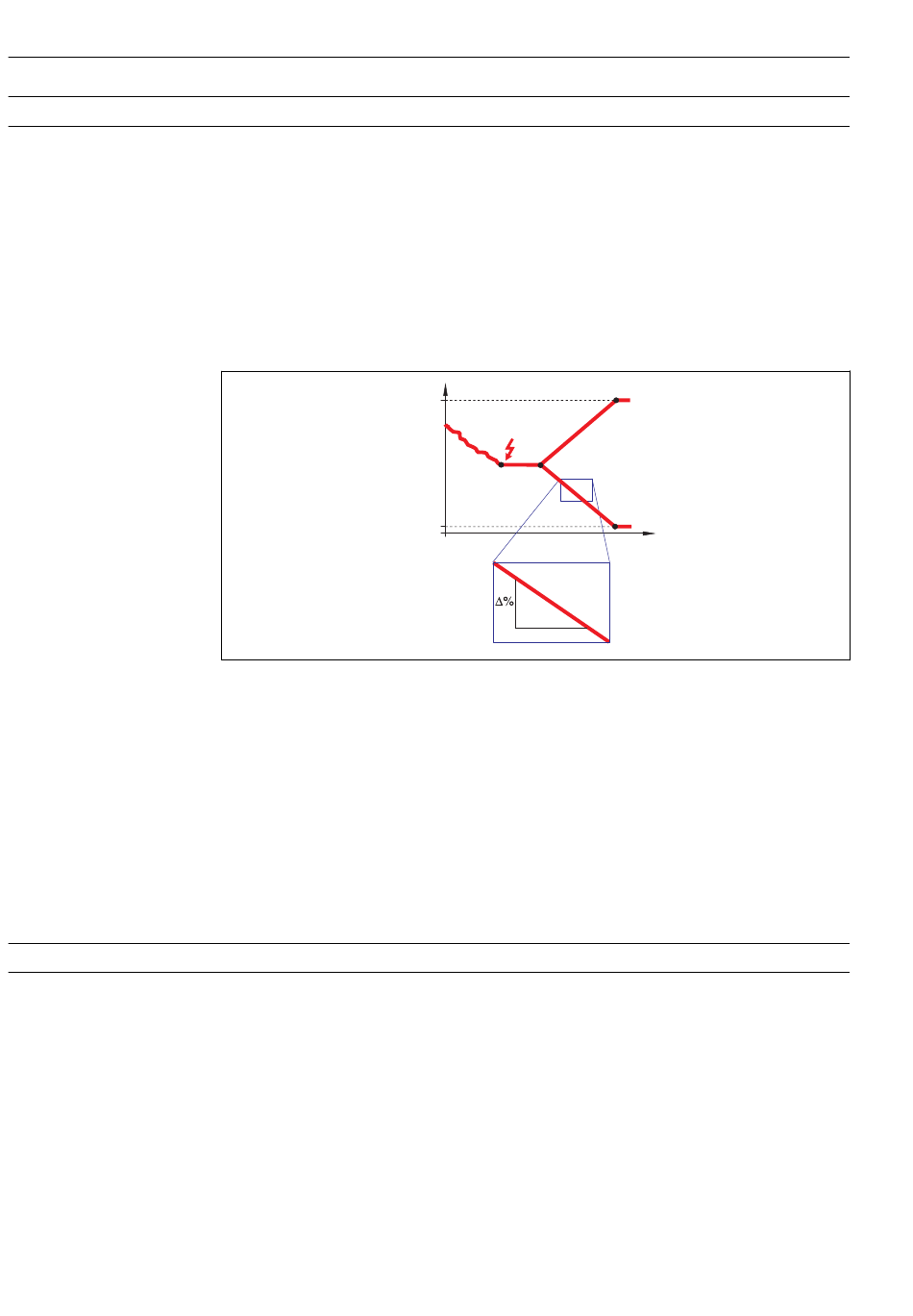

A Delay time echo lost
B Ramp at echo lost (→  156) (positive value)
C Ramp at echo lost (→  156) (negative value)
• The unit for the slope of the ramp is "percentage of the measuring range per minute" (%/
min).
• For a negative slope of the ramp: The measured value is continuously decreased until it
reaches 0%.
• For a positive slope of the ramp: The measured value is continuosly increased until it
reaches 100%.
 Setup → Advanced setup → Safety sett. → Blocking dist.
Specify upper blocking distance UB.
0 to 200 m
For rod and rope probes up to 8 m (26 ft): 200 mm (8 in)
No echos are evaluated within the blocking distance UB. Therefore, UB can be used to
suppress interference echos within the upper end of the probe.
Levelflex FMP53 FOUNDATION Fieldbus
100%
B
A
0%
min
C
t
Endress+Hauser

A0013269

