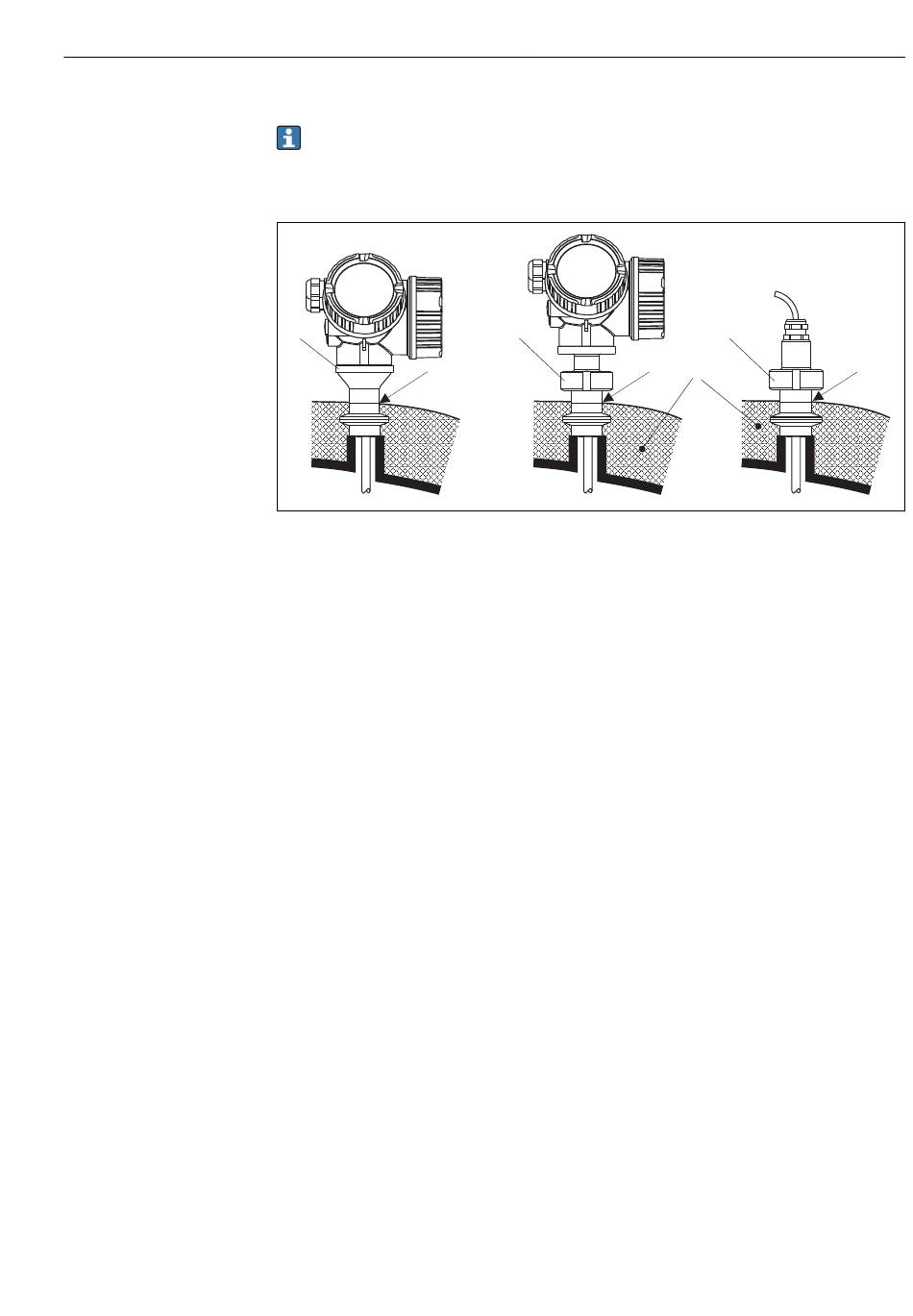

Vessels with heat insulation
If process temperatures are high, the device must be included in normal tank
insulation to prevent the electronics heating up as a result of heat radiation or
convection. The insulation may not exceed beyond the points labeled "MAX" in the
drawings.
2
MAX
 5 Hygienic process connections - FMP53
1 Tank insulation
2 Compact device
3 Compct device, detachable (feature 600)
4 Sensor remote (feature 600)
3
MAX
Mounting
4
1 MAX
