EAS32310

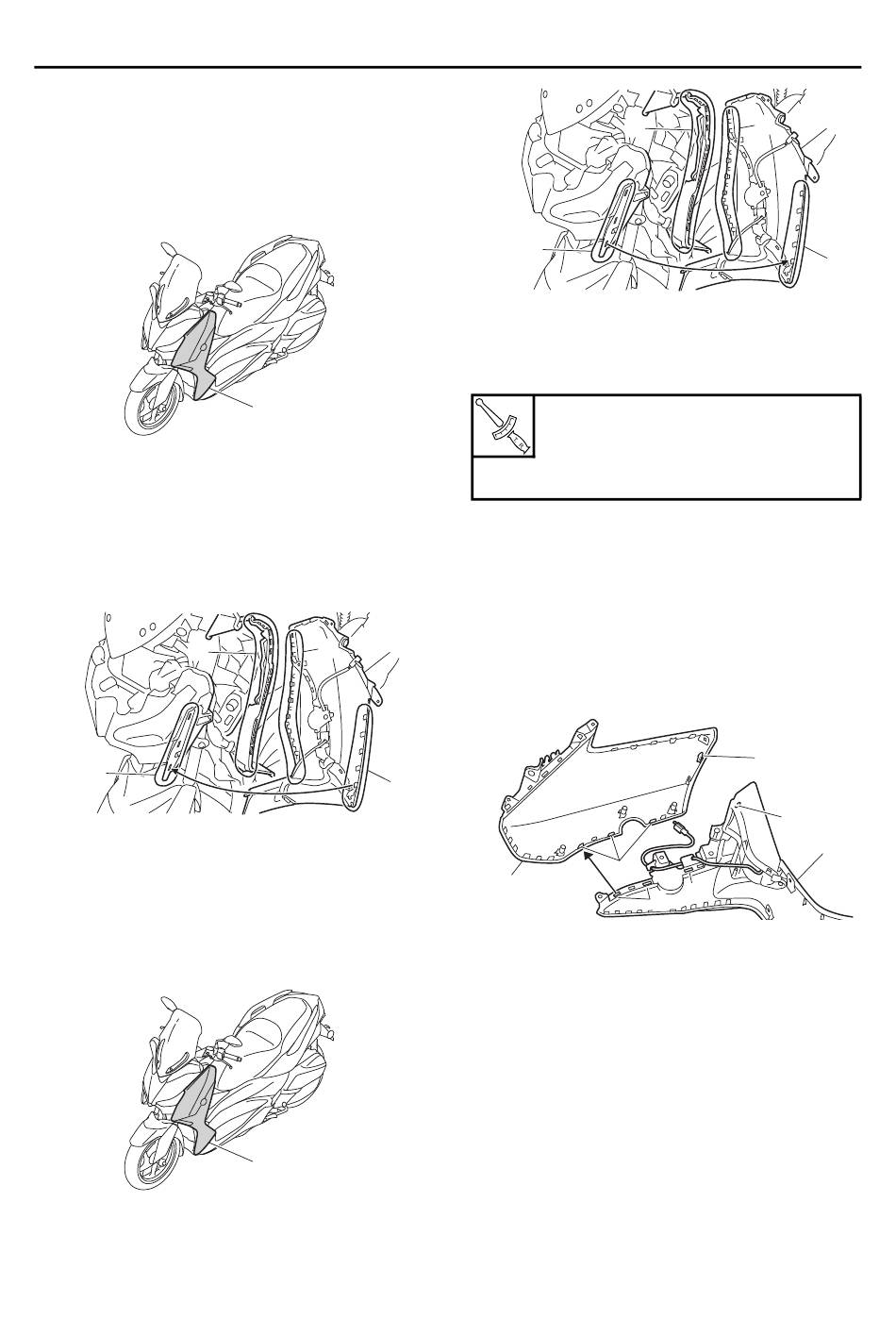

REMOVING THE FRONT COWLING
ASSEMBLIES
The following procedure applies to both of the
front cowling assemblies.
1. Remove:
• Front cowling assembly "1"
a. Remove the front cowling assembly bolt,
screws, and quick fasteners.
b. Pull the front cowling assembly outward to
remove the projections "a" on the front
cowling assembly from the holes "b" in the
leg shield assembly and headlight unit
cover.
b
b
EAS32311
INSTALLING THE FRONT COWLING
ASSEMBLIES
The following procedure applies to both of the
front cowling assemblies.
1. Install:
• Front cowling assembly "1"
a. Fit the projections "a" on the front cowling
assembly into the holes "b" in the leg
shield assembly and headlight unit cover.
1
a
1
a
1
GENERAL CHASSIS (2)
b
b. Install the front cowling assembly bolt,
screws, and quick fasteners, and then
tighten the bolt and screws to specifica-
tion.
Front cowling assembly bolt
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
Front cowling assembly screw
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
EAS32312
DISASSEMBLING THE FRONT COWLING
ASSEMBLIES
The following procedure applies to both of the
front cowling assemblies.
1. Remove the front cowling screws and clamp.
2. Remove the projections "a" on the front upper
cowling "1" from the holes "b" in the front low-
er cowling "2".
1
EAS32313
ASSEMBLING THE FRONT COWLING
ASSEMBLIES
The following procedure applies to both of the
front cowling assemblies.
4-5
a
b
a
b
a
b
b
1
a
2
