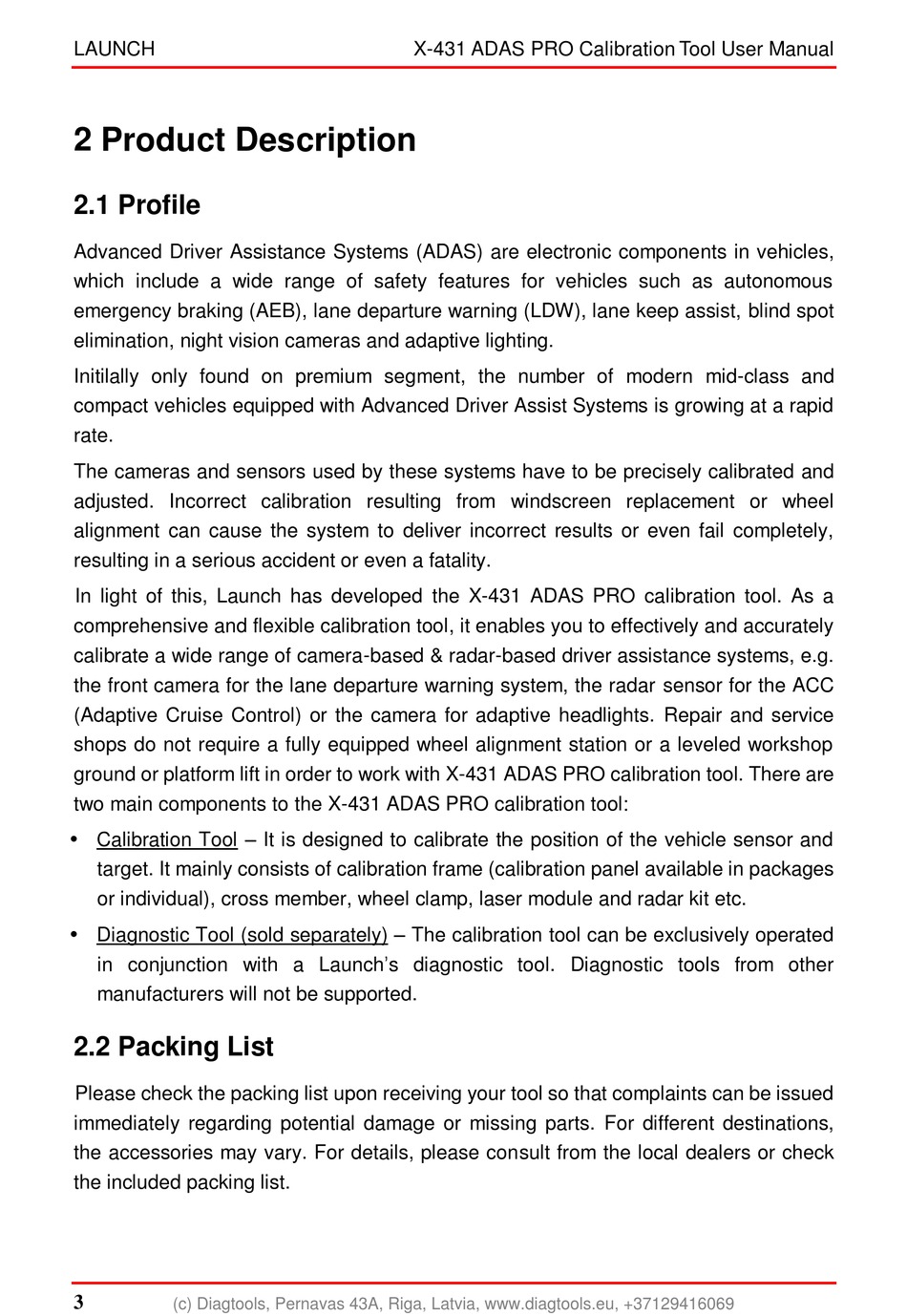

2 Product Description
2.1 Profile
Advanced Driver Assistance Systems (ADAS) are electronic components in vehicles,
which include a wide range of safety features for vehicles such as autonomous
emergency braking (AEB), lane departure warning (LDW), lane keep assist, blind spot
elimination, night vision cameras and adaptive lighting.
Initilally only found on premium segment, the number of modern mid-class and
compact vehicles equipped with Advanced Driver Assist Systems is growing at a rapid
rate.
The cameras and sensors used by these systems have to be precisely calibrated and
adjusted. Incorrect calibration resulting from windscreen replacement or wheel
alignment can cause the system to deliver incorrect results or even fail completely,
resulting in a serious accident or even a fatality.
In light of this, Launch has developed the X-431 ADAS PRO calibration tool. As a
comprehensive and flexible calibration tool, it enables you to effectively and accurately
calibrate a wide range of camera-based & radar-based driver assistance systems, e.g.
the front camera for the lane departure warning system, the radar sensor for the ACC
(Adaptive Cruise Control) or the camera for adaptive headlights. Repair and service
shops do not require a fully equipped wheel alignment station or a leveled workshop
ground or platform lift in order to work with X-431 ADAS PRO calibration tool. There are
two main components to the X-431 ADAS PRO calibration tool:
Calibration Tool – It is designed to calibrate the position of the vehicle sensor and
target. It mainly consists of calibration frame (calibration panel available in packages
or individual), cross member, wheel clamp, laser module and radar kit etc.
Diagnostic Tool (sold separately) – The calibration tool can be exclusively operated
in conjunction with a Launch's diagnostic tool. Diagnostic tools from other
manufacturers will not be supported.
2.2 Packing List
Please check the packing list upon receiving your tool so that complaints can be issued
immediately regarding potential damage or missing parts. For different destinations,
the accessories may vary. For details, please consult from the local dealers or check
the included packing list.
