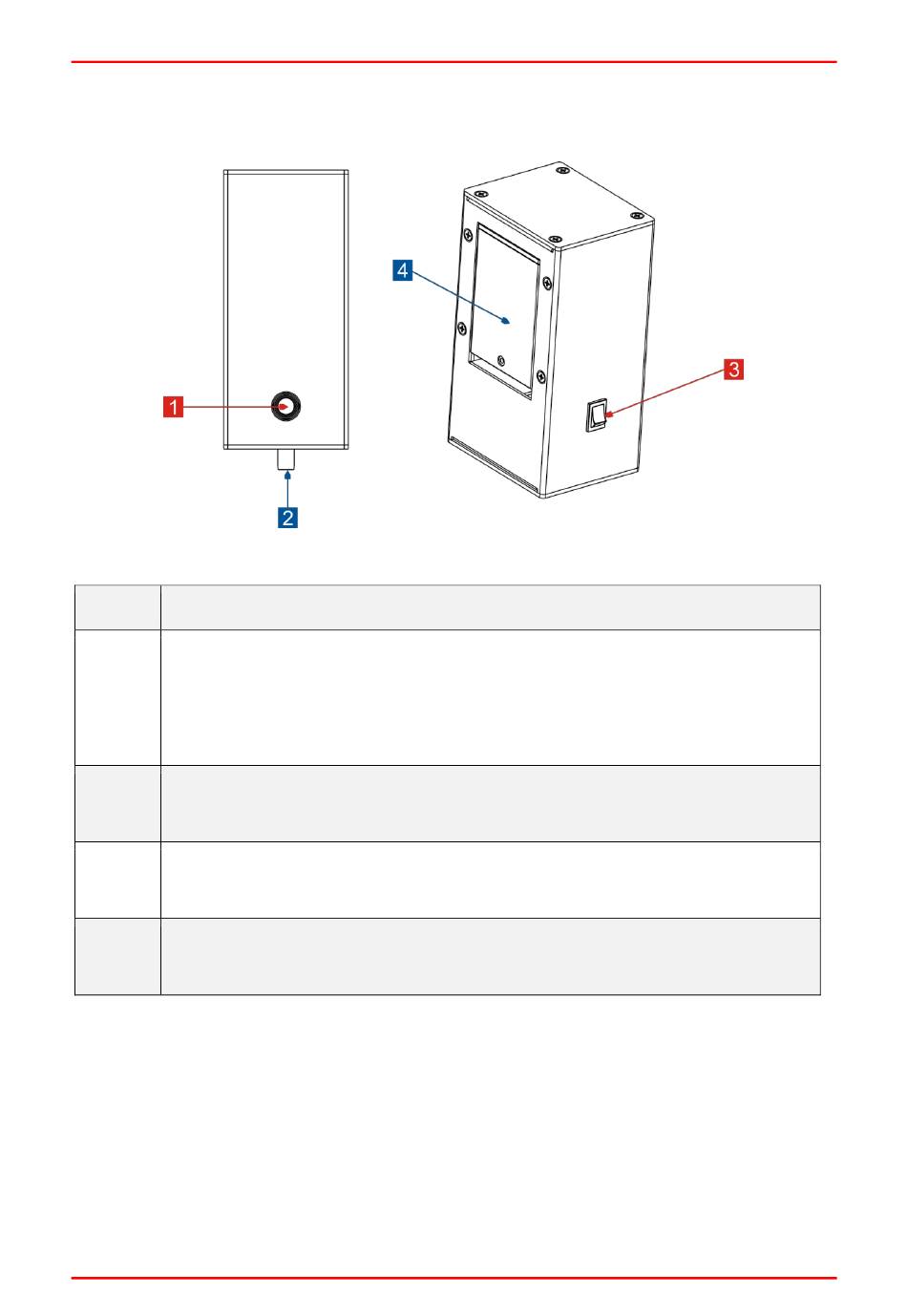

3.5 Laser Module

No.
Output of the laser beam
Output for laser beam.
1
Use the laser beam to read the actual value at the scales of the cross
member and at wheel clamp.
Mounting bolt
2
Use this to secure the laser module on the cross member.
Switch
3
Switch the laser on and off.
Battery compartment cover
4
3 type AA batteries can be inserted into the battery compartment.

3.5.1 Installing the batteries

Proceed as follows to replace the batteries:
1. Switch off the laser beam (1) with the switch (3).
2. Loosen the screw of the battery compartment cover (4), and then push it along the
indicator to remove it.
13
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual
Fig. 3-5
