prompt message in Fig. 5-3, choose the corresponding calibration reference pattern
and attach it to the calibration panel (Refer to Chapter 4.1.5).
B. To adjust the distance between the calibration panel and the vehicle: follow the
instructions on the screen to proceed, if necessary, use the laser range finder
(included in the packing list) to measure from the vehicle to the calibration panel.
C. To set up the height of the calibration frame: Place the laser range finder in
position and keep the screen facing down. Use the Rocker switch on the beam lifter
to move the calibration panel up to the height indicated in the diagnostic tool (Fig.
5-3).
5. Use the adjusting screws of the base support to adjust so that the horizontal and the
vertical level gauge of the calibration frame are centred respectively.
Now the calibration panel is placed correctly in front of the vehicle.
5.2.1.2 Placing the ADAS calibration panel centred in front of the vehicle

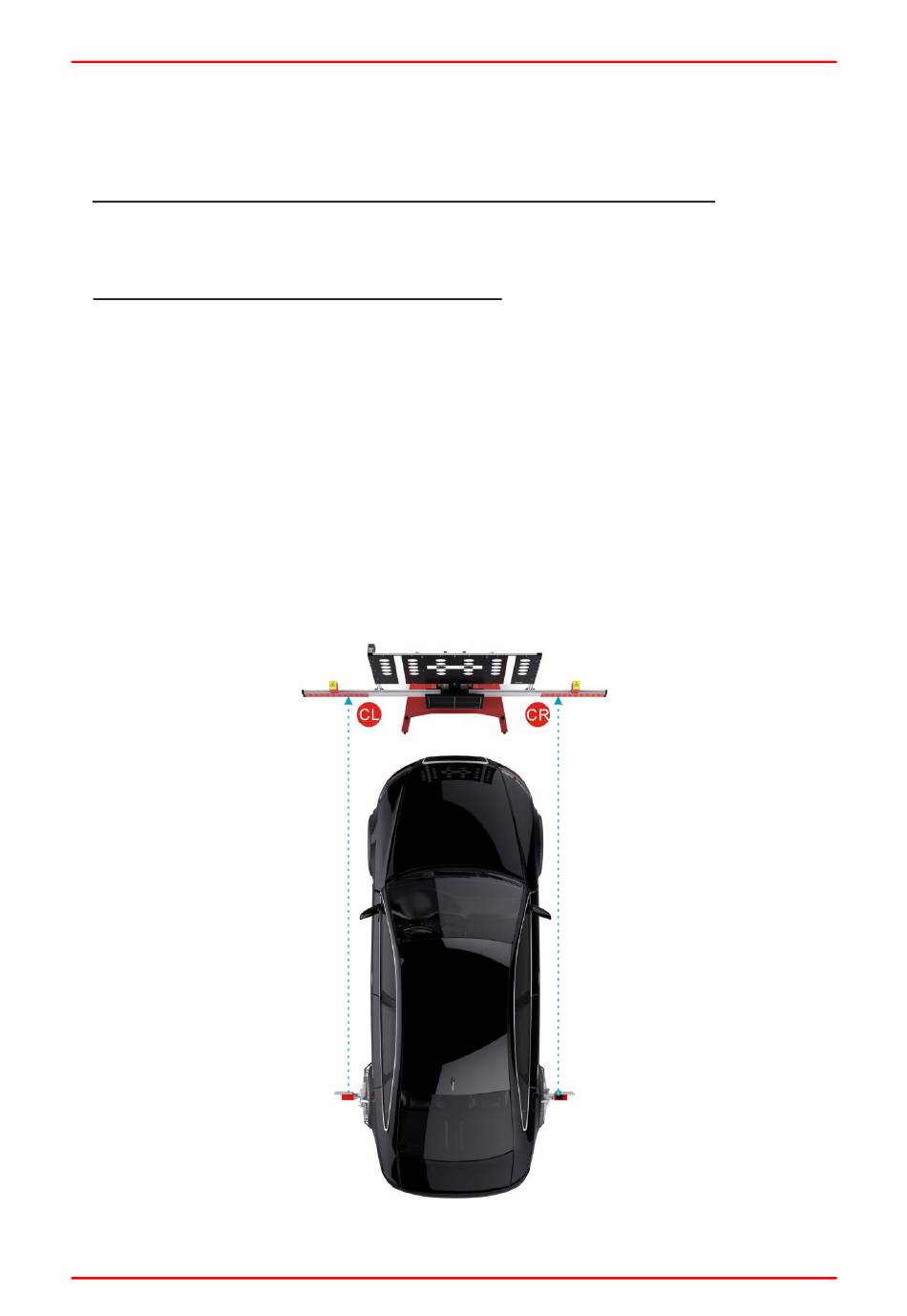

In this step, we just need to make sure that the left (CL) and right (CR) scale of the
cross member projected from the wheel clamp laser show the same values.
