4.1.2 Installing the cross member & calibration frame

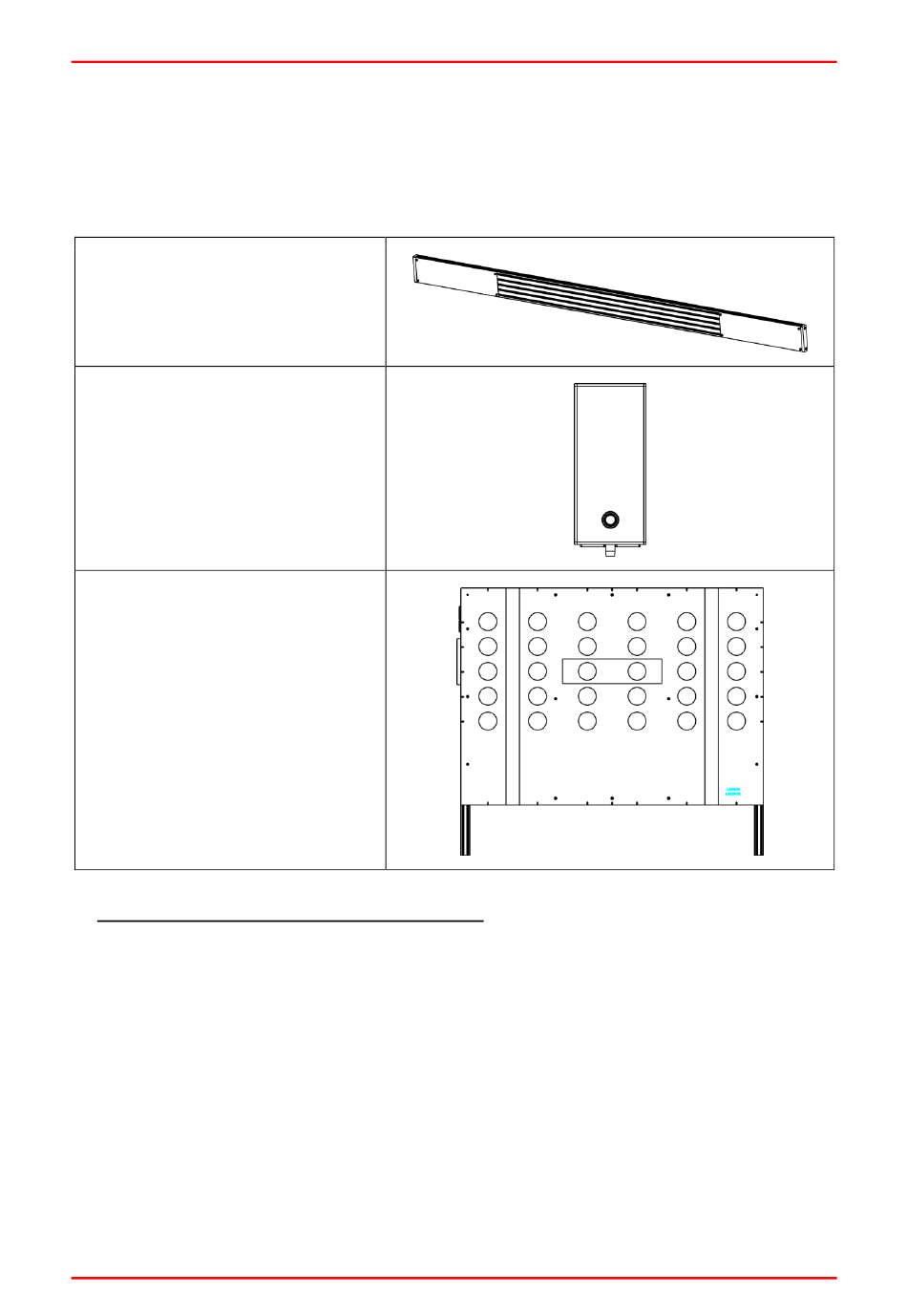

While installing the cross member and calibration frame, please prepare the following
items:
Cross member
Laser modules (x 2)
Calibration frame
1. Secure the cross member on the beam lifter: There are two scales (the distance
between them indicates the width of cross-linking bracket 2) marked on the
cross-member and next to them are 4 floating screws pre-installed in the sliding rail
1 & 4 respectively. See Fig. 4-2.
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual
22
