Proceed as follows to place the ADAS calibration panel in parallel with the vehicle:
1. Switch on the laser beam of the laser module with the switch.
2. Align the laser beam of the laser module on the cross member with the scale of the
wheel clamp. The laser beam will be projected onto the scale of the wheel clamp.
3. Perform step 1-2 with the second laser beam.
4. By axially turning the calibration frame, place the frame in a way that the left
and right scale of the wheel clamp reflected from the laser modules on the
cross member show the same values.
39
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual

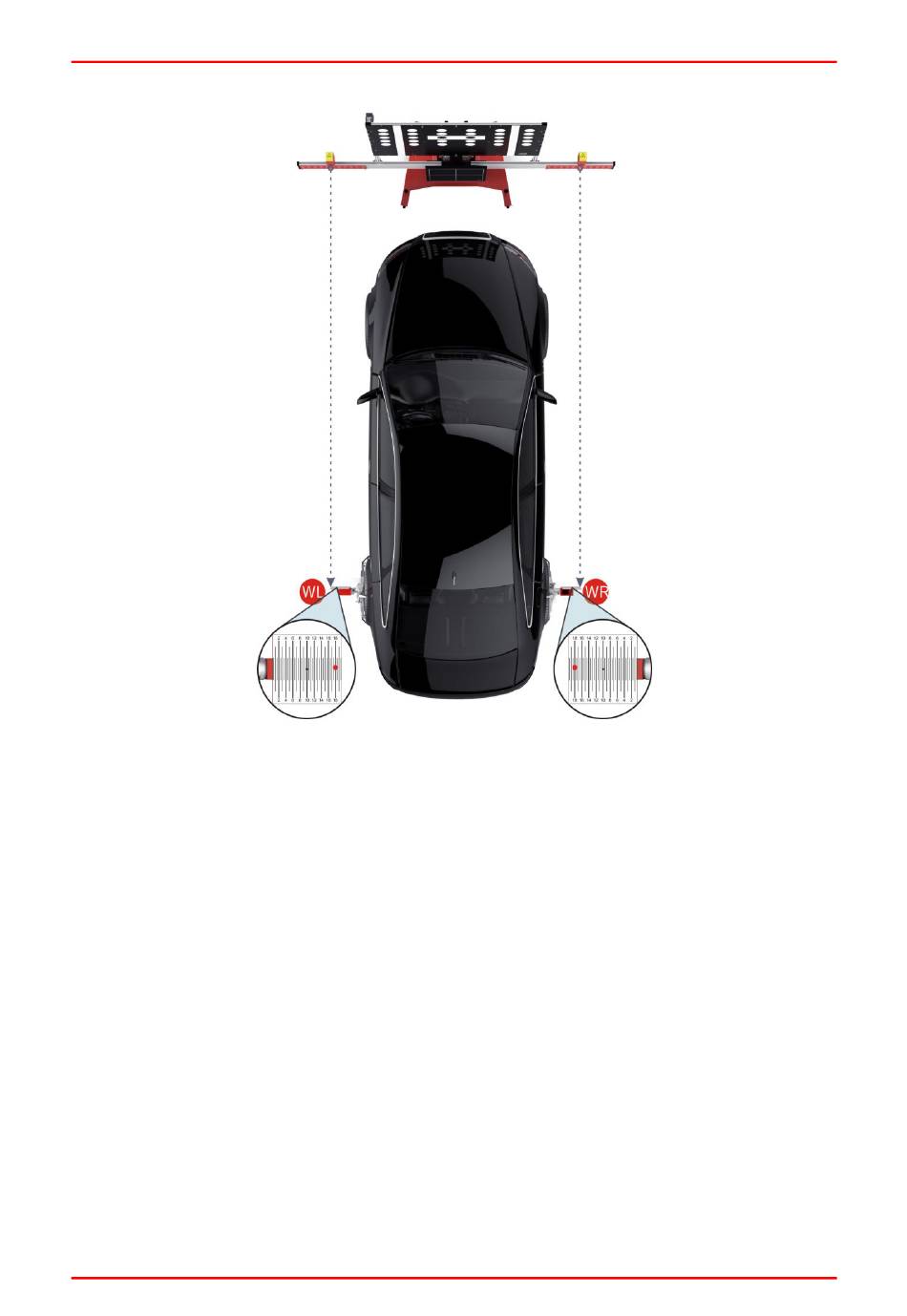

Fig. 5-7
