3.7 Radar Kit

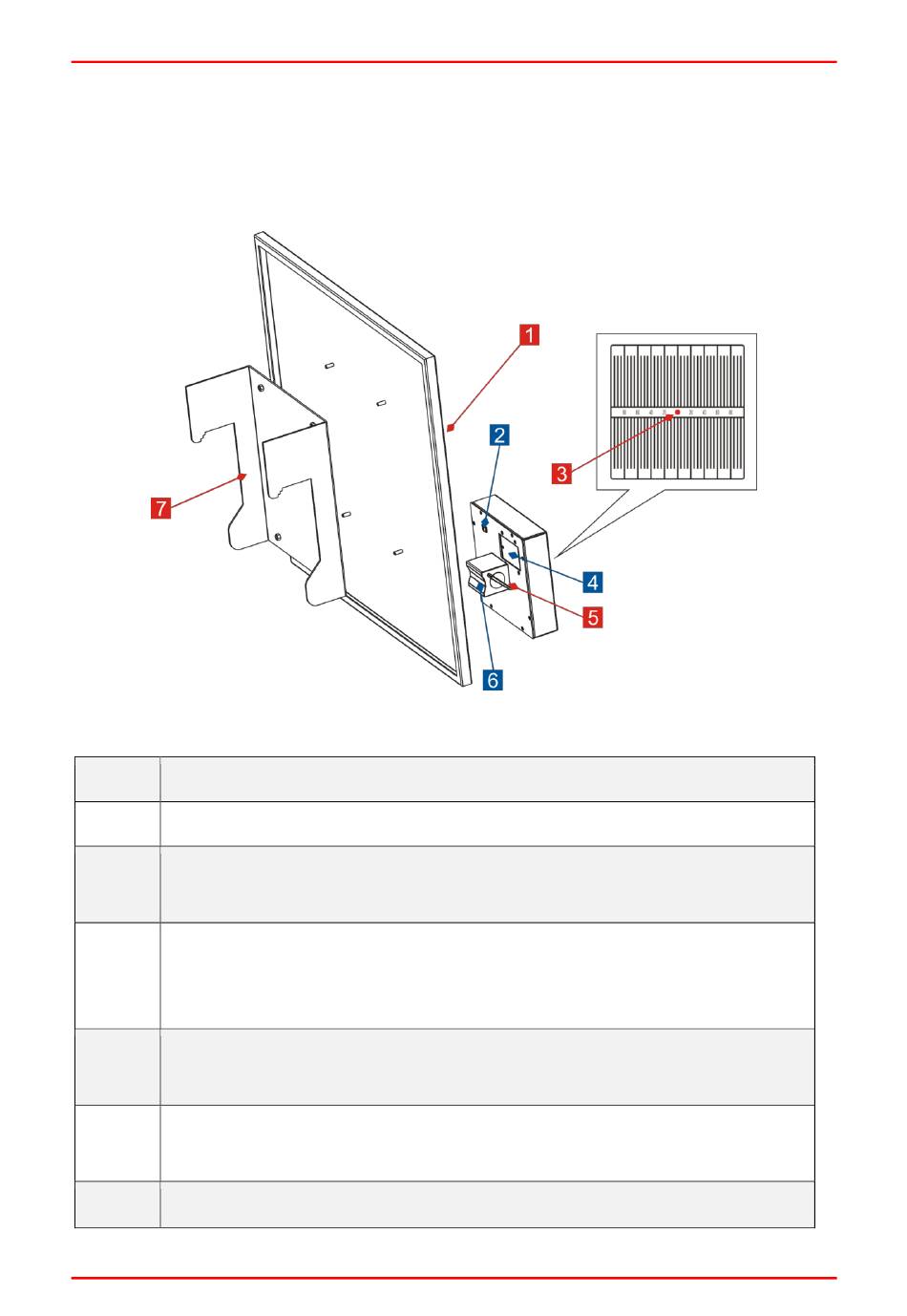

There are three main components to the radar kit: radar reflector, magnetic laser and
attachment bracket.
No.
Radar Reflector
1
Switch
2
Switch the laser on and off.
Output of laser beam
3*
Use the laser beam to read the actual value at the scale of the magnetic
laser.
Battery Compartment Cover
4*
Insert three AA batteries here.
Tuning Lever (Magnet base)
5*
Switch the electromagnet on and off.
Electromagnet
6*
