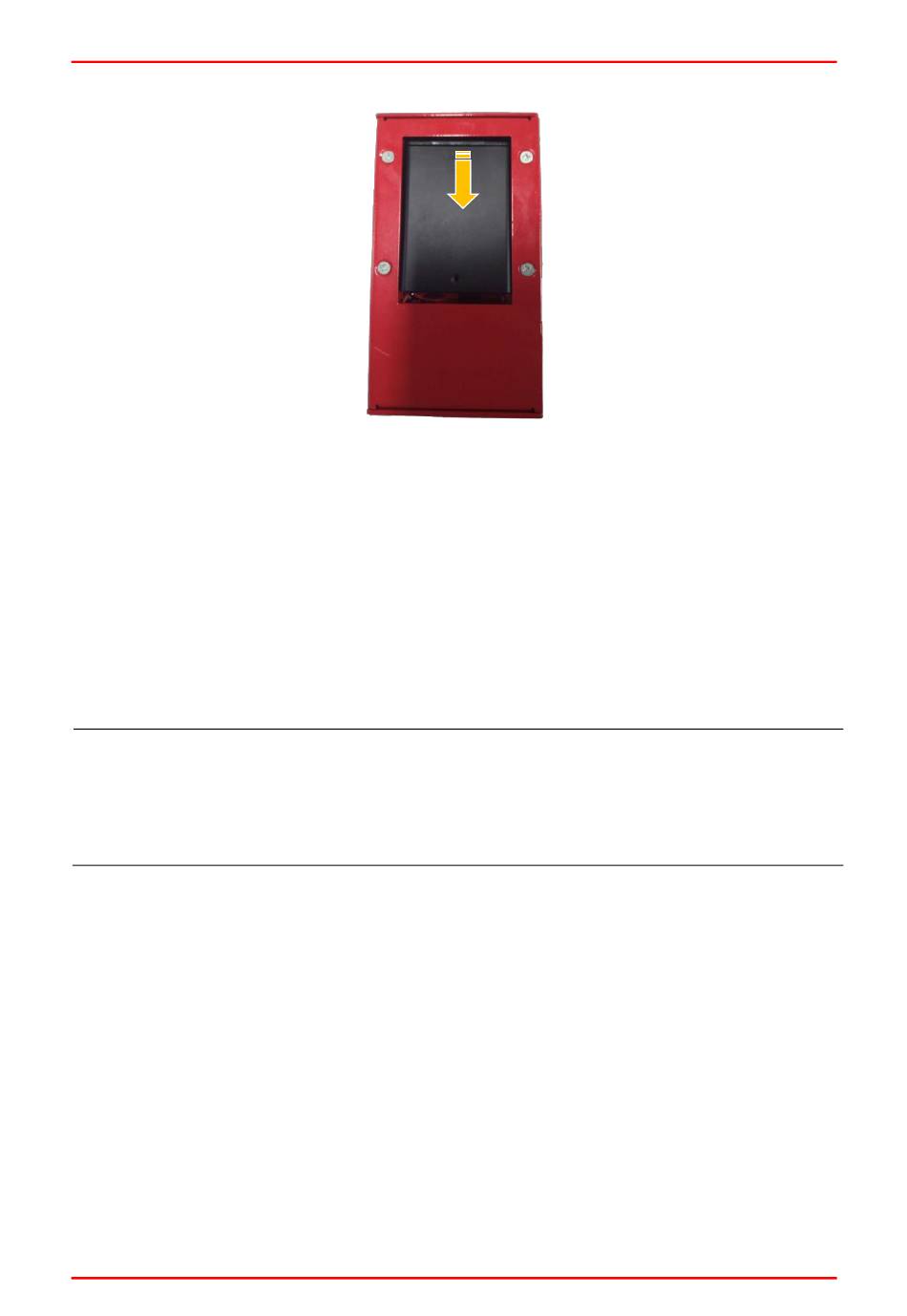

3. Follow the correct installation direction/battery polarities to install the new batteries.
4. Restore the battery compartment cover and use the screw to fasten it.

3.5.2 Adjusting the laser beam spot size

Proceed as follows to to adjust the the radius of laser beam:
1. Switch on the laser beam (1) with the switch (3).
2. Use the straight screwdriver (not included) to adjust the laser beam radius as
desired.
*Caution: Laser radiation may cause damage to/destruction of the retina. Never look directly
into the laser beam.
*Note: To avoid the intuitive distinction, you are suggested to keep the beam radius of the
laser modules as same as possible.

3.6 3 Points Wheel Alignment Clamp

Total 2 wheel clamps (left & right) are available for the wheel clamp. While attaching it
onto the vehicle's tyre, please pay attention to the installation direction.
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual
Fig. 3-6
14
