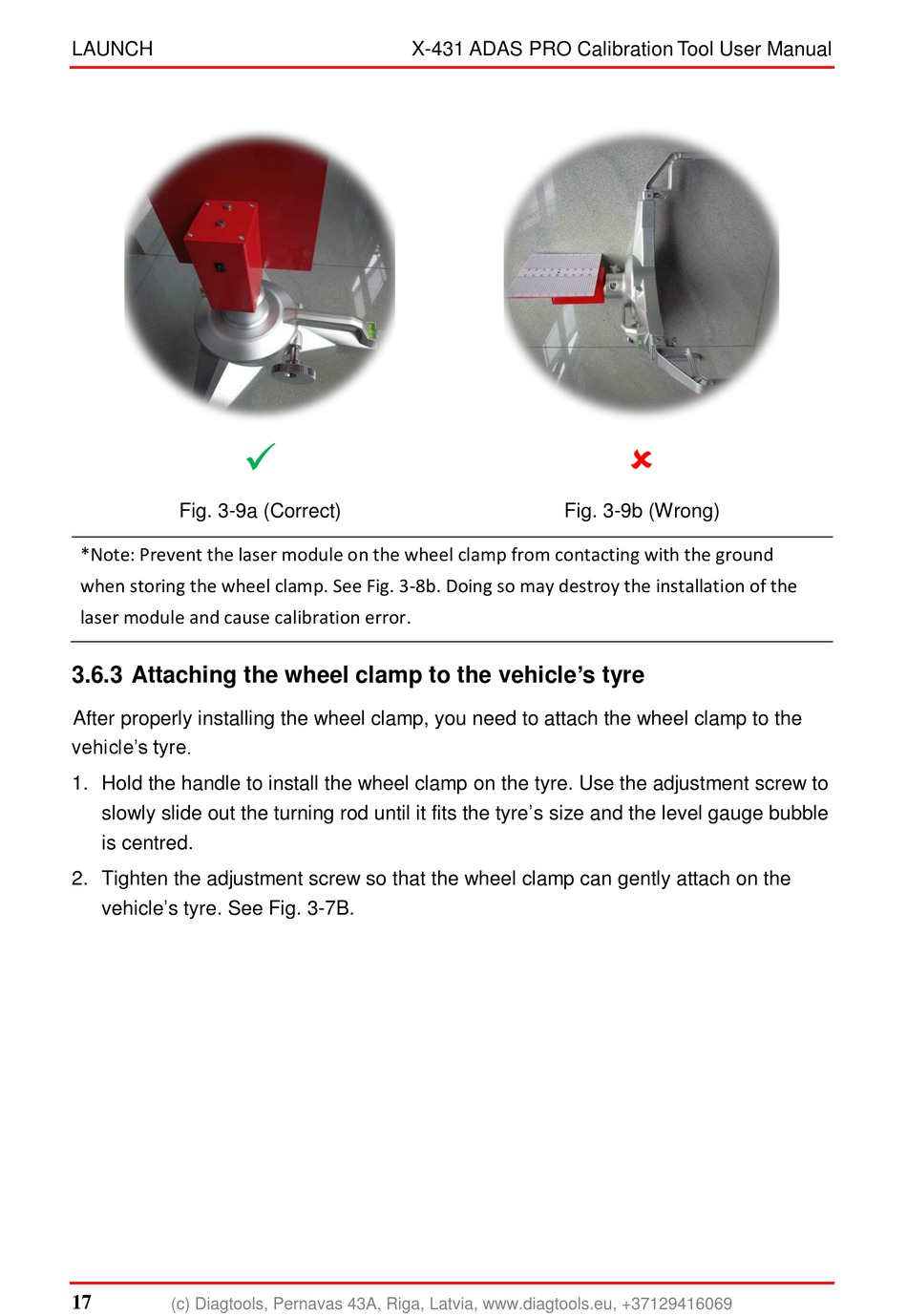

Fig. 3-9a (Correct)
*Note: Prevent the laser module on the wheel clamp from contacting with the ground
when storing the wheel clamp. See Fig. 3-8b. Doing so may destroy the installation of the
laser module and cause calibration error.

3.6.3 Attaching the wheel clamp to the vehicle's tyre

After properly installing the wheel clamp, you need to attach the wheel clamp to the
vehicle's tyre.
1. Hold the handle to install the wheel clamp on the tyre. Use the adjustment screw to
slowly slide out the turning rod until it fits the tyre's size and the level gauge bubble
is centred.
2. Tighten the adjustment screw so that the wheel clamp can gently attach on the
vehicle's tyre. See Fig. 3-7B.
17
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual
Fig. 3-9b (Wrong)

