LAUNCH
No.
Attachment brackets for vehicle tyre
1
Attach it to the vehicle's tyre.
2
Handle
Adjustment screw
3
Turning it can slide all attachment brackets (1) in (out) simultaneously.
Set screw
4
To fasten/loosen the laser module.
Cable pull switch
5
Use the finger to pull it, the attachment bracket (1) can be adjusted to
different position or detached from the wheel clamp.
6
Mounting slot for laser module
15
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual

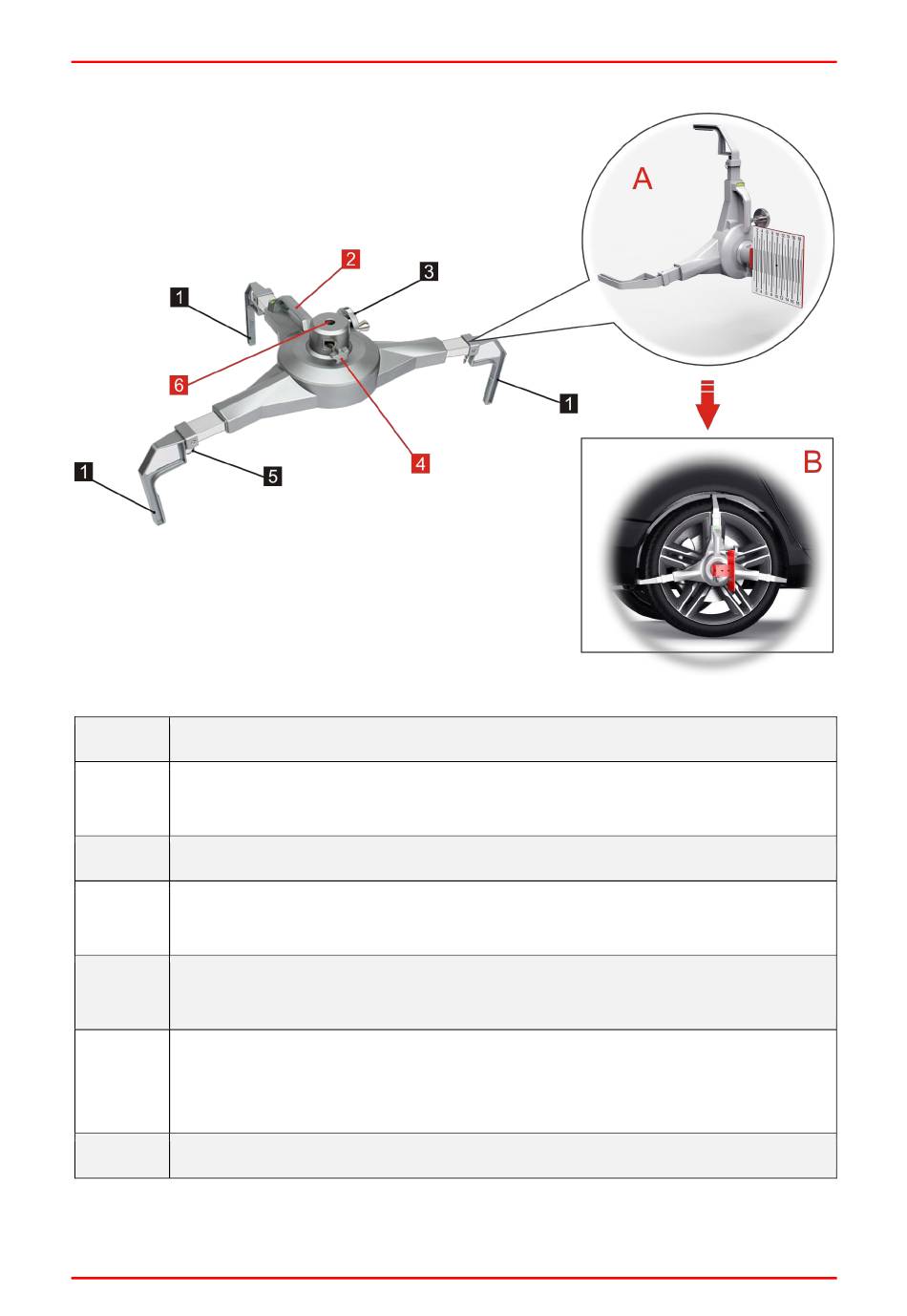

Fig. 3-7
