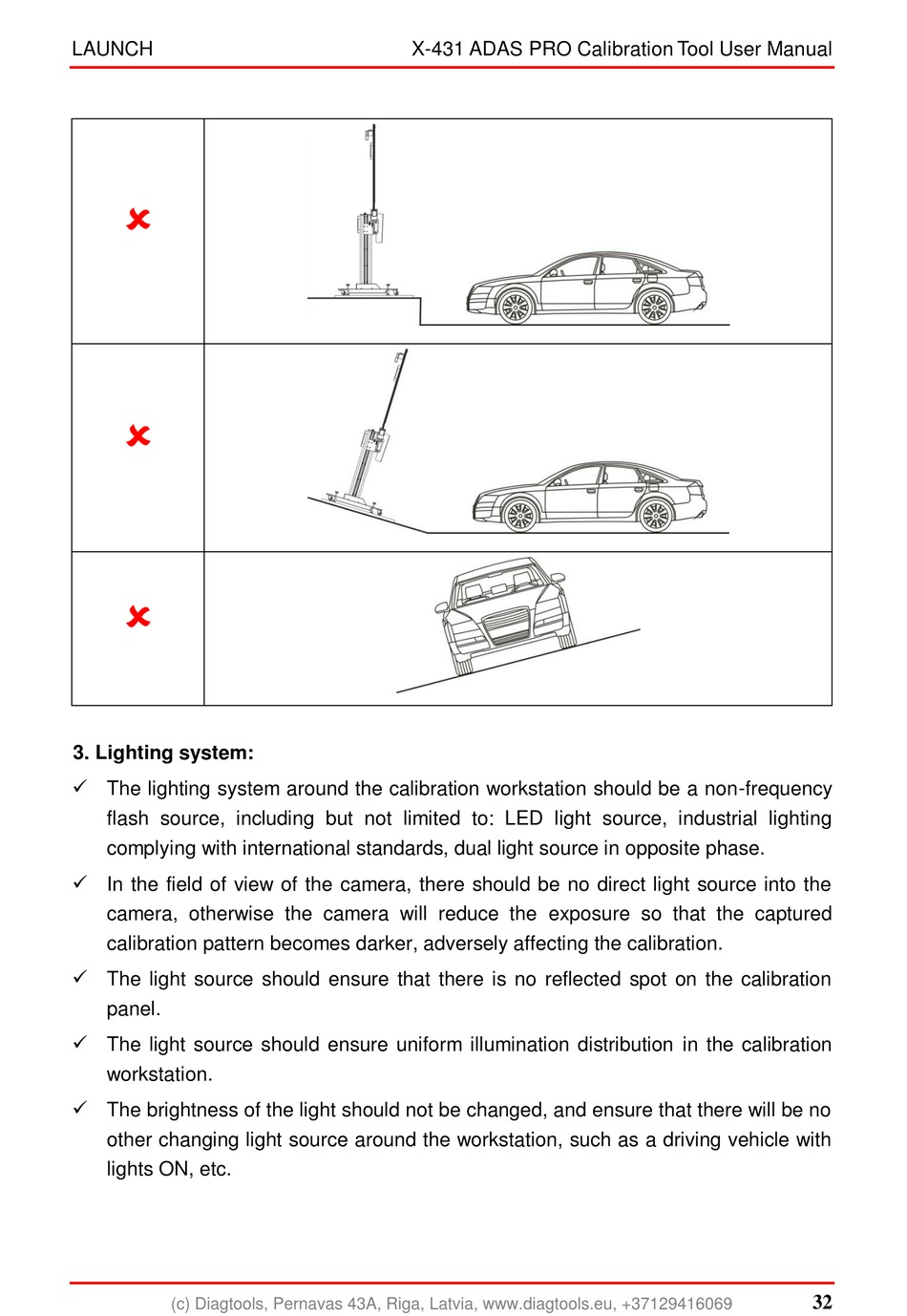

3. Lighting system:
 The lighting system around the calibration workstation should be a non-frequency
flash source, including but not limited to: LED light source, industrial lighting
complying with international standards, dual light source in opposite phase.
 In the field of view of the camera, there should be no direct light source into the
camera, otherwise the camera will reduce the exposure so that the captured
calibration pattern becomes darker, adversely affecting the calibration.
 The light source should ensure that there is no reflected spot on the calibration
panel.
 The light source should ensure uniform illumination distribution in the calibration
workstation.
 The brightness of the light should not be changed, and ensure that there will be no
other changing light source around the workstation, such as a driving vehicle with
lights ON, etc.
