3.6.1 Installing the attachment bracket on the wheel clamp

1. Take out the attachment brackets from the package box.
2. Follow the instructions in Fig. 3-8 to insert the attachment brackets into the wheel
clamp respectively, ensuring the left and right attachment brackets are installed into
the same depth.
*Note: To insert the attachment brackets to the bottom of the slot, just pull the cable pull
switch and then push it until it reaches to the bottom.
3. After properly installing, hold the handle of the wheel clamp and store it, making
sure that the attachment brackets firmly sit on the ground.

3.6.2 Installing the laser module on the wheel clamp

If the laser module is ON, the actual value can be projected onto the scale of the cross
member with the help of the laser beam.
*Note: This laser module features the same functions as that installed on the cross
member. It is integrated with the scale of the wheel clamp.
1. Loosen the set screw (4).
2. Align one end of the exclusive laser module with the mounting slot of the wheel
clamp, and then insert it into the mounting slot, making sure that the battery
compartment cover side facing down. See Fig. 3-7A.
3. Use the set screw (4) to tighten it and follow Fig. 3-9a to lay it aside.
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual

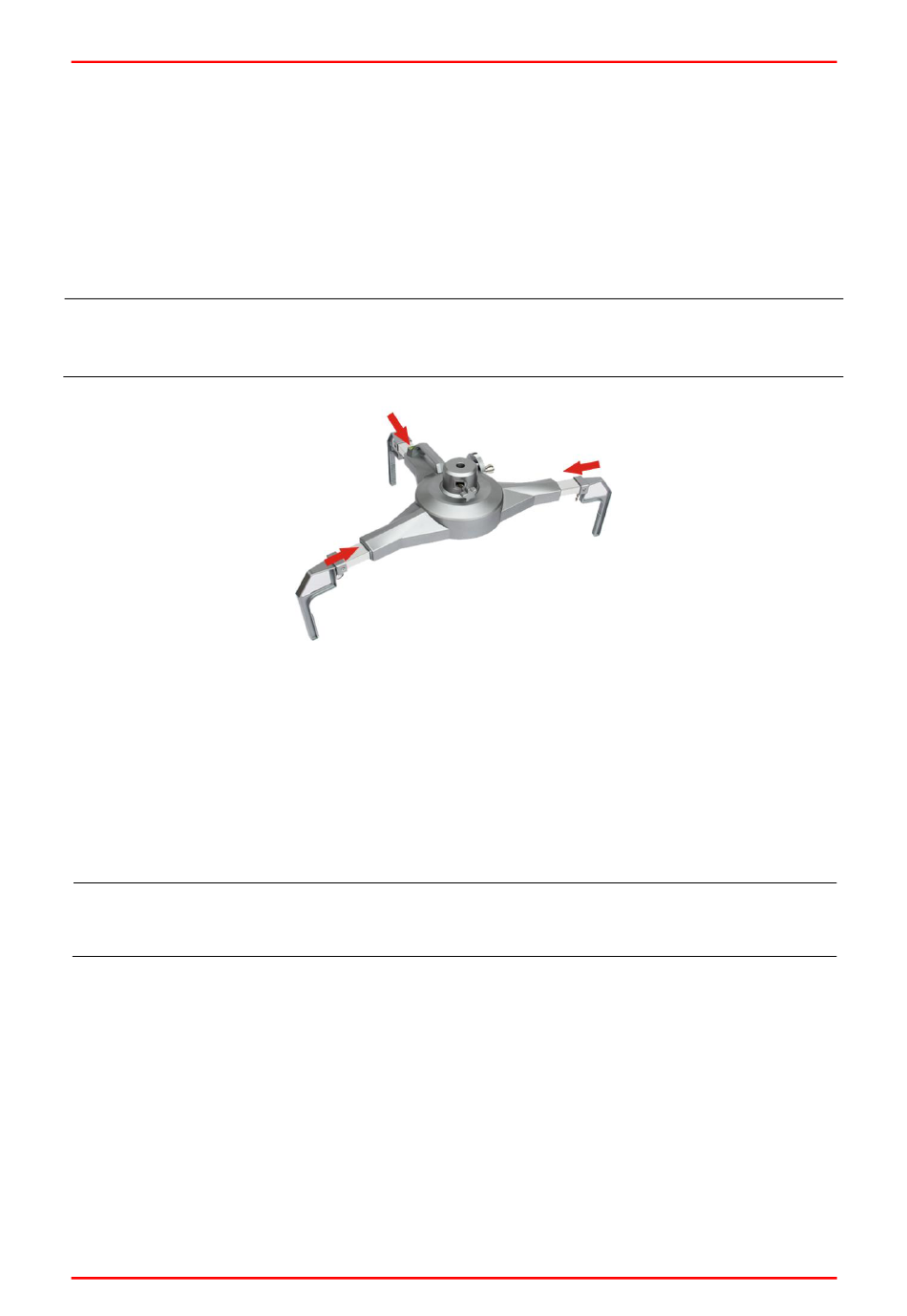

Fig. 3-8
