Now the calibration panel is placed in parallel with the vehicle.

5.2.2 Calibrating the rear camera

5.2.2.1 Placing the ADAS calibration panel behind the Vehicle
Proceed as follows to place the ADAS calibration panel behind the vehicle:
1. Connect the diagnostic tool to the vehicle.
2. Launch the diagnostic/ADAS App.
3. Follow the on-screen instructions to select the identified vehicle model and the
system to be calibrated, e.g. MFK.
4. A window with information and instructions appears.
A. Attach the calibration reference pattern to the calibration frame: According to the
prompt message, choose the corresponding calibration reference pattern and attach
it to the calibration panel (Refer to Chapter 4.1.5).
B. To adjust the distance between the calibration panel and the vehicle: follow the
instructions on the screen to proceed, if necessary, use the laser range finder
(included in the packing list) to measure from the vehicle to the calibration panel.
C. To set up the height of the calibration frame: Place the laser range finder in
position and keep the screen facing down. Use the Rocker switch on the beam lifter
to move the calibration panel up to the height indicated in the diagnostic tool (Fig.
5-3).
5. Use the adjusting screws of the base support to adjust so that the horizontal and the
vertical level gauge of the calibration frame are centred respectively.Now the
calibration panel is placed correctly in rear of the vehicle.
5.2.2.2 Placing the ADAS calibration panel centred in rear of the Vehicle
Proceed as follows to place the ADAS calibration panel centred behind the vehicle:
(c) Diagtools, Pernavas 43A, Riga, Latvia, www.diagtools.eu, +37129416069
X-431 ADAS PRO Calibration Tool User Manual

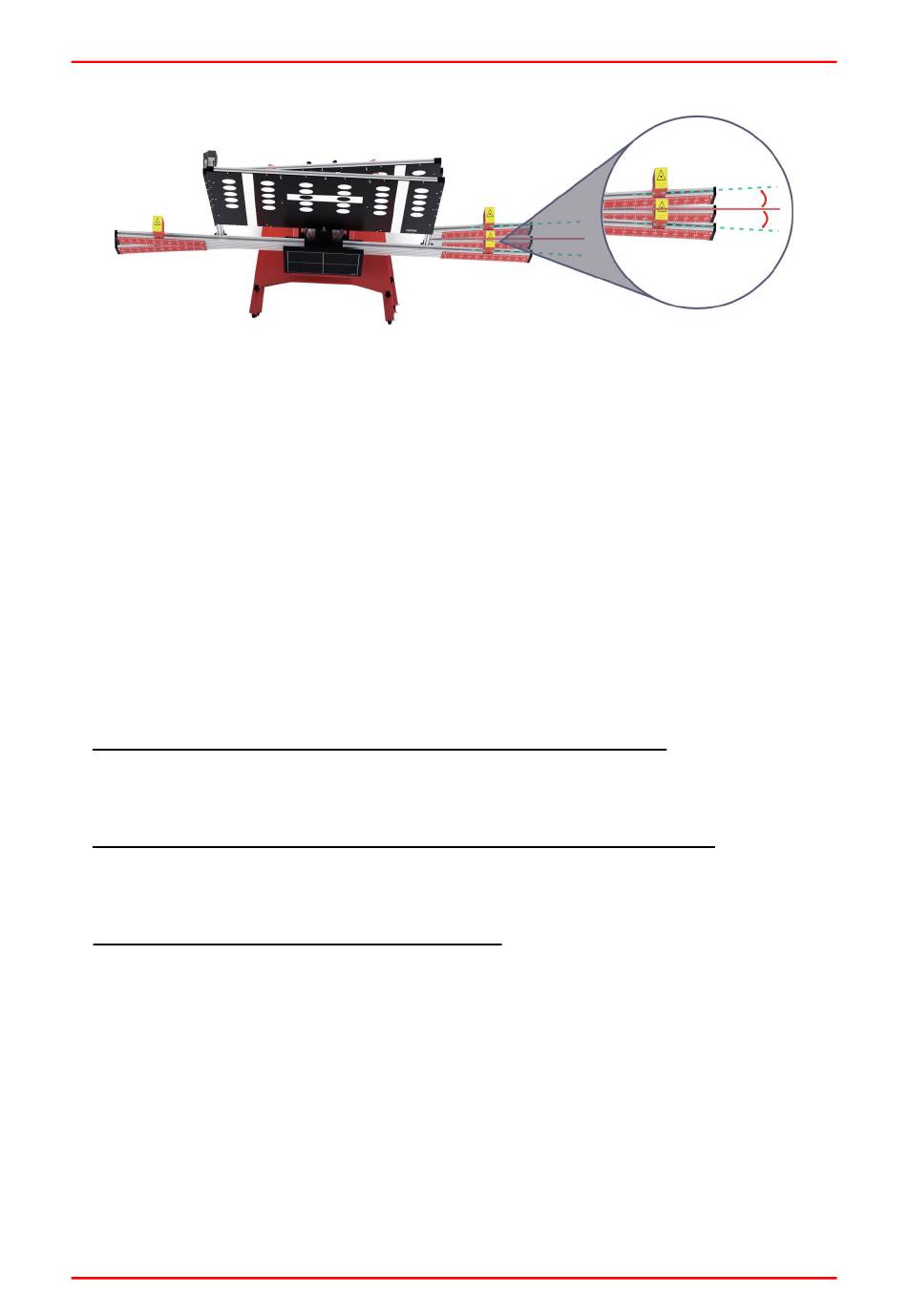

Fig. 5-8
