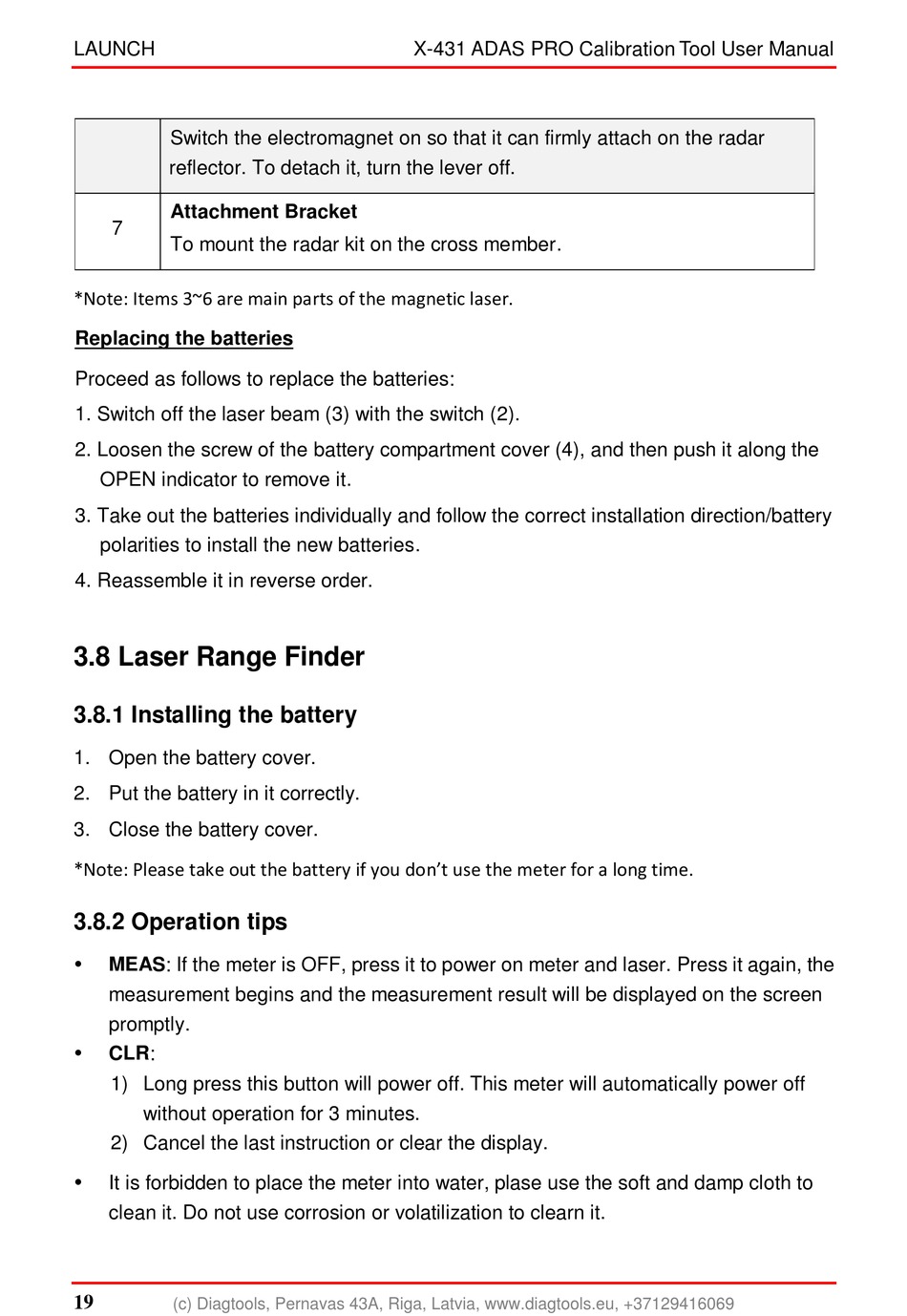

Switch the electromagnet on so that it can firmly attach on the radar
reflector. To detach it, turn the lever off.
Attachment Bracket
7
To mount the radar kit on the cross member.
*Note: Items 3~6 are main parts of the magnetic laser.
Replacing the batteries
Proceed as follows to replace the batteries:
1. Switch off the laser beam (3) with the switch (2).
2. Loosen the screw of the battery compartment cover (4), and then push it along the
OPEN indicator to remove it.
3. Take out the batteries individually and follow the correct installation direction/battery
polarities to install the new batteries.
4. Reassemble it in reverse order.

3.8 Laser Range Finder

3.8.1 Installing the battery

1. Open the battery cover.
2. Put the battery in it correctly.
3. Close the battery cover.
*Note: Please take out the battery if you don't use the meter for a long time.

3.8.2 Operation tips


MEAS: If the meter is OFF, press it to power on meter and laser. Press it again, the
measurement begins and the measurement result will be displayed on the screen
promptly.

CLR:
1) Long press this button will power off. This meter will automatically power off
without operation for 3 minutes.
2) Cancel the last instruction or clear the display.

It is forbidden to place the meter into water, plase use the soft and damp cloth to
clean it. Do not use corrosion or volatilization to clearn it.
