Installation Sheet
Support
For support and technical assistance, please contact INFICON, 2 Technology Place, East Syracuse, NY 13057-9714.

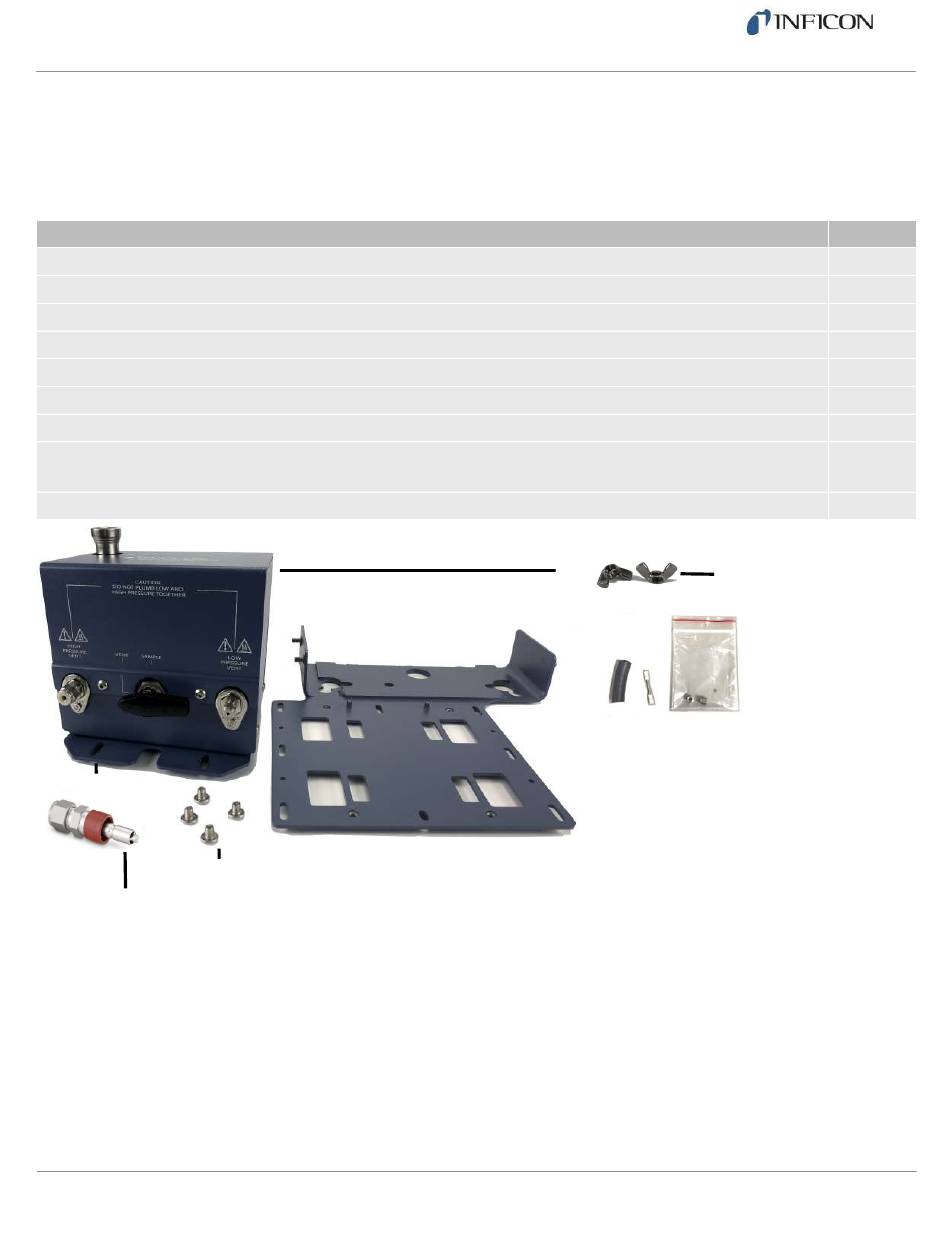

External Sample Conditioner Accessory Kit
Description
External sample conditioner assembly
Slide plate
1/4 in. male quick connect (PN 059-0808S)
Screws
Bottom mounting bracket
Top mounting bracket (not shown)
Wing nuts (PN 144-374S)
Transfer line kit, includes 1/16 in. sample transfer tubing with rubber insulation sleeve and 1/16 in. nut and ferrules (PN
952-018-G1S)
Power supply (not shown, PN 033-0074S)
Slide plate
Screws
1/4 in. male quick connect
List of Required Tools
The following tools are user supplied:
• one 7/16 in. open-ended wrench for 1/8 in. connections
• one 5/16 in. open-ended wrench for 1/16 in. connections
• 2.5 mm hex driver
• 3.0 mm hex driver
• 1 in. open-ended wrench for filter replacement
3 / 19
External sample conditioner assembly
Bottom mounting bracket
(top mounting bracket not shown)
Wing nuts
Transfer line kit -1/16 in. sample transfer
tubing with rubber insulation sleeve
and 1/16 in. nut and ferrules
074-732-P1A Micro GC Fusion External Sample
Conditioner Installation Sheet
Quantity
1
1
1
4
1
1
4
1
1
