Installation Sheet

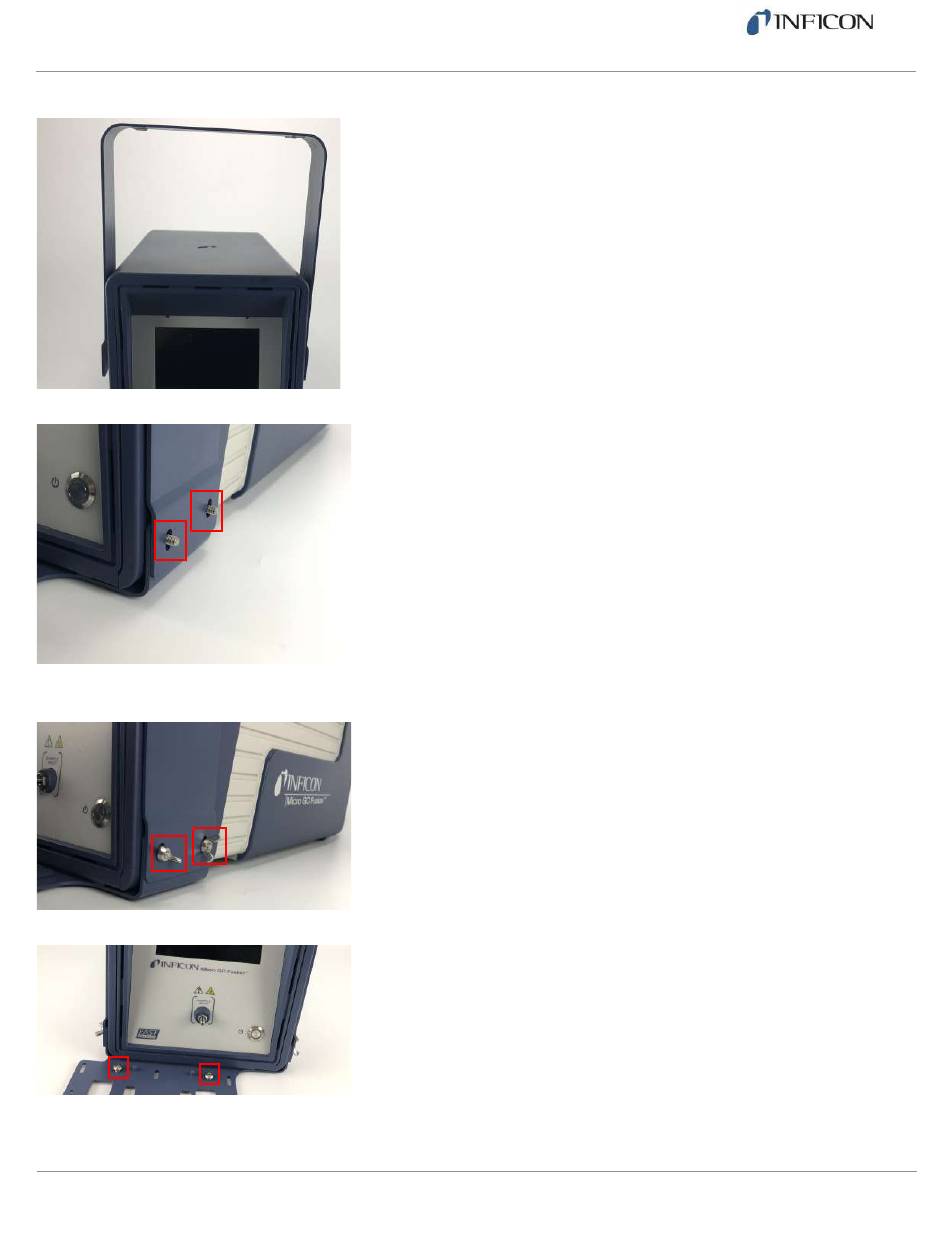

Slide the top bracket over Micro GC Fusion and the threads from the bottom bracket.

Align the screws on both sides of the chassis.

Place the wing nuts on the bottom bracket threads and hand-tighten. Ensure that the top bracket is pressed downward and is tightly

secured to Micro GC Fusion.

Using a 3 mm hex driver, slightly thread the M4 screws into the holes on the bottom bracket, near the chassis of Micro GC Fusion.

5 / 19

074-732-P1A Micro GC Fusion External Sample

Conditioner Installation Sheet
