Summary of Contents for Inficon SL3000

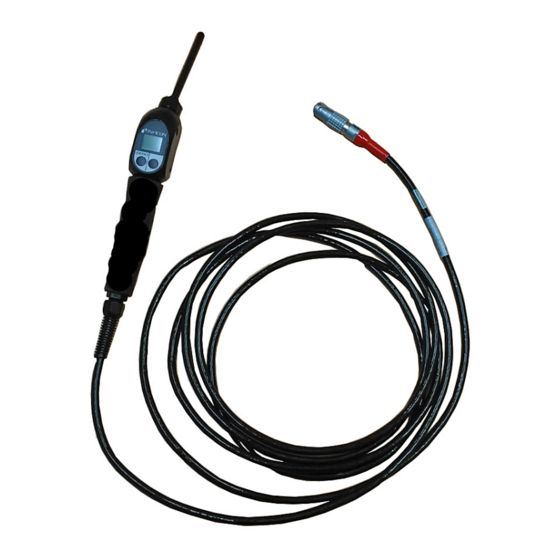

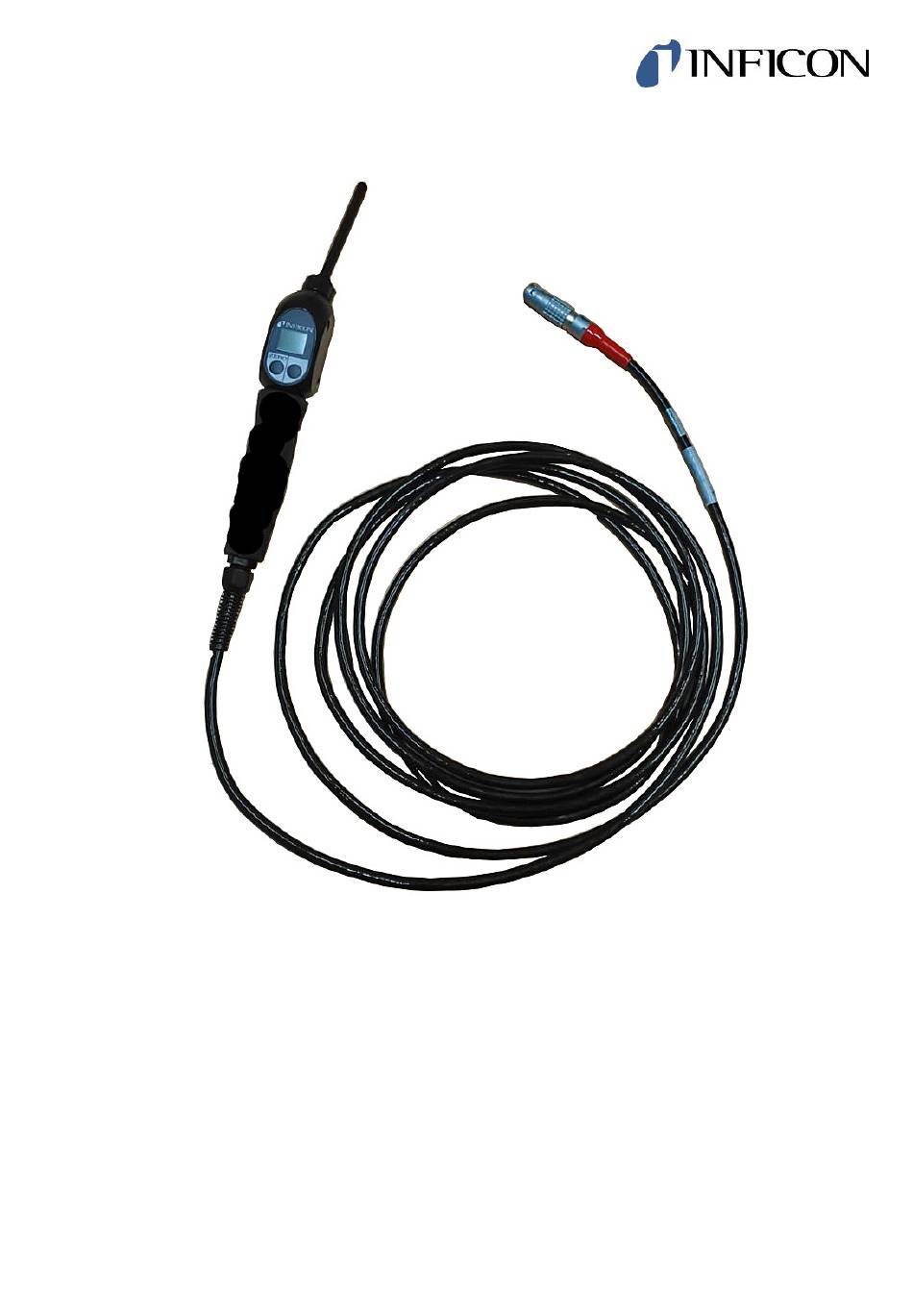

- Page 1 Translation of the original operating instructions Sniffer line SL3000 Catalog No. 525-001, 525-002, 525-003, 525-004 lina20en1-05-(2405) From software version...
- Page 2 INFICON GmbH Bonner Strasse 498 50968 Cologne, Germany...
-
Page 3: Table Of Contents
6.2 Maintenance plan........................... 15 7 Accessories and spare parts ........................ 16 8 Decommissioning ............................ 17 8.1 Disposing of the device .......................... 17 8.2 Send in Sniffer line SL3000 for maintenance, repair or disposal ............ 17 9 CE Declaration of Conformity ........................ 19 SL3000-Operating-instruction-lina10en1-05-(2405) -
Page 4: About This Manual
1 | About this manual INFICON 1 About this manual These operating instructions describe the setup and maintenance of the SL3000 sniffer line. Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights. -
Page 5: Safety
INFICON Safety | 2 2 Safety 2.1 Intended use A sniffer line type SL3000 can be used with the following leak detection systems: • Protec P3000 • Ecotec E3000 • UL3000 Fab Plus • UL3000 Fab ULTRA • UL6000 Fab Incorrect usage •... -
Page 6: Duties Of The Operator
• Always observe the complete operating instructions for all work. • If you have any questions about operation or maintenance that are not answered in this operating instructions, contact INFICON service. 2.3 Owner Requirements The following notes are for companies or any person who is responsible for the safety and effective use of the product by the user, employees or third parties. -
Page 7: Scope Of Delivery
INFICON Scope of delivery | 3 3 Scope of delivery Item Quantity Sniffer line SL3000 in ordered version and quantity. See also "Accessories and spare parts [} 16]". Operating manual SL3000-Operating-instruction-lina10en1-05-(2405) 7 / 20... -
Page 8: Description
The sniffer lines are available in different lengths and with different sniffer tips, see “Accessories and spare parts [} 16]“. The sniffer line consists of a multifunction cable, a sniffer handle and a sniffer tip. There are special sniffer lines for robot applications, see “Accessories and spare parts [} 16]“. 8 / 20 SL3000-Operating-instruction-lina10en1-05-(2405) -
Page 9: Structure Of The Sniffer Line
ZERO. For more information on the functions of these buttons, refer to the operating instructions of the leak detectors used. The sniffer handle is equipped with LEDs for work in dimly lit places. SL3000-Operating-instruction-lina10en1-05-(2405) 9 / 20... - Page 10 4 | Description INFICON Sniffer tip SL3000 Sinter filter (bronze Poral filter) Brass capillary filter O ring Metal filter Stainless steel capillary with Cotton filter adapter Sniffer tip Replacement plastic capillary filter incl. filter set Cone seal Water conservation tip...
-
Page 11: Technical Data
INFICON Description | 4 4.3 Technical data Mechanical data SL3000 Gas flow for Ecotec E3000 160 sccm for Protec P3000 300 sccm for UL3000 Fab, 160 sccm UL3000 Fab ULTRA, , UL6000 Fab ZERO via button Connection on the device Via separate socket on the device... -
Page 12: Installation
Via this connector both the electrical connection and the connection of the vacuum system is made. ü The leak detector has an interface for an SL3000 sniffer line. ü The SL3000 sniffer line is available. ► Connect the sniffer line to the leak detector. -
Page 13: Maintenance
INFICON Maintenance | 6 6 Maintenance 6.1 Maintenance SL3000 SL200 Filter kit no. 200004312 O-rings (5x) Cotton filter (50x) Sinter filter (bronze poral filter, 5x) Needle tip tool Replacement capillary filters made of plastic (5x) Change cotton filters in the sniffer tip Fig. 1: Sniffer tip SL200 with cotton filters removed... - Page 14 The necessary filters are already built in. If you want to replace a capillary filter made of brass with a capillary filter made of plastic, also remove the cone seal. See also "SL3000". Screw the new capillary filter or the water protection tip hand-tight onto the sniffer tip.
-
Page 15: Maintenance Plan
Screw the sniffer tube back on to the sniffer handle. ð The sniffer line is ready to be used again. 6.2 Maintenance plan Assembly Maintenance Work Operating hours/years (intervals are Service Spare part SL3000 repeated) level number 2000 10000 required Check the sintered Sinter filter (bronze... -
Page 16: Accessories And Spare Parts
Catalog number SL3000-3, sniffer line 3 m length 525-001 SL3000-5, sniffer line 5 m length 525-002 Sniffer line SL3000-5, 5 m length, with FTS385XL tip 521-034 SL3000-10, sniffer line 10 m length 525-003 SL3000-15, sniffer line 15 m length 525-004... -
Page 17: Decommissioning
During disposal, observe the environmental and safety regulations of your country. Device cannot be scrapped with the normal domestic waste. 8.2 Send in Sniffer line SL3000 for maintenance, repair or disposal WARNING Danger due to harmful substances Contaminated devices could endanger health. - Page 18 8 | Decommissioning INFICON 18 / 20 SL3000-Operating-instruction-lina10en1-05-(2405)
-
Page 19: Ce Declaration Of Conformity
INFICON CE Declaration of Conformity | 9 9 CE Declaration of Conformity SL3000-Operating-instruction-lina10en1-05-(2405) 19 / 20...
