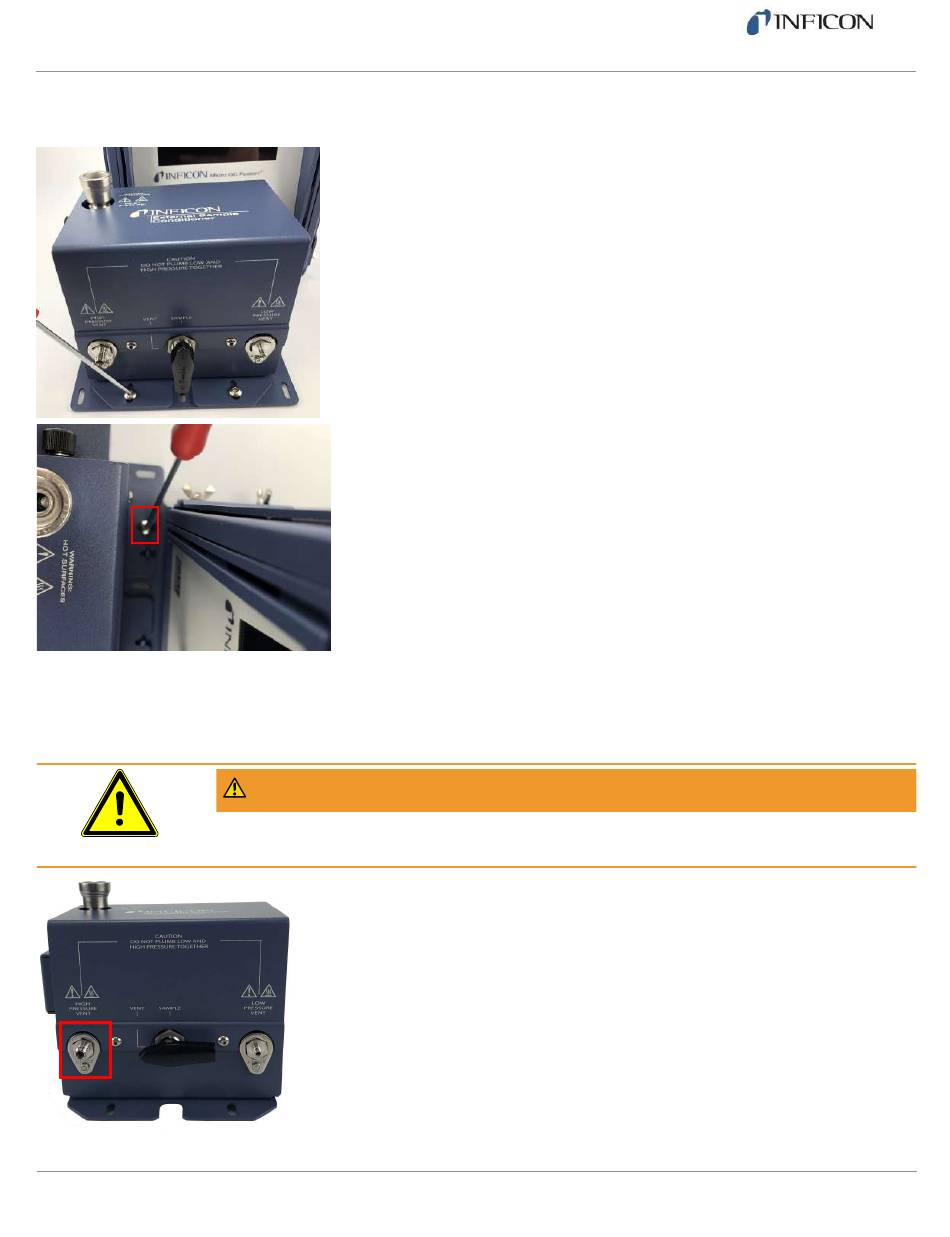

Slide the rubber insulation sleeve in place to cover the entire inlet line and nut.

Tighten the front and rear slide plate screws using the 3.0 mm hex driver.

Attach a 1/8 in. vent line to the HIGH PRESSURE VENT. Tighten it with a 7/16 in. open-ended wrench.

7 / 19

WARNING

Gas pressure on the HIGH PRESSURE PURGE VENT may be up to 5515 kPa (800 psi). Extreme caution

must be taken to avoid personal injury.

074-732-P1A Micro GC Fusion External Sample

Conditioner Installation Sheet
