External sample conditioner

Hide thumbs Also See for Micro GC Fusion:

Table of Contents

Installation Sheet

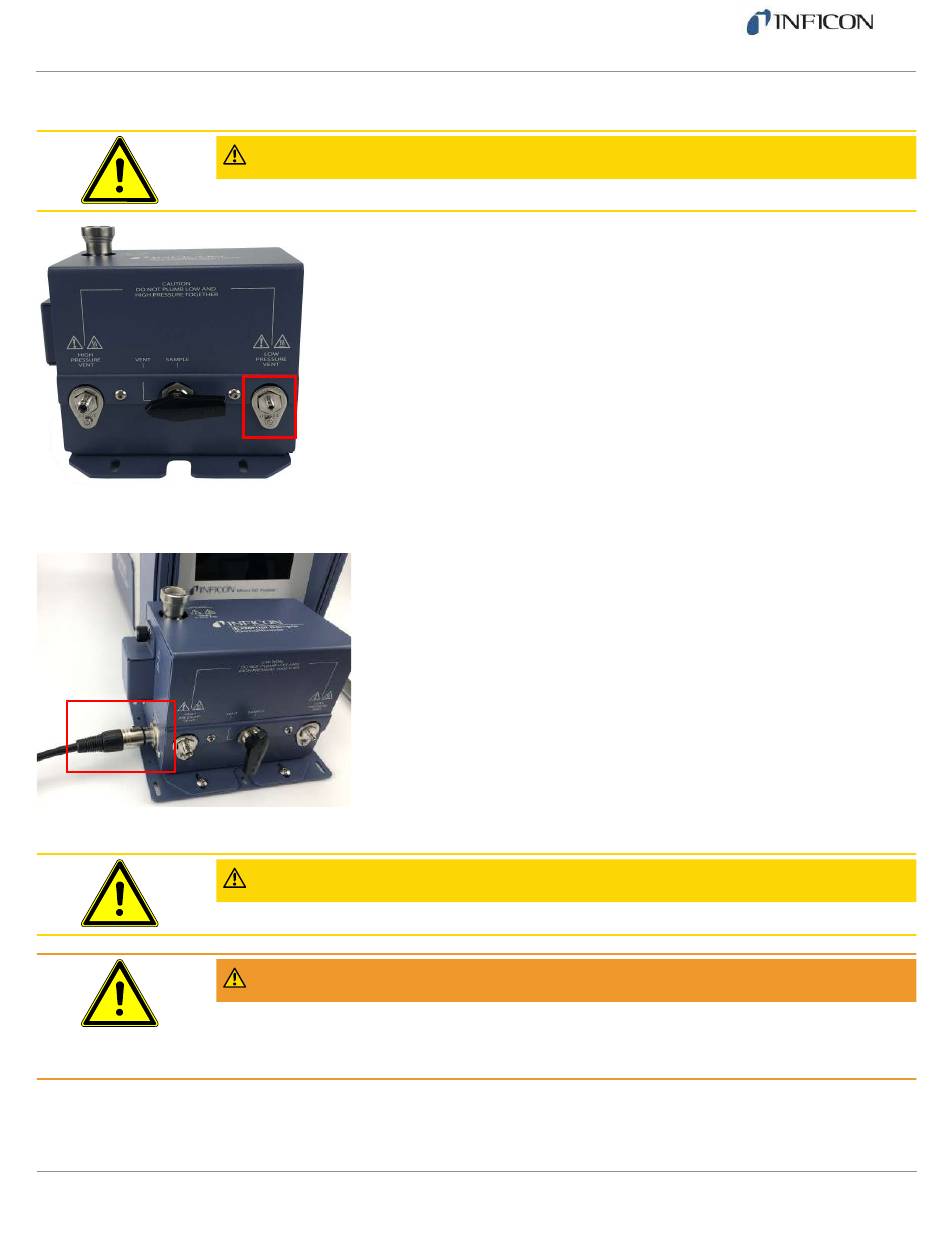

Attach a 1/16 in. vent line to the LOW PRESSURE VENT. Tighten it with a 5/16 in. open-ended wrench.

(Optional) Use the holes in the bottom bracket to mount securely to a horizontal surface. Mounting hardware is not included.

Attach the power connector to the side of the external sample conditioner.

Plug in the power cord to the power supply and connect to an AC power source.

8 / 19

CAUTION

Do not plumb low and high pressure together.

CAUTION

Only replace the power cord with proper approved cords or contact INFICON to purchase a replacement cord.

WARNING

Safely vent sample stream vent ports using the appropriate sized tubing for each connection. Potentially toxic,

noxious, asphyxiant (oxygen displacing) or flammable gasses should be vented outside Micro GC Fusion and

away from the operating area. Vent toxic gases to a fume hood, chemical trap, or reaction medium.

074-732-P1A Micro GC Fusion External Sample

Conditioner Installation Sheet
