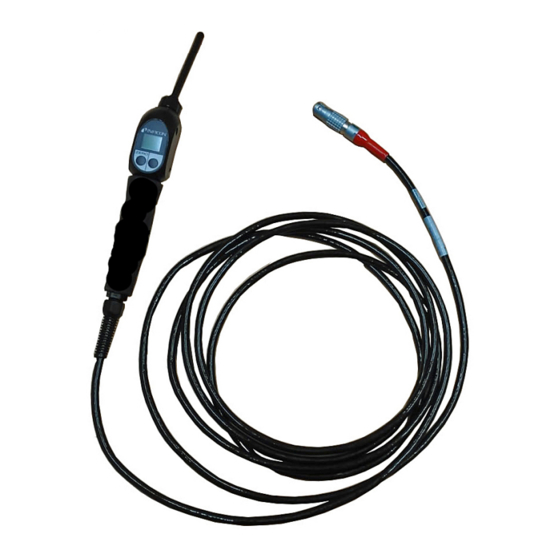

- Page 1 Translation of the original operating instructions Sniffer line SL3000XL Catalog No. 521-011, 521-012, 521-013, 521-014, 521-015, 521-034 From software version lina10en1-04-(2301)
- Page 2 INFICON GmbH Bonner Straße 498 50968 Cologne, Germany...
-
Page 3: Table Of Contents
INFICON Table of contents Table of contents 1 About this manual SL3000XL........................ 4 1.1 Target groups............................ 4 1.2 Warnings .............................. 4 2 Safety................................ 5 2.1 Intended use ............................ 5 2.2 Duties of the operator.......................... 5 2.3 Owner requirements.......................... 5 3 Scope of delivery............................ 7 4 Description.............................. -
Page 4: About This Manual Sl3000Xl
1 | About this manual SL3000XL INFICON 1 About this manual SL3000XL These operating instructions describe the setup and maintenance of the SL3000XL sniffer line. Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights. -
Page 5: Safety
INFICON Safety | 2 2 Safety 2.1 Intended use A sniffer line type SL3000XL can be used with the following leak detection systems: • Protec P3000XL • XL3000flex Incorrect usage • Use in radioactive areas • Use of accessories or spare parts, which are not included in this instruction manual •... - Page 6 2 | Safety INFICON – Intended use – Universally valid safety and accident prevention regulations – International, national and local standards and guidelines – Additional device-related provisions and regulations • Only use original parts or parts approved by the manufacturer.
-
Page 7: Scope Of Delivery
INFICON Scope of delivery | 3 3 Scope of delivery Item Quantity Sniffer line SL3000XL in ordered version and quantity. See also "Accessories and spare parts [} 15]". Operating manual SL3000XL-Operating-instruction-lina10en1-04-(2301) 7 / 20... -
Page 8: Description
4 | Description INFICON 4 Description 4.1 Function To locate leaks, move the tip of the sniffer line over places from which gas may be escaping. Depending on the design of the sniffer line, you can detect different gases. The SL3000XL sniffer line is used to locate gas leaks on test specimens in conjunction with the leak detectors: •... -
Page 9: Structure Of The Sniffer Line
INFICON Description | 4 4.2 Structure of the sniffer line Structure WARNING Risk of eye damage LEDs on the sniffer handle produce focused light that can damage the eyes. ► Do not look into the LEDs from a short distance or for longer periods of time. - Page 10 4 | Description INFICON Sniffer tip SL3000XL Sinter filter (bronze Poral filter) O ring O ring Adapter with sniffer tip Connection adapter Union nut Mounting screws Tip protection Filter Water conservation tip 10 / 20 SL3000XL-Operating-instruction-lina10en1-04-(2301)
-
Page 11: Technical Data
INFICON Description | 4 4.3 Technical data Mechanical data SL3000XL Gas flow for Protec P3000XL 300 sccm/3000 sccm for XL3000flex 300 sccm/3000 sccm ZERO via button Good-Bad-display Connection on the device Via separate socket on the device Display with measurement view... -
Page 12: Installation
5 | Installation INFICON 5 Installation For connection to the respective leak detector, the sniffer line is connected to the connection socket provided on the front or rear of the device for this purpose. Via this connector both the electrical connection and the connection of the vacuum system is made. -
Page 13: Maintenance
INFICON Maintenance | 6 6 Maintenance 6.1 Maintenance SL3000XL Overview Filter O-ring mount O ring Adapter with sniffer tip ü The sniffer tip is isolated from the sniffer handle. Assembly ü The O-ring is installed on the adapter in the intended mount. -
Page 14: Maintenance Plan
6 | Maintenance INFICON 6.2 Maintenance plan Assembly Maintenance Work Operating hours/years (intervals are Service Spare part SL3000XL repeated) level number 2000 10000 required Check the sintered Sinter filter (bronze 20003 500 filter (bronze poral poral filter) for filter) of the sniffer... -
Page 15: Accessories And Spare Parts
INFICON Accessories and spare parts | 7 7 Accessories and spare parts Sniffer line SL3000XL SL3000XL-3, sniffer line 3m length 521-011 SL3000XL-5, sniffer line 5m length 521-012 SL3000XL-10, sniffer line 10m length 521-013 SL3000XL-15, sniffer line 15m length 521-014 Sniffer tips for SL3000XL... -
Page 16: Decommissioning
8 | Decommissioning INFICON 8 Decommissioning 8.1 Disposing of the device The device can either be disposed of by the operator or be sent to the manufacturer. The device consists of materials that can be recycled. This option should be exercised to prevent waste and also to protect the environment. - Page 17 INFICON Decommissioning | 8 SL3000XL-Operating-instruction-lina10en1-04-(2301) 17 / 20...
-
Page 18: Ce Declaration Of Conformity
9 | CE Declaration of Conformity INFICON 9 CE Declaration of Conformity 18 / 20 SL3000XL-Operating-instruction-lina10en1-04-(2301)
