POWER SUPPLY

Connect Tech offers 12V 2A power supplies preconfigured for the ASG003. It is supplied by a standard
AC line cord and has a cable length of approximately 1.5m. Contact our sales department about the
MSG064 or MSG072 for more details.
Please visit https://connecttech.com/cables for drawings.

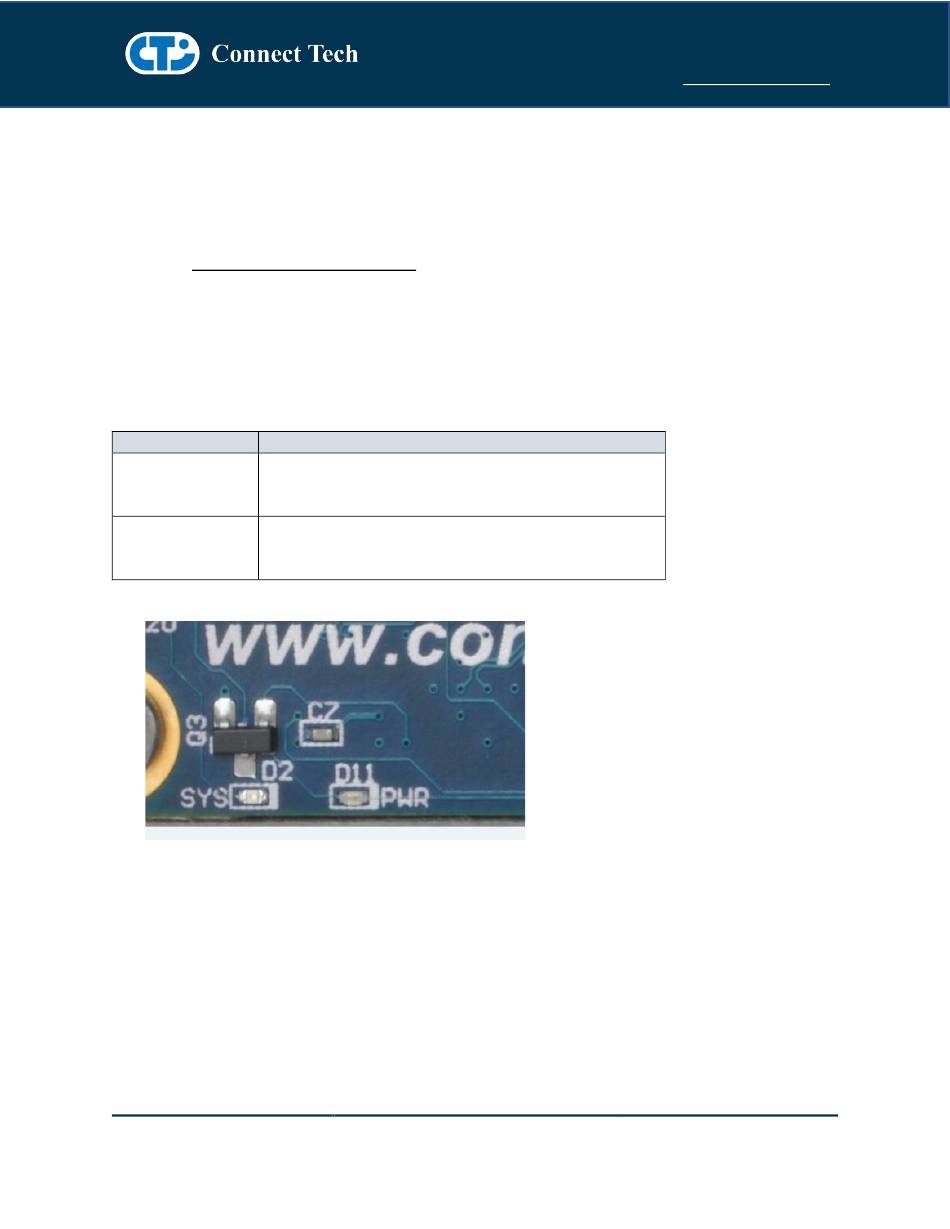

ON-BOARD INDICATOR LEDS

The Orbitty Carrier has 2 on-board indicator LEDs.
LED Designator
Description
Power Good Indicator
D11
D2
System Status Indicator
Document: CTIM-00471
Revision: 0.14
-
If this LED is ON, this indicates that all on-board
power supplies are ON and at the proper level.
-
If this LED is ON, it indicates the TX2/TX2i
module has powered ON.
Page 22 of 31
Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
www.connecttech.com
Date: 2021-10-05
Users Guide
