SWITCH DETAILS
DIP Switch Details (S1)

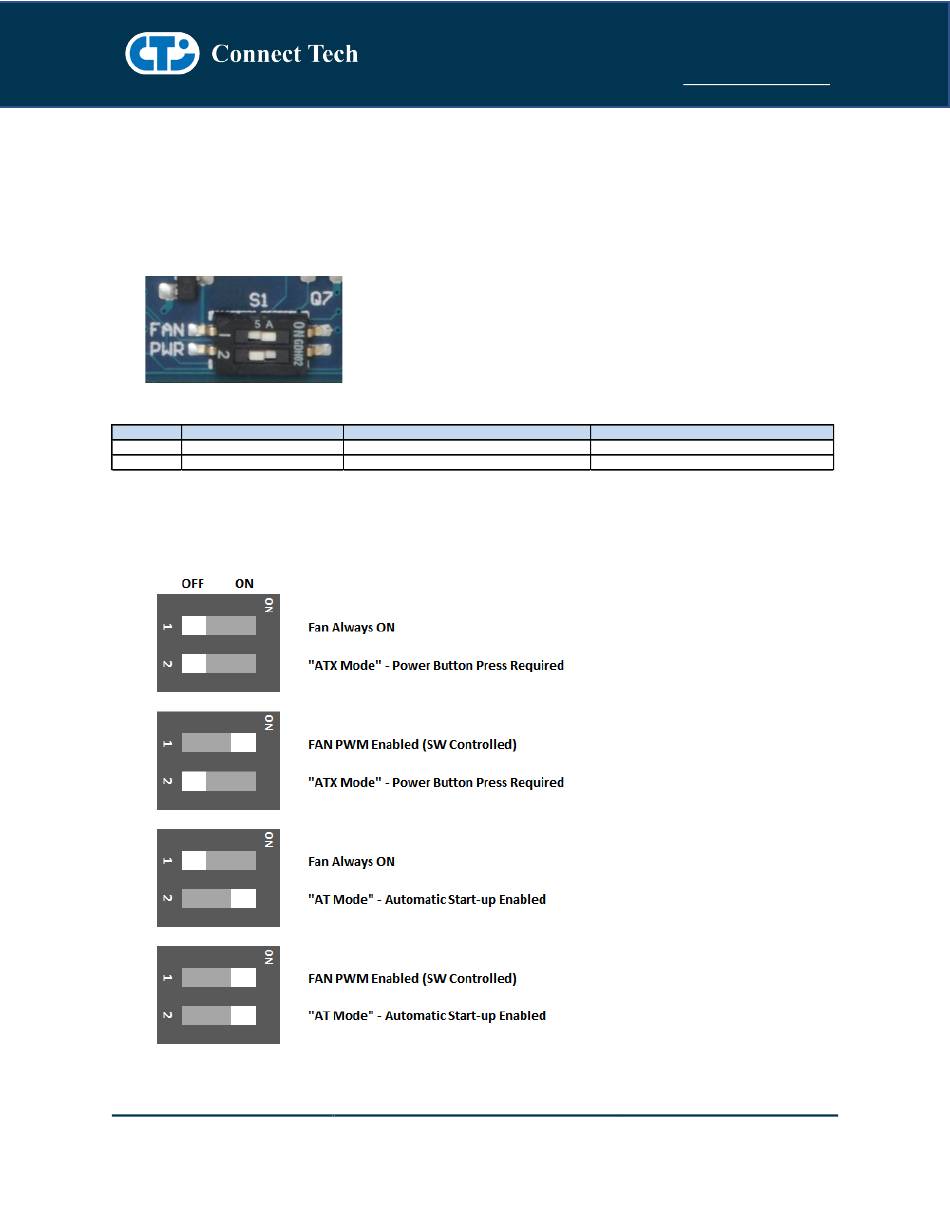

The Orbitty Carrier has a 2 position DIP switch block which controls the PWM Fan Control and the main
Power-up / Start-up Control.
Position No.
Position Description
1
PWM Fan Control
2
Power-Up / Start-up Control
S1 Usage Examples
Document: CTIM-00471
Revision: 0.14
Switch ON
FAN PWM Enabled (SW Controlled)
"AT Mode" - Automatic Start-up Enabled
Page 19 of 31
Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
www.connecttech.com
Switch OFF
FAN Always ON
"ATX Mode" - Power Button Press Required
Date: 2021-10-05
Users Guide
