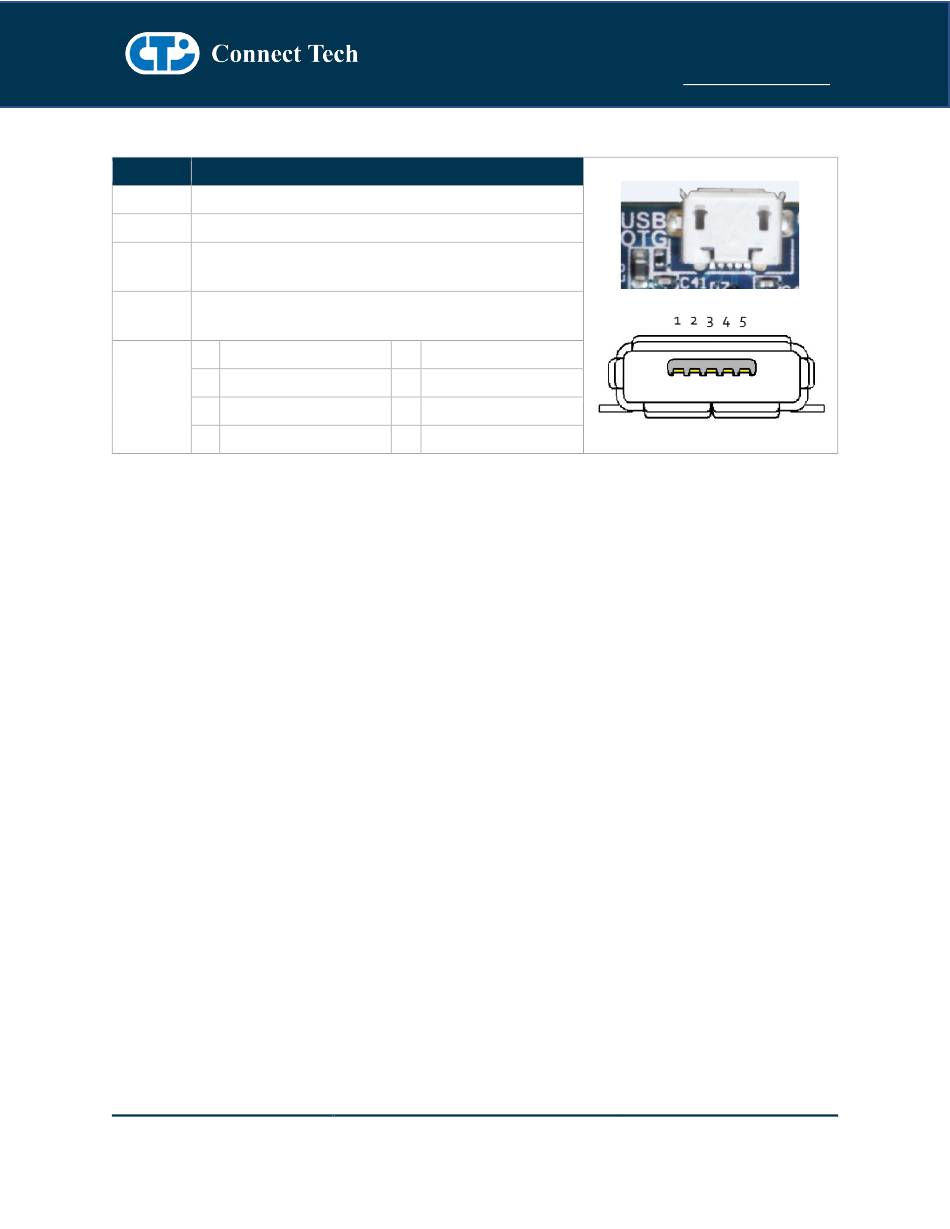

USB OTG

Function
Location P8
Type USB 2.0 Micro-AB
Carrier Part Number: 47589-0001
Connector Manufacturer: Molex
Mating Any USB 2.0 Micro A or Micro B or Cable
Connector
Pinout Pin Description
1 VBUS
3 USB 2.0 D+
5 GND
USB OTG – Host Mode
To put the USB OTG port into HOST mode, the USB ID pin needs to be left floating. Most USB Micro-A to
Type-A (Female) cables will do this internally.
USB OTG – Client Mode (Used for Image Flashing)
To put the USB OTG port into CLIENT mode, the USB ID pin needs to be tied to GND. Most USB Micro-B
cables will do this internally. Once in Client mode this port can then be connected to a Host PC. This is
required for software image flashing. Please see the Software Section of this manual for more details.
Document: CTIM-00471
Revision: 0.14
USB OTG
Pin Description
2 USB 2.0 D-
4 USB ID
