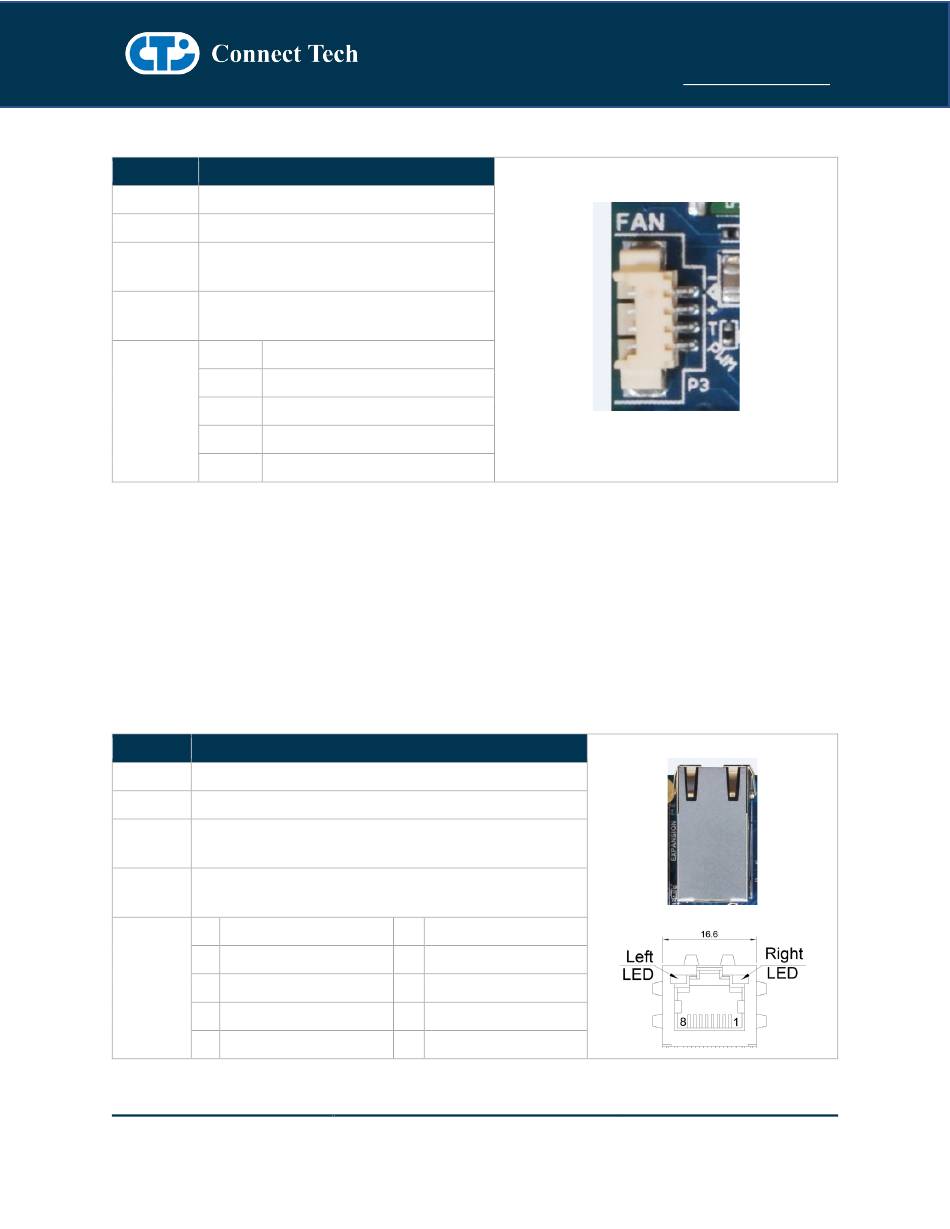

NVIDIA Jetson TX2/TX2i Fan

Function NVIDIA Jetson TX2/TX2i Fan Control
Location P4
Type Molex PicoBlade Header
P/N Part Number: 53261-0471
Manufacturer: Molex
Mating Part Number: 51021-0400
Manufacturer: Molex
Pinout Pin Description
1 GND
2 +5V
3 TACH
4 PWM
NOTE: Please note that Fan PWM (speed control) is NOT natively supported by the stock L4T builds.
If users wish to use the native builds you must enable the S1 DIP Switch to put the Fan into the Always
ON mode.
To enable PWM functionality (speed control) users must deploy CTI-L4T BSP and enable the S1 DIP
Switch to put the Fan into the PWM Enabled mode.

10/100/1000 Ethernet (GBE)

Function
Location P5
Type RJ-45 8p8c
Carrier Part Number: 1RJMG14-220LNL
Connector Manufacturer: Unicom
Mating Any RJ-45 Plug with Cat5, Cat5e, Cat6 Type Cabling
Connector
Pinout Pin Description
1 TP0+
3 TP1+
5 TP2-
7 TP3+
Document: CTIM-00471
Revision: 0.14
Gigabit Ethernet Connector
Pin Description
2 TP0-
4 TP2+
6 TP1-
8 TP3-
Page 15 of 31
