Installation (wiring diagrams, fuse selection & vehicle wiring reference charts)

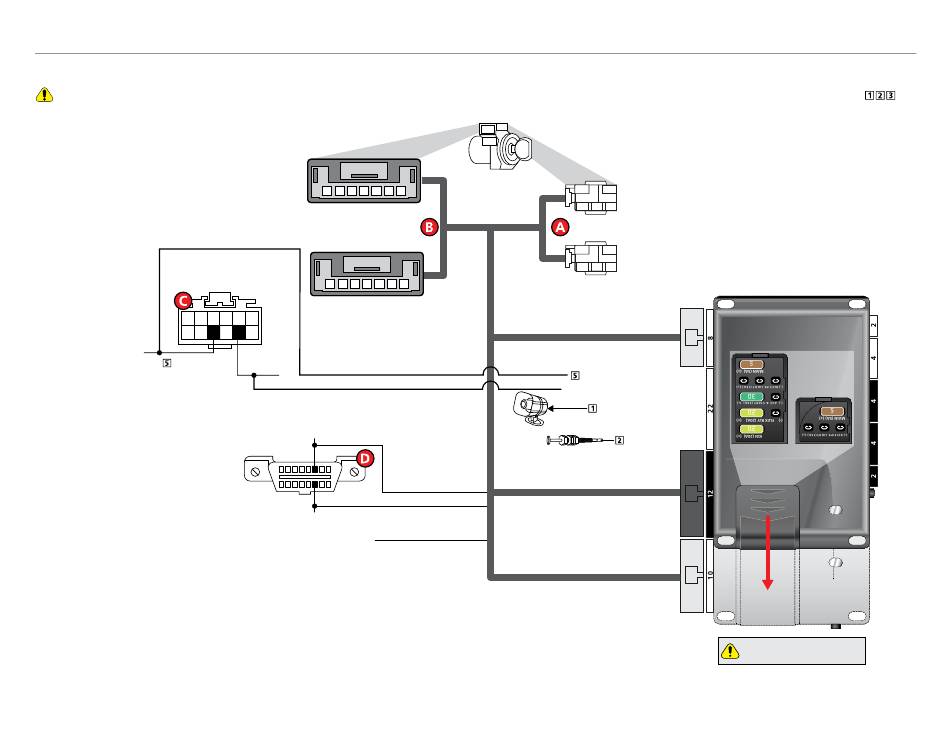

Wiring diagram with T-Harness (THHON4)
Type 1 with T-Harness (THHON4)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Headlight Switch
(Black & White conn.
at headlight)
1 2 3
7 8 9
(-) Autolights:
Red or Orange, pin 9
Diagnostic
Connector OBDII
F-CAN Low: Red or Black, pin 14
8
Immobilizer Control Unit
(Black or white conn. at steering
column around ignition cylinder)
4 5 6
10 11 12
(-) Parking Lights:
Gray, pin 11
F-CAN High: White, pin 6
1 8
9 16
FT CAN High: Orange/Green
FT CAN Low: Orange/Brown
No Connection: Violet/Brown
Ignition switch
(White conn. at
Ignition switch)
8-pin
White
conn.
(-) Autolights Output: Brown/White 6
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
(-) Hood Input: Gray: 21
THHON4
(Optional
T-Harness)
12-pin
Black
conn.
10-pin
White
conn.
).
).
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
DS4+ HONDA56
