Directed DS4+ Installation Manual page 16

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Acura ZDX (Smart Key) 2010-2013
12V White
Ignition 1 Blue
Ignition 2 Red
Accessory Orange
Parking Lights White
Autolights Pink
F-CAN High White
F-CAN Low Black
Immobilizer Data Lt. Green
PTS Violet
Starter Lt. Green
B-CAN High Pink
B-CAN Low Blue
16
Pin Polarity Location
1 (+) PCU (Power Control Unit), right steering column, bottom connector.
4 (+) PCU, right steering column, bottom connector.
3 (+) PCU, right steering column, bottom connector.
1 (+) PCU, right steering column, bottom connector.
11 (-) Headlight switch.
9 (-) Headlight switch.
6 Data OBDII.
14 Data OBDII.
10 Data Junction connector above passenger kick panel fuse box.
7 (-) PCU, right steering column.
10 (+) PCU, right steering column.
16 Data PCU, right steering column.
17 Data PCU, right steering column.

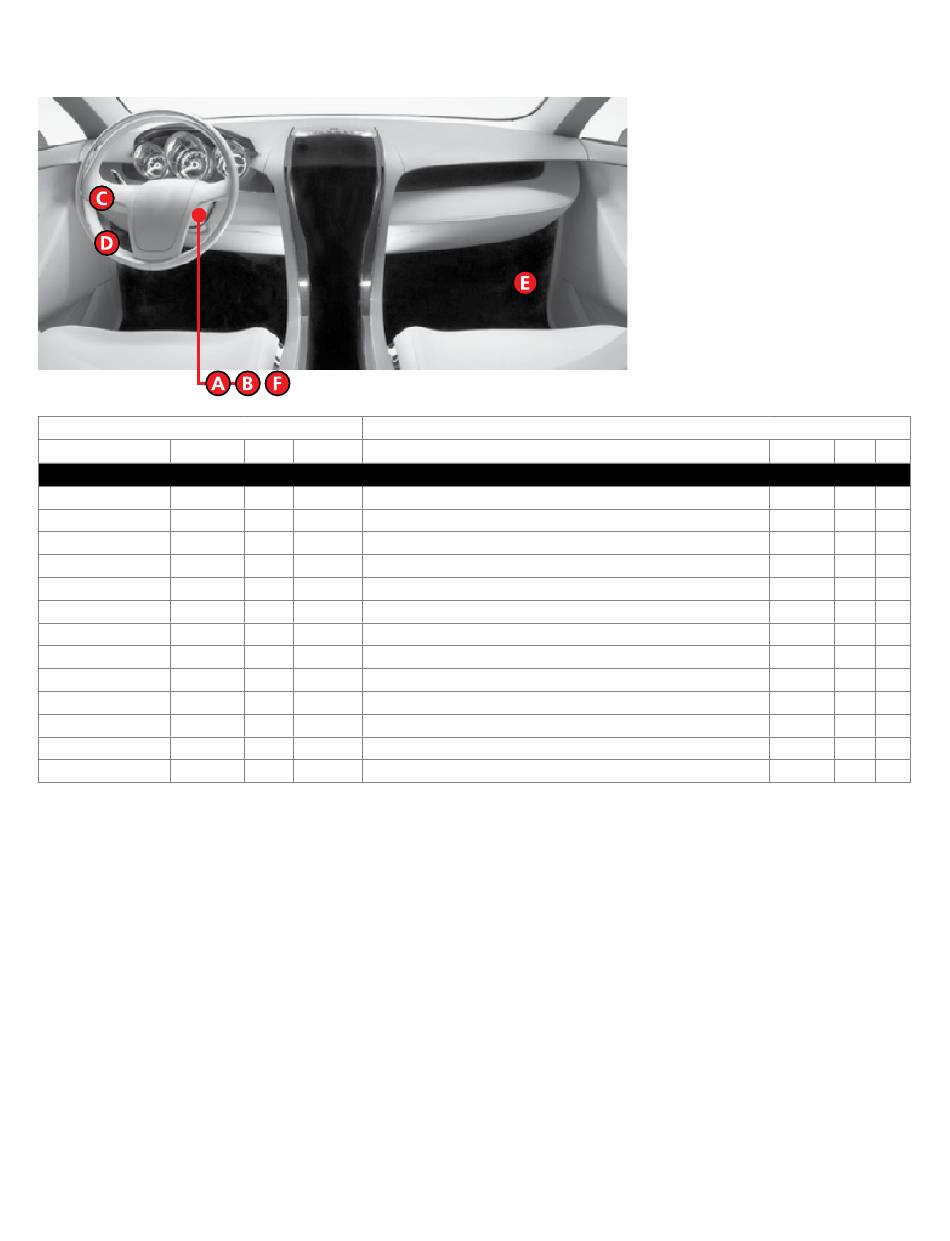

Connector Information
© 2017-11-01 Directed. All rights reserved.
Color Pins Ref.
Green 1 A
White 4 B
White 4 B
White 4 B
Black 12 C
Black 12 C
White 16 D
White 16 D
White 28 E
Lt. Blue 36 F
Lt. Blue 36 F
Lt. Blue 36 F
Lt. Blue 36 F
DS4+ HONDA56
