Type 1 - Directed DS4+ Installation Manual

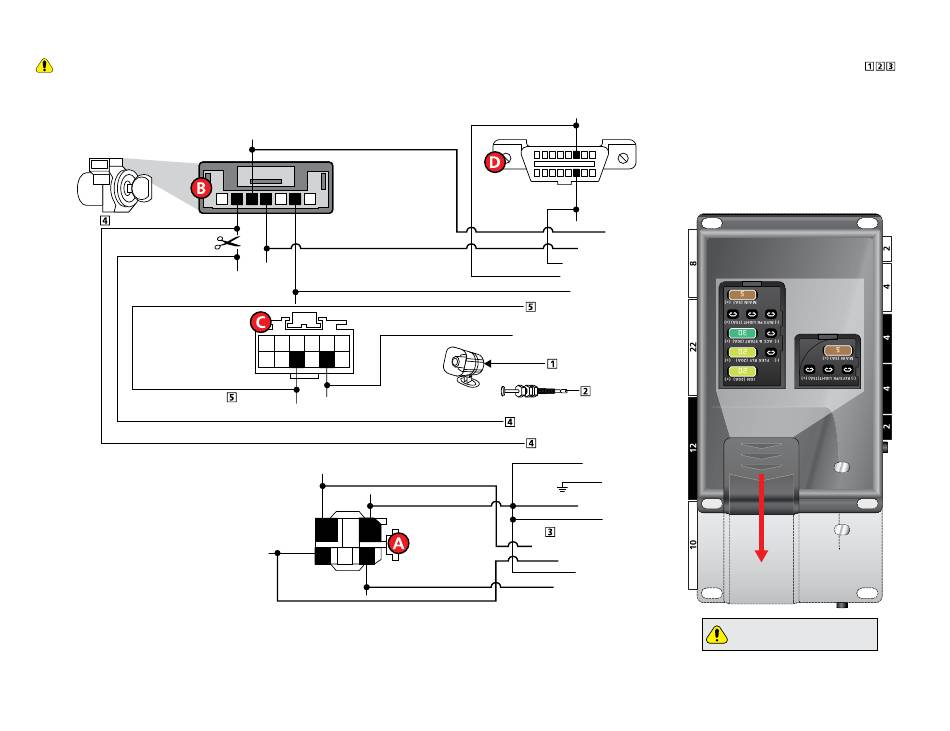

Wiring diagram

Type 1

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram (
Ignition: Yellow or Brown, pin 6
Headlight Switch
(Black & White conn.
at headlight)
9
B-CAN Low: Pin 5
Immobilizer Control Unit
(Black or White connector
at ignition cylinder)
7 6 5 4 3 2 1
B-CAN
Immo. Data:
High:
Pin 2
Cut Pin 4
1 2 3 4 5 6
7 8 9 10 11 12
(-) Parking Lights: Gray, pin 11
(-) Autolights:
Red or Orange, pin 9
(+) Starter:
(+) 12V: White, pin 1
Yellow, pin 2
2 1
5 4 3
(+) Acc.:
Orange,
(+) Ignition:
pin 5
Blue or Pink, pin 3
Diagnostic Connector OBDII
(connector side view)
F-CAN High: White, pin 6
1
9
F-CAN Low: Red
or Black, pin 14
HS CAN High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
Immo. Data: Orange/Black: 7
(-) Autolight Output: Brown/White: 6
(-) Parking Lights Output: Lt. Blue/Black: 10
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
Ignition Interrupt (veh. side): Blue/White: 1
Ignition Interrupt (conn. side): Blue: 3
(+) 12V Input: Red: 6 & 12
(+) 12V Input: Red/Black: 2
Starter Input (Key Side): Green: 6
Ign. Switch
(+) Starter Output (to starter): Violet: 7
(White conn. at
ignition cylinder)
(+) Accessory Output: Orange: 8
(+) 12V Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
8
16
HS CAN Low: Tan: 1
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(-) Ground: Black: 10
(+) 12V Input: Red: 5
Slide
to open
It is important to check that the
fuses are positioned correctly.
).
).
DS4
DS4
DS4+
DS4+ HONDA56
